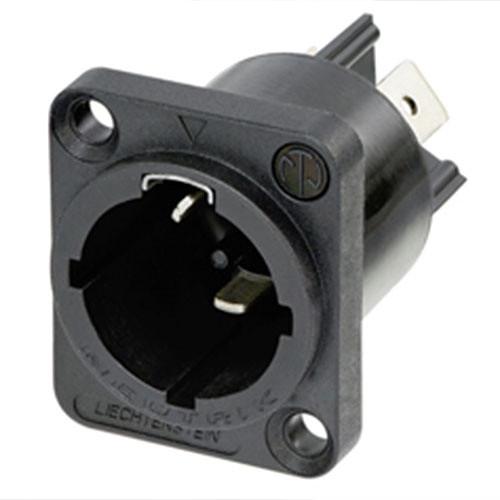

User Manual for Neutrik powerCON TRUE1 TOP Appliance Inlet Connector Click to enlarge the picture
Contents of the user manual for the Neutrik powerCON TRUE1 TOP Appliance Inlet
- Product category: Adapter Cables & Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Adapter Cables & Connectors
|
User manual for the Neutrik powerCON TRUE1 TOP Appliance Inlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|
Product description Featuring heavy-duty, sealed construction and a weatherproof IP65 rating, the powerCON TRUE1 TOP Appliance Inlet Connector from Neutrik replaces appliance couplers in applications where a robust solution is needed, such as outdoor use. This powerCON TRUE1 TOP connector offers breaking capacity (CBC), meaning that it can be connected or disconnected under a load or live. - Benefits
-
- Heavy-duty sealed power connector for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
- Uses high-impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
In the Box Neutrik powerCON TRUE1 TOP Appliance Inlet Connector Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik powerCON TRUE1 TOP Appliance Inlet Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NAC3MPX-TOP Specs | Approvals and Certifications | UL, cUL, JET, ENEC | | IP Rating | IP65 | | Locking Type | 1 /4" / 6.35 mm Flat Tab Terminals | | Electrical | Contact Resistance: ≤ 3 mOhms
Dielectric Strength: 4 kVDC / 2.8 kVAC
Insulation Resistance: > 0.1 GOhms (After Damp Heat Test IEC 68-2-30)
Number of Electronic Contacts: 2 + PE
Rated Current per Contact: 16 A rms (USA: 20 A)
Rated Voltage: 250 VAC | | Terminals | 1 /4" Flat Tab Terminals | | Mechanical | Cable O.D.: 6-12 mm
Lifetime: > 5000 Mating Cycles
Wire Size: 1-2.5 mm
