User Manual for Neutrik STX Series speakON 4-Pole Male Connector Click to enlarge the picture
Contents of the user manual for the Neutrik STX Series speakON 4-Pole Male
- Product category: Audio Connectors Neutrik
- Brand: Neutrik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neutrik Audio Connectors
|
User manual for the Neutrik STX Series speakON 4-Pole Male contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neutrik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neutrik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neutrik product will considerably shorten its lifespan!
|

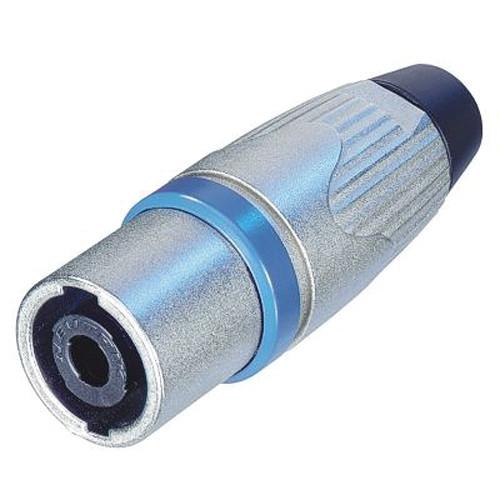

Product description The Neutrik STX Series Four-Pole Male speakON Connector is designed for heavy-duty amplifier-loudspeaker applications and is suitable for use in live touring. The unit features an all metal housing, giving it a current rating of 40A continuous. Its sealing ring offers an IP54 rating in its mated state, making it virtually weatherproof. Its quick-lock system is fashioned out of reinforced metal for precision in the mating process, while its large solder contacts are compatible with wires up to 10 AWG. Note: speakON is not to be used as an AC mains or power supply connector. - Current rating 40 A (continuous), 50 A (audio with 50% duty cycle)
- Robust and durable all-metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for easy and precise locking
- Large solder contacts for up to 6mm² (AWG 10) wires
In the Box Neutrik STX Series speakON 4-Pole Male Connector Limited 180-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik STX Series speakON 4-Pole Male Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeutrik NLT4MX Specs | Connection Type | speakON | | Gender | Male | | | | Contact Resistance | ≤2 mOhms (after lifetime) | | Dielectric Strength | 4 kVDC (peak) | | Insulation Resistance | >10 GOhms | | Rated Current Per Contact | 40 A RMS (continuous)
50 A audio signal, duty cycle 50 % | | Rated Voltage | 250 V (insulation) | | | | Cable O.D. | 0.4 to 0.6" / 9 to 16 mm | | Cable Retention | ≥220 N (subject to cable O.D. and material) | | Lifetime | >5000 mating cycles | | Wire Size | 6 mm², 10 AWG | | Wiring | Solder contacts | | Locking Device | Quick-lock (latch) | | | | Contact Plating | 4 µm Ag | | Contacts | Brass (CuZn39Pb3) | | Insert | Polyamide (PA 6 30 % GR) | | Locking Element | Zinc diecast (ZnAl4Cu1) | | Shell | Zinc diecast (ZnAl4Cu1) | | Strain Relief | Polyacetal (POM) | | | | Flammability | UL 94 HB | | Protection Class | IP54 (mated condition) | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176°F / -30 to 80°C | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.0 x 1.55 x 1.5" |
