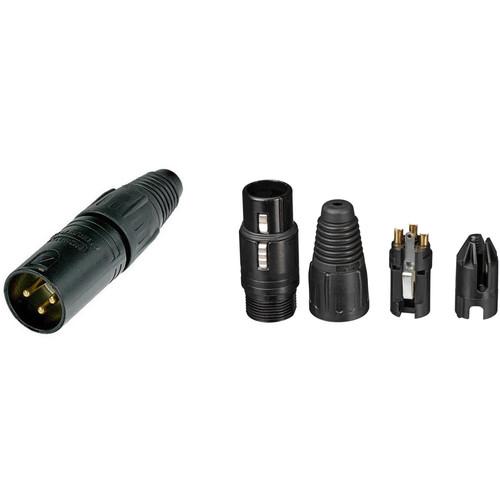

Product description The Neutrik X-Series Male and Female XLR Connectors Kit is a Kit featuring the company's X series XLR cable connectors in a black housing. Both the male and female connector feature gold contacts. - Neutrik NC3MXB 3-Pin Gold-Plated XLR Connector The Neutrik NC3MXB is a black three-pin gold-plated male XLR connector for soldered terminations of three-conductor audio cables.
- Neutrik NC3FX-B 3-Pin Female XLR Connector The Neutrik NC3FX-B is a three-pin female XLR connector with black metal housing and gold contacts. It features a rugged design with a sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
In the Box - NC3MXB 3-Pin Gold-Plated XLR Connector
- Limited 6-Month Warranty
- NC3FX-B Three-Pin Female XLR Connector- Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Neutrik X-Series Male and Female XLR Connectors Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Neutrik NC3MXB 3-Pin Gold-Plated XLR Connector
| | | Box Dimensions (LxWxH) | 2.0 x 1.2 x 0.8" | - Neutrik NC3FX-B 3-Pin Female XLR Connector
| | | Connection Type | XLR | | Gender | Female | | | | Capacitance | ≤4 pF | | Contact Resistance | ≤3 mΩ (inner) | | Dielectric Strength | 1.5 kVDC | | Insulation Resistance | > 10 Gohm (initial) | | Rated Current Per Contact | 16 A | | Rated Voltage | 50 V | | | | Cable O.D. | 3.5 to 8 mm | | Insertion Force | ≤20 N | | Withdrawal Force | ≤20 N | | Lifetime | >1000 mating cycles | | Wire Size | Maximum 2.5 mm²
Maximum 14 AWG | | Wiring | Solder contacts | | Locking Device | Latch lock | | | | Boot | Polyurethane | | Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni | | Contacts | Bronze (CuSn8) | | Locking Element | St3K32 (latch) / Ck 67 (spring) | | Insert | Polyamide (PA 6.6 30 % GR) | | Shell | Zinc diecast (ZnAl4Cu1) | | Shell Plating | Black chromium | | Strain Relief | Polyacetal (POM) | | Sealing | Jacket: EPDM | | | | Approvals | UL | | Flammability | UL 94 HB | | Standard Compliance | IEC 61076-2-103 | | Protection Class | IP 65 | | Safety | EN/IEC 61984 | | Solderability | Complies with IEC 68-2-20 | | Temperature Range | -22 to 176° F (-30 to 80°C) | | | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 0.25" |
