User Manual for NewBlueFX Titler Live 4 Broadcast Click to enlarge the picture
Contents of the user manual for the NewBlueFX Titler Live 4 Broadcast
- Product category: Video Editing Plug-Ins NewBlueFX
- Brand: NewBlueFX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewBlueFX Video Editing Plug-Ins
 |
User manual for the NewBlueFX Titler Live 4 Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewBlueFX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewBlueFX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewBlueFX product will considerably shorten its lifespan!
|
Product description NewBlueFX Titler Live 4 Broadcast combines the features of all the other Titler Live 4 versions and increases the number of output channels to 16 and the output resolution to Ultra HD 4K. Moreover, it allows you to deliver unlimited layers of dynamic 3D animated on-air graphics per channel. Titler Live 4 Broadcast is a complete solution for professional broadcasters.
Titler Live 4 Broadcast lets you automate your data. The comprehensive feature set provides support for on-air graphics driven from Excel spreadsheets, CSV files, RSS feeds, clocks, and more, allowing you to streamline your presentations with dynamic graphics. It allows you to connect to scoreboard data from Daktronics (via NewTek DataLink), Stat Crew, or Sportzcast to streamline your pre-game prep and enhance your sports broadcasts. And it lets you integrate all your social media from Facebook Live, Twitter, and YouTube Live into one feed so you can showcase comments, posts, tweets, and Facebook comment and reaction polling during your presentation. You can also control your graphics with an API to customize your workflows and incorporate any of your information.
Titler Live 4 Broadcast is Mac and Windows compatible and integrates with any workflow using an NDI input switcher, an HDMI input keying switcher, and any switcher with SDI key and fill inputs. (For SDI workflows, an I/O card with two SDI outputs and a built-in keyer is required for splitting your image into key and fill images and sending out key and fill separately. Please see more information in the Features section below.) The application also easily integrates with leading streaming solutions, including Wirecast, NewTek, Broadcast Pix, EVS, Lumantek, vMix, Blackmagic Design, Roland, Panasonic, and more.
Included is a full suite of main titles, lower thirds, motion bugs, tables, crawls, scoreboards, break scores, designs for social media comments and polling, and other ready-to-use designs that you can customize. You can also import your own graphics from Adobe After Effects and Photoshop. New features include drag-and-drop variable control and text/color/image design control. - Output
-
- 16 channels
- Unlimited graphics per channel
- Unlimited graphics per playlist
- 4K NDI
- 4K SDI key/fill
- PNG sequence support (New)
- HDMI
- OBS
- Watch folder
- NewTek Airsend
- Input
-
- Excel spreadsheets (New)
- Spreadsheet table support (New)
- XML files (New)
- CSV spreadsheets
- Clocks
- Text files
- RSS feeds

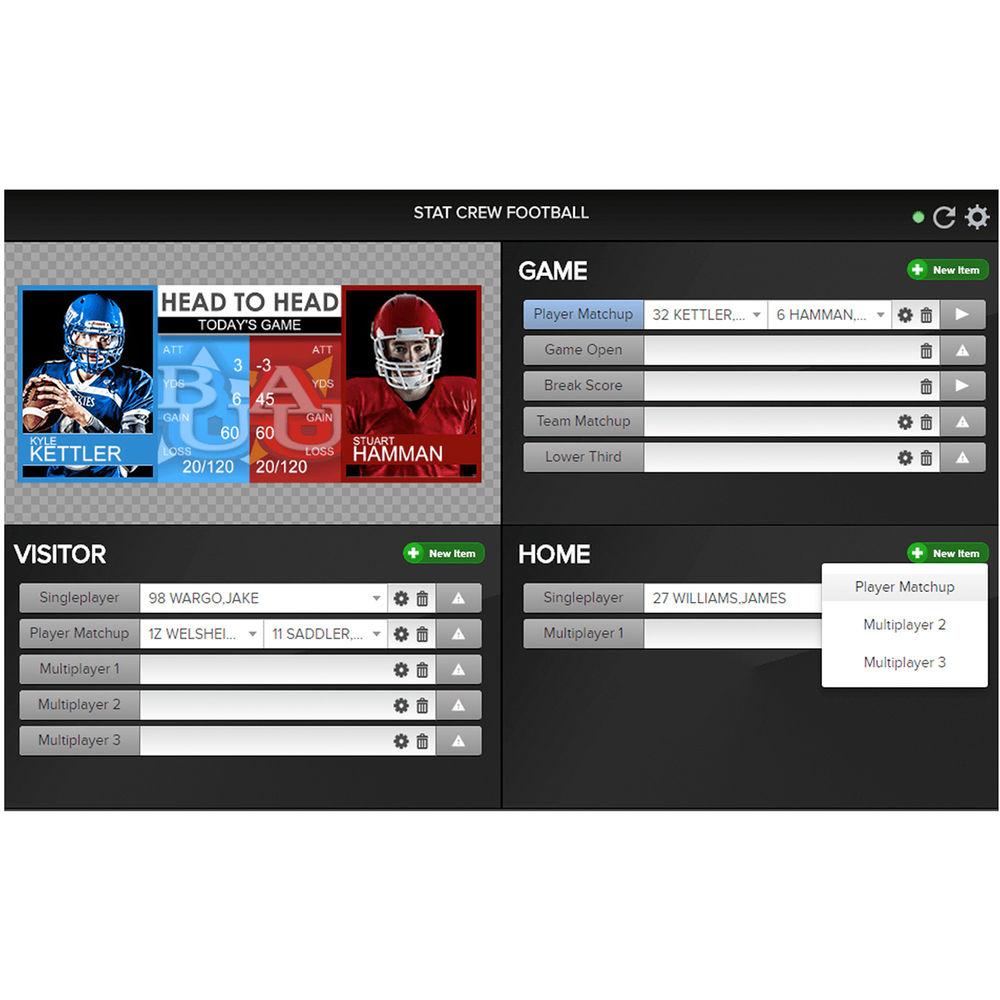

- Stat Crew statistics - football (New)
- Stat Crew scoreboards
- Daktronics scoreboards
- Sportzcast scoreboards
- Facebook Live comments
- Facebook Live comment polling
- Facebook Live reaction polling
- Twitter tweets
- YouTube Live chats
- GameWisp
- Stream labels
- Streamlabs
- Tiltify
- Twitch
- Control
-
- Real-time playout
- Live animated updates per layer
- Automated sequencing and looping
- Data search and select tool (New)
- TriCaster macro control
- Remote operation over NDI
- Network tally support
- Design
-
- 3D animated graphics
- Animations, effects, and transitions
- Native 4K resolution
- Adobe After Effects import
- Adobe Photoshop import

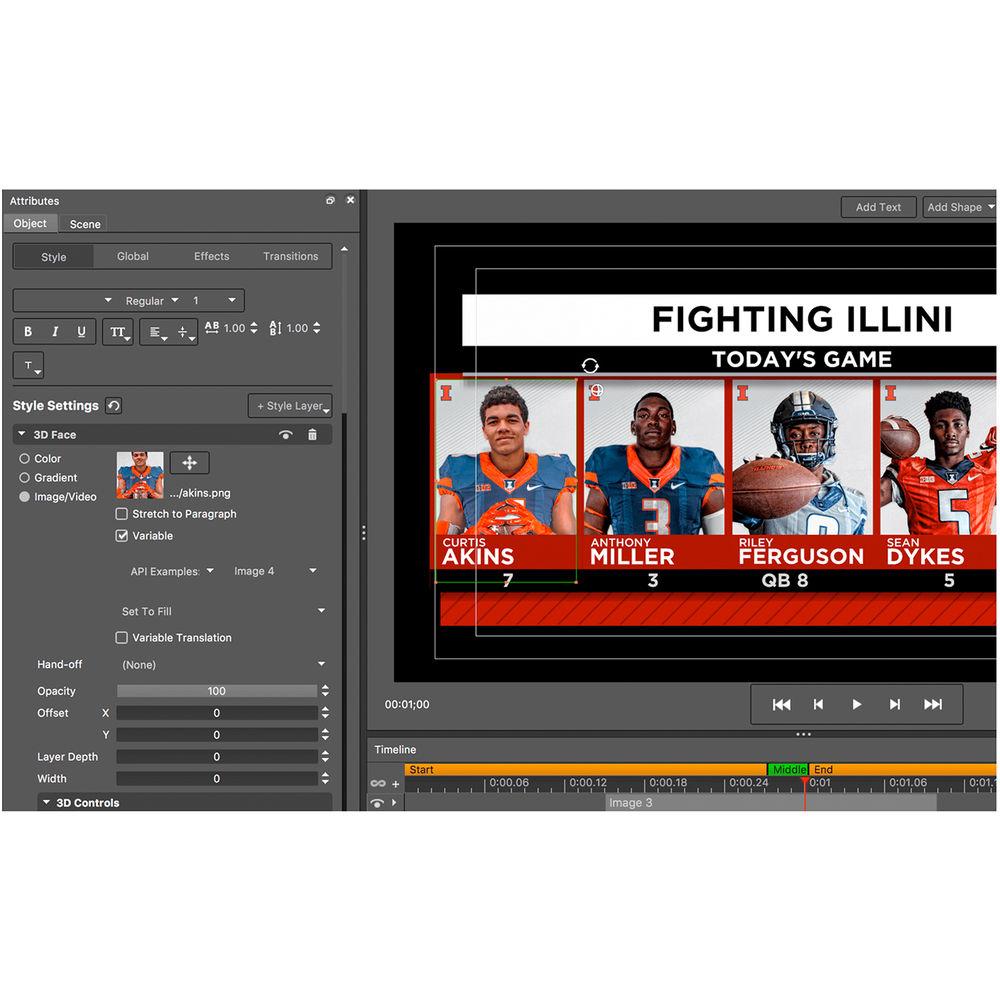

- Title Designer interface
- Sports and scoreboard packages (New)
- Social media and polling packages (New)
- Tables (New)
- Lower thirds (New)
- Crawls (New)
- Main titles
- Motion bugs
- New Input Library
- Quickly add input-driven designs to your playlist. Easily control which input is connected to a design to fit any workflow.
- New Variable Control
- Drag and drop variable connections onto any part of a design to repurpose it as you need. You can even connect multiple inputs to a design.
- New Design Control
- Flexibly edit text, color, and images directly in a design and quickly preview your changes before taking them live.
- Supported SDI I/O Cards
- For SDI output, Titler Live 4 requires two SDI outputs to send out key and fill separately. It also requires a built-in keyer in the device to be able to split the Titler Live image into key and fill images. Please note, many SDI I/O cards have a Reference or Genlock connector, which Titler Live 4 does not use at all.
Titler Live 4 supports Blackmagic Design I/O cards on Mac and Windows, and AJA cards on Windows only. Blackmagic cards must have 10.9.12 or newer drivers. Other cards may be supported; please check with NewBlueFX to confirm.
Supported Blackmagic Design SDI Cards
- DeckLink Duo 2
- DeckLink Quad 2
- DeckLink 4K Extreme
- UltraStudio HD Mini
Supported AJA SDI Cards
Table of Contents
|
Upload User Manual
Have you got an user manual for the NewBlueFX Titler Live 4 Broadcast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewBlueFX Titler Live 4 Broadcast Specs | | | Delivery Method | Download | | Version | Standard | | Number of Users Supported | 1 | | | | Supported Operating Systems | macOS X 10.1 or Later
Windows 7 or Later | | Memory Requirement | 4 GB (8 GB Recommended) | | Storage Requirement | 1.82 GB | | CPU Requirement | 2 GHz Dual-Core and Faster | | VRAM Requirement | 1 GB (Minimum)
2 GB (Recommended) | | OpenGL Graphics Requirement | 2.1 |
