Product description NewBlueFX Titler Live 4 Present adds a new dimension of flexibility to your live events and presentations. Titler Live 4 Present provides support for on-air graphics driven from Excel spreadsheets, CSV files, RSS feeds, clocks, and more, allowing you to streamline your presentations with dynamic graphics. You can quickly connect your graphics to these sources to simplify your pre-show preparation and cut production time.
Titler Live 4 Present supports up to 1080p resolution output. Higher resolution graphics may be imported but will be resized to 1080p for output. The application is Mac and Windows compatible and integrates with any workflow using an NDI input switcher, an HDMI input keying switcher, and any switcher with SDI key and fill inputs. (For SDI workflows, an I/O card with two SDI outputs and a built-in keyer is required for splitting your image into key and fill images and sending out key and fill separately. Please see more information in the Features section below.) Titler Live 4 Present also easily integrates with leading streaming solutions, including Wirecast, NewTek, Broadcast Pix, EVS, Lumantek, vMix, Blackmagic Design, Roland, Panasonic, and more.

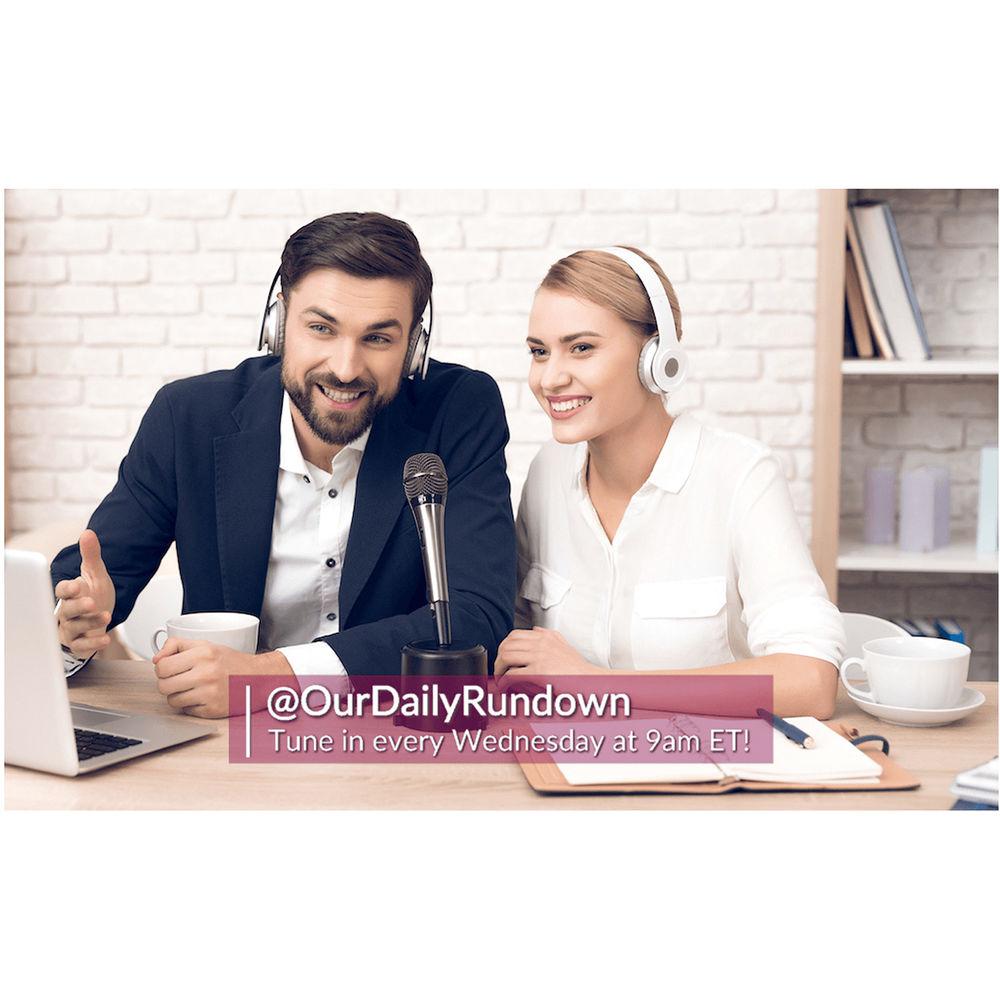

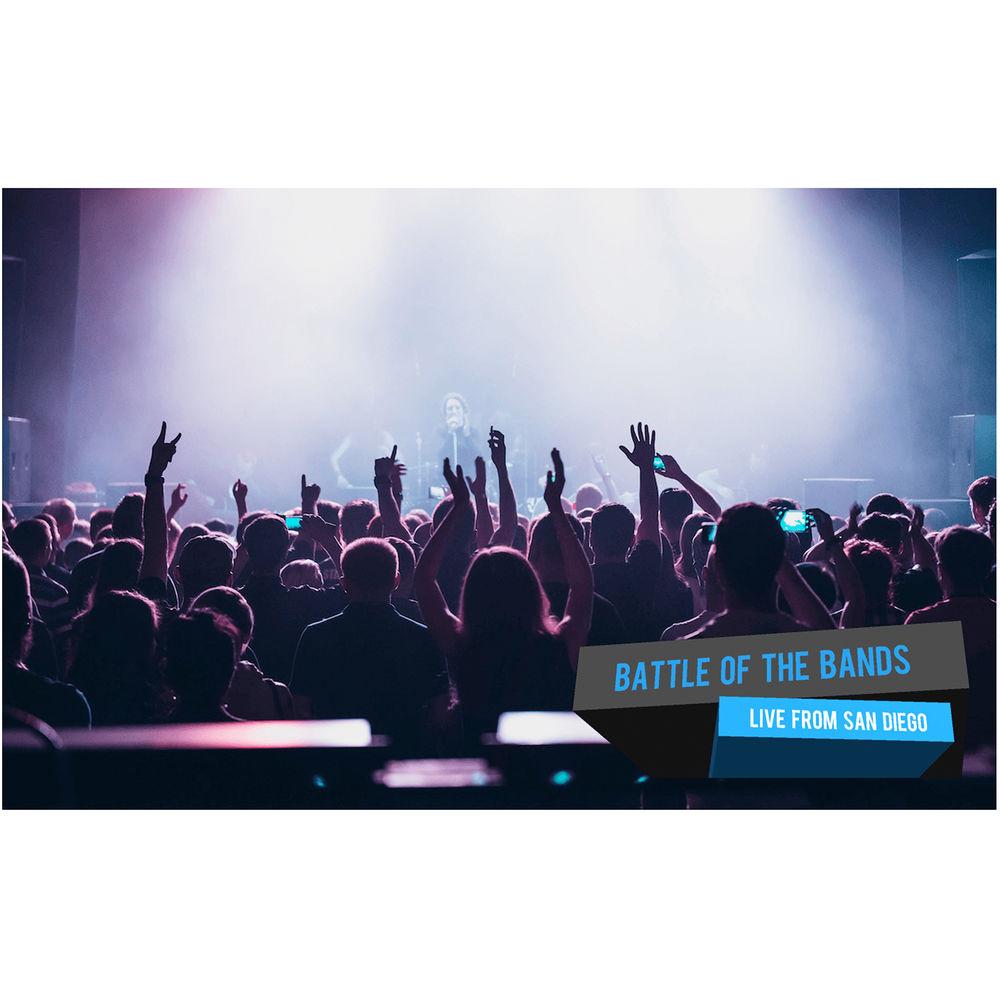

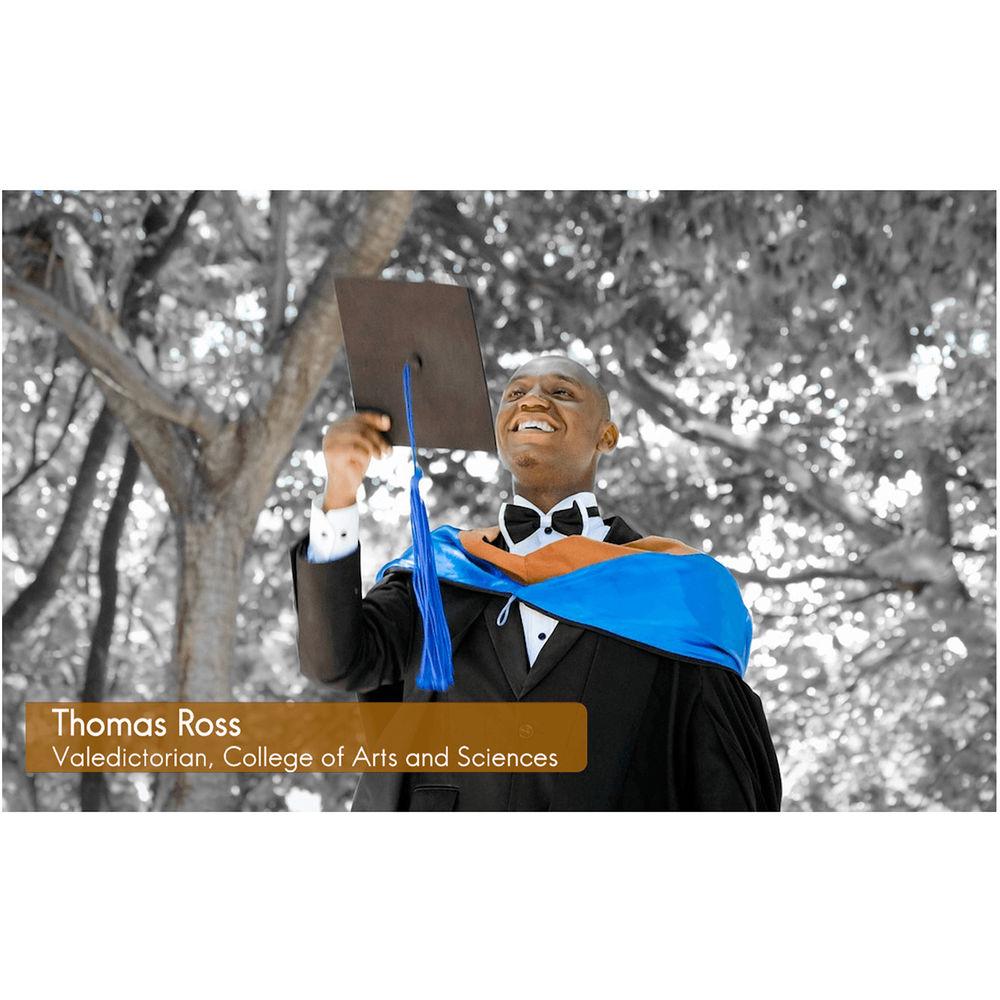

Titler Live 4 Present features a full suite of main titles, lower thirds, motion bugs, and other ready-to-use designs that you can customize. You can also import your own graphics from Adobe Photoshop. New features include an input library, drag-and-drop variable control, and text/color/image design control. - Output
-
- Up to 1080p resolution
- 1 channel
- 1 graphic per channel
- 15 graphics per playlist
- NDI
- SDI key/fill
- HDMI
- OBS
- Watch folder
- Input
-
- Excel spreadsheets (New)
- CSV spreadsheets
- Text files
- RSS feeds
- Clocks
- Facebook Live comments
- Control
-
- Real-time playout
- Live animated updates per layer
- Remote operation over NDI
- Network tally support
- Design
-
- 3D animated graphics
- Animations, effects, and transitions
- Adobe Photoshop import
- Title Designer interface
- Lower thirds (New)
- Crawls (New)
- Main titles
- Motion bugs
- New Input Library
- Quickly add input-driven designs to your playlist. Easily control which input is connected to a design to fit any workflow.
- New Variable Control
- Drag and drop variable connections onto any part of a design to repurpose it as you need. You can even connect multiple inputs to a design.
- New Design Control
- Flexibly edit text, color, and images directly in a design and quickly preview your changes before taking them live.
- Supported SDI I/O Cards
- For SDI output, Titler Live 4 requires two SDI outputs to send out key and fill separately. It also requires a built-in keyer in the device to be able to split the Titler Live image into key and fill images. Please note, many SDI I/O cards have a Reference or Genlock connector, which Titler Live 4 does not use at all.
Titler Live 4 supports Blackmagic Design I/O cards on Mac and Windows, and AJA cards on Windows only. Blackmagic cards must have 10.9.12 or newer drivers. Other cards may be supported; please check with NewBlueFX to confirm.
Supported Blackmagic Design SDI Cards
- DeckLink Duo 2
- DeckLink Quad 2
- DeckLink 4K Extreme
- UltraStudio HD Mini
Supported AJA SDI Cards
Table of Contents
|
Upload User Manual
Have you got an user manual for the NewBlueFX Titler Live 4 Present in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewBlueFX Titler Live 4 Present Specs | | | Delivery Method | Download | | Version | Standard | | Number of Users Supported | 1 | | | | Supported Operating Systems | macOS X 10.1 or Later
Windows 7 or Later | | Memory Requirement | 4 GB (8 GB Recommended) | | Storage Requirement | 953 MB | | CPU Requirement | 2 GHz Dual-Core and Faster | | VRAM Requirement | 1 GB (Minimum)
2 GB (Recommended) | | OpenGL Graphics Requirement | 2.1 |
