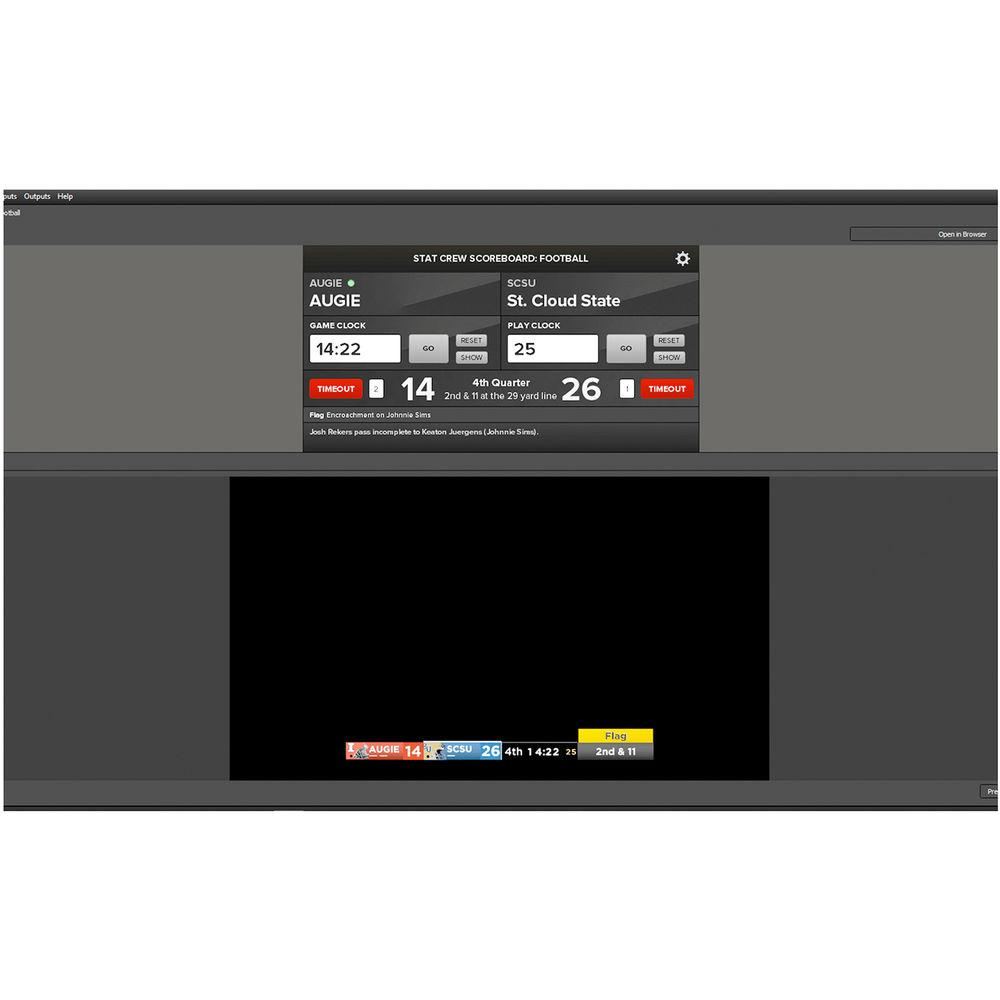

Product description NewBlueFX Titler Live 4 Sport enables you to streamline your workflow and easily deliver dynamic scoreboard graphics for all your games. Titler Live 4 Sport allows you to connect to scoreboard data from Daktronics (via NewTek DataLink), Stat Crew, or Sportzcast to streamline your pre-game prep and enhance your sports broadcasts.
Titler Live 4 Sport supports up to 1080p resolution output. Higher resolution graphics may be imported but will be resized to 1080p for output. The application is Mac and Windows compatible and integrates with any workflow using an NDI input switcher, an HDMI input keying switcher, and any switcher with SDI key and fill inputs. (For SDI workflows, an I/O card with two SDI outputs and a built-in keyer is required for splitting your image into key and fill images and sending out key and fill separately. Please see more information in the Features section below.) Titler Live 4 Sport also easily integrates with leading streaming solutions, including Wirecast, NewTek, Broadcast Pix, EVS, Lumantek, vMix, Blackmagic Design, Roland, Panasonic, and more.
Titler Live 4 Sport features a full suite of scoreboards, lower thirds, break scores, motion bugs, and more. You can also import your own graphics from Adobe Photoshop. New features include a library of customizable scoreboard-driven designs, drag-and-drop scoreboard control, and text/color/image design control. - Output
-
- 1 channel
- 1 graphic per channel
- 15 graphics per playlist
- NDI
- SDI key/fill
- HDMI
- OBS
- Watch folder
- Input
-
- Daktronics scoreboards
- Stat Crew scoreboards
- Sportzcast scoreboards
- Clocks
- Facebook Live comments
- Control
-
- Real-time playout
- Live animated updates per layer
- Remote operation over NDI
- Network tally support
- Design
-
- 3D animated graphics
- Animations, effects, and transitions
- Adobe Photoshop import
- Title Designer interface
- Sports and scoreboard packages (New)
- New Sports Library
- Quickly add scoreboard-driven designs to your playlist. Easily control which input is connected to a design to fit any workflow.
- New Scoreboard Control
- Drag and drop variable connections onto any part of a design to repurpose it as you need. You can even connect multiple inputs to a design.

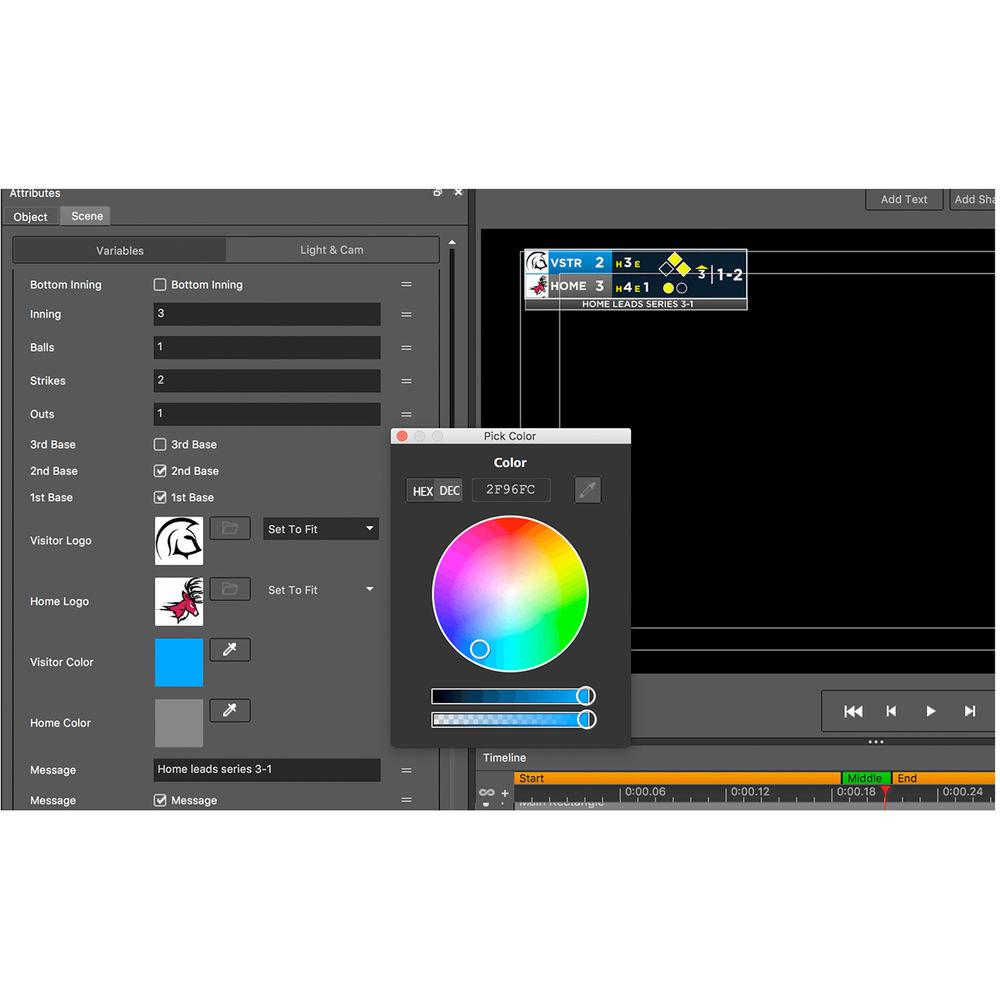

- New Design Control
- Flexibly edit text, color, and images directly in a design and quickly preview your changes before taking them live.
- Supported SDI I/O Cards
- For SDI output, Titler Live 4 requires two SDI outputs to send out key and fill separately. It also requires a built-in keyer in the device to be able to split the Titler Live image into key and fill images. Please note, many SDI I/O cards have a Reference or Genlock connector, which Titler Live 4 does not use at all.
Titler Live 4 supports Blackmagic Design I/O cards on Mac and Windows, and AJA cards on Windows only. Blackmagic cards must have 10.9.12 or newer drivers. Other cards may be supported; please check with NewBlueFX to confirm.
Supported Blackmagic Design SDI Cards
- DeckLink Duo 2
- DeckLink Quad 2
- DeckLink 4K Extreme
- UltraStudio HD Mini
Supported AJA SDI Cards
Table of Contents
|
Upload User Manual
Have you got an user manual for the NewBlueFX Titler Live 4 Sport in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewBlueFX Titler Live 4 Sport Specs | | | Delivery Method | Download | | Version | Standard | | Number of Users Supported | 1 | | | | Supported Operating Systems | macOS X 10.1 or Later
Windows 7 or Later | | Memory Requirement | 4 GB (8 GB Recommended) | | Storage Requirement | 891 MB | | CPU Requirement | 2 GHz Dual-Core and Faster | | VRAM Requirement | 1 GB (Minimum)
2 GB (Recommended) | | OpenGL Graphics Requirement | 2.1 |
