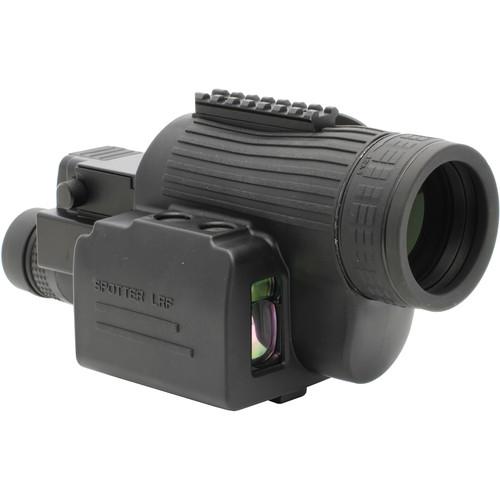

User Manual for Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope Click to enlarge the picture
Contents of the user manual for the Newcon Optik 15-45x60 Laser Rangefinder Spotting
- Product category: Laser Rangefinders Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Rangefinders
|
User manual for the Newcon Optik 15-45x60 Laser Rangefinder Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Designed for long-range shooting, surveillance, or tactical observation, Newcon Optik's 15-45x60 Laser Rangefinder Spotting Scope combines a versatile magnification with a powerful IR laser rangefinder. Its 60mm objective lens and fully multi-coated optics produce bright and clear images even in low-light conditions, and the wide magnification range is ideal for scanning large areas then quickly zooming-in for detailed observations of specific subjects. The built-in IR rangefinder features a mil-dot reticle and an OLED display with eight brightness settings. A USB port allows the use of compatible Android peripherals such as tablets, and a top rail accepts accessories such as lights. The scope is equipped with a three-axis digital compass, meets MIL-STD-810G standards, is submersible to 3.3 feet for 30 minutes, and is nitrogen-filled for a water and fogproof performance. A set of two CR123 batteries (included) will power approximately 5000 measurements. - Optical Performance
-
- 15 - 45x magnification
- 60mm objective lens
- Anti-reflection fully multi-coated optics
- Field of View: 179-63' at 1000 yd
- Angle of View: 51°
- Three-axis digital compass
- Rangefinder
-
- Etched mil-dot reticle
- 1550nm infrared laser
- Measurement Range: 11-3281 yards
- Use and Handling
-
- Straight-viewing for fast subject acquisition and tracking
- OLED display with eight brightness settings
- USB port for compatible Android peripherals
- Upper Picatinny/Weaver accessory rail
- Construction Details
-
- Meets MIL-STD-810G standards
- Submersible to 3.3' for up to 30 min
- Nitrogen-filled for a water and fogproof performance
UPC: 627973521167 In the Box Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope (Straight Viewing) Eyepiece Cap Objective Lens Cap Hard Case 2 x CR123 Batteries Lens Cleaning Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik SPOTTERL LRF PRO Specs | | | Metering Range | 11 to 3281 yd / 10 to 3000 m | | Peak Wavelength | 1550 nm | | | | Magnification | 45x | | Objective Lens Diameter | 60 mm | | Field of View | 15x: 178.1' @ 1000 yd / 59.4 m @ 1000 m
45x: 63.0' @ 1000 yd / 21 m @ 1000 m | | Exit Pupil Diameter | 15x: 4.2 mm
45x: 1.3 mm | | Eye Relief | 15x: 26 mm
45x: 25 mm | | Reticle Type | Mil-Dot | | | | Tripod Mount | Yes, 1/4"-20 | | Water Resistance | Waterproof | | Dimensions | 11 x 5.5 x 4.1" / 28 x 14 x 10.5 cm | | Weight | 3.5 lb / 1.6 kg |
