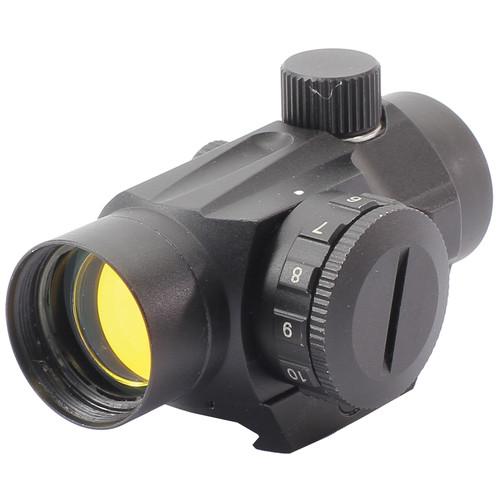

User Manual for Newcon Optik 1x21 NC Red-Dot Reflex Sight Click to enlarge the picture
Contents of the user manual for the Newcon Optik 1x21 NC Red-Dot Reflex
- Product category: Red Dot/Holographic Sights Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Red Dot/Holographic Sights
|
User manual for the Newcon Optik 1x21 NC Red-Dot Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Designed for quick target acquisition and tracking, the Newcon Optik 1x21 NC Red-Dot Reflex Sight features anti-reflection multicoated optics, an illuminated red aiming dot with eleven brightness levels, and is fully compatible with NVDs to increase is usability. When used with both eyes open, it has an unlimited field of view and eye relief for maximum situational awareness and maneuverability.Built to hold up to years of use, it has a lightweight aluminum one-piece housing with a corrosion and scratch-resistant matte-black anodized housing. It is O-ring sealed to make it submersible to 10' for as much as 60 minutes. The NC's compact design and integrated Picatinny/Weaver mount reduces its footprint on rails, while its 4.7oz weight helps to cut weapon weight over larger reflex sights. - Optical Performance
-
- 1x magnification
- 21mm objective lens
- Anti-reflection multicoated optics
- Unlimited field of view when used with both eye open
- Use and Handling
-
- Red dot reticle with 11 intensity settings
- 0.3 mrad per click impact point correction
- Unlimited eye relief when used with both eye open
- Integrated Picatinny/Weaver rail mount
- Construction Details
-
- Lightweight one-piece aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- IPX7-rated, submersible to 10' for up to 60 minutes
- Tested for shock resistance to 500 g
- Broad -13 to 140°F operating temperature range
- Runs on one CR2032 coin-cell battery
In the Box Newcon Optik 1x21 NC Red-Dot Reflex Sight CR2032 Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 1x21 NC Red-Dot Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NC 1X21 Specs | | | Reticle | Dot | | Reticle Color | Red | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 21 mm | | | | Impact Point Correction | 0.3 MRAD | | | | Operating Temperature | -13 to 140°F / -25 to 60°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 95% | | | | Water Resistance | Waterproof, IPX7 | | Dimensions | L: 3.4 x W: 2.2 x H: 1.9" / L: 8.6 x W: 5.6 x H: 4.8 cm | | Weight | 4.7 oz / 133.2 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
