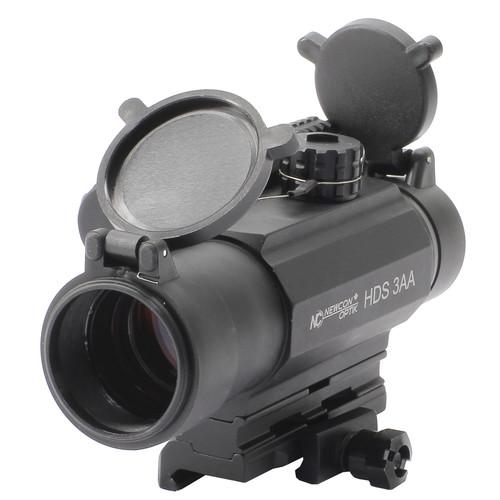

User Manual for Newcon Optik 1x26 HDS 3AA Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Newcon Optik 1x26 HDS 3AA Red
- Product category: Red Dot/Holographic Sights Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Red Dot/Holographic Sights
|
User manual for the Newcon Optik 1x26 HDS 3AA Red contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Specifically designed for fast and accurate both-eyes-open target acquisition and tracking, Newcon Optik's 1x26 HDS 3AA Red Dot Sight features a variable-intensity red aiming dot that can be easily seen in bright or low-light conditions without obstructing targets or interfering with the field of view. When used with both eyes open, there it has an unlimited field of view and eye relief, and its anti-reflection multicoated optics ensures the brightest image possible.The HDS 3AA housing is made of a lightweight aluminum alloy with a scratch and corrosion-resistant anodized finish. It is IP67-rated to be fogproof and submersible to 3.3' for up to 30 minutes. The sight is equipped with a Picatinny/Weaver mount, a removable honeycombed anti-reflection objective filter that doesn't interfere with the lens cover, and flip-up covers for the objective and ocular lenses. Its reticle is powered using a single AA battery. - Optical Performance
-
- 1x magnification
- 26mm objective
- Anti-reflection multicoated optics
- Unlimited field of view and eye relief when used with both eyes open
- Use and Handling
-
- Red aiming dot
- Variable intensity levels
- Rough knurled turrets for easy adjustment with or without gloves
- Picatinny/Weaver rail mount
- 0.1 mrad impact point correction
- Parallax-free design
- Construction Details
-
- Aluminum alloy housing
- Matte-black corrosion and scratch resistant anodized finish
- IP67-rated dustproof and submersible to 3.3' (1m) for up to 30 minutes
- Shock-resistant to 500 g
- Flip-up objective and ocular lens covers
- Removable honeycomb anti-reflective objective lens filter
- Runs on one user-supplied AA battery with 200 hour max runtime
In the Box Newcon Optik 1x26 HDS 3AA Red Dot Sight AA Battery Lens Cloth Allen Wrench Anti-Reflective Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 1x26 HDS 3AA Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik HDS 3AA Specs | | | Power Source | 1 x AA | | Runtime | 200 Hours | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 26 mm | | | | Impact Point Correction | 0.1 MRAD | | | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Storage Temperature | -67 to 167°F / -55 to 75°C | | Operating Humidity | 95% | | | | Water Resistance | IP67 | | Dimensions | L: 5.0 x W: 2.2 x H: 2.8" / L: 12.7 x W: 5.6 x H: 7.1 cm | | Weight | 11.7 oz / 332 g |
