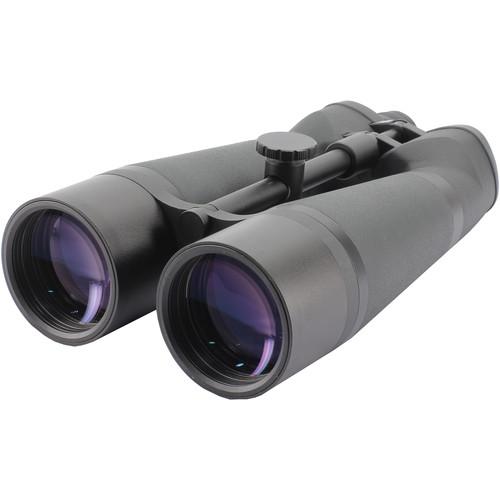

Product description The B&H Binocular Buying Guide Read More Designed for use on the water or in extreme environments, Newcon Optik's black 20x80 AN M22 Binocular features the M22 crosshair reticle that helps users determine the range to objects and to approximate a subject's size. This powerful optic features large 80mm objectives and fully multicoated optics that maximize light transmission while minimizing light loss. The combination of optics and coatings produce bright and clear images even at low light. To help minimize the disorientation often associated with using high-magnification optics on rolling seas, the AN M22 has a wide 66° apparent angle of view. Each ocular is individually focused to achieve the sharpest possible images.Complementing the optical performance is a housing that is designed to hold up to daily use in rugged environments. The chassis is made of a light and durable magnesium alloy with a UV-resistant rubber armoring that provides a slip-resistant grip. The UV resistance ensures that the armor won't crack or fade over time. The optical tubes are nitrogen-filled and O-ring sealed to provide fogproof performance even with extreme temperature swings, and the binocular is submersible to 20' for up to 30 minutes. Its broad -40 to 176°F operating temperature range allows it to function properly in the most inhospitable climates. Weighing in at over 5.5 lb means that visible hand-shake and user-fatigue can be concerns, especially for long observation sessions. It is for this reason that the center stabilizer bar has an integrated 1/4"-20 tripod adapter. Rounding out its usability is a long 16mm eye relief and fold-down rubber eyecups. - Optical Performance
-
- 20x magnification
- 80mm objective lenses
- BAK4 roof prism optical path
- Anti-reflection fully multicoated optics
- 173' field of view at 1000 yards
- 66° wide-angle viewing
- Reticle
-
- M22 ranging crosshair reticle
- Stadia and markers on both axes with ranging indicators
- Use and Handling
-
- Individual-focus eyepieces
- Closed-bridge configuration
- Fold-down rubber eyecups
- Center stabilizer bar with integrated 1/4"-20 tripod adapter
- 16mm eye relief, 4mm exit pupil
- Construction Details
-
- Strong and lightweight magnesium alloy body
- Nitrogen-filled, fogproof and IPX8-rated submersible to 20' for up to 30 minutes
- UV-resistant black rubber armoring protects against impacts and provides a slip-resistant grip
- Broad -40 to 176°F operating temperature range
UPC: 627973520955 In the Box Newcon Optik 20x80 AN M22 Binocular (M22 Reticle) Neck Strap Soft Carrying Case 2 x Objective Lens Covers Cleaning Cloth One-Piece Eyepiece Rainguard Limited 1-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 20x80 AN M22 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik M22 Specs | Prism Type | Roof | | Magnification | 20 x | | Objective Lens Diameter | 80 mm | | Angle of View | 3.3° (actual) | | Field of View | 173.3' @ 1000 yd / 57.5 m @ 1000 m | | Minimum Focus Distance | 59.1' / 18 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±10 | | Focus Type | Individual | | Tripod Mount | Yes | | Dimensions | 11.7 x 9.1 x 3.7" / 298.0 x 230.0 x 95.0 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 4.0" |
