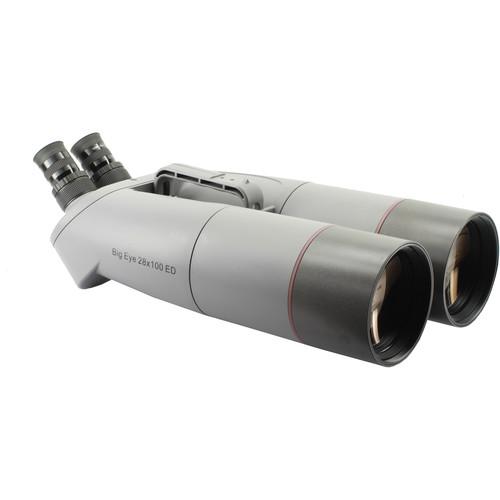

User Manual for Newcon Optik 28x100 Big Eye ED Binocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik 28x100 Big Eye ED
- Product category: Binoculars Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Binoculars
|
User manual for the Newcon Optik 28x100 Big Eye ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for long-range observation on land or sea, the Newcon Optik 28x100 Big Eye ED Binocular features extra low-dispersion glass elements that reduce chromatic aberration, with large 100mm objectives and fully multicoated optics that maximize light transmission. The combination of optics and coatings produce bright and clear high-contrast images with true color representation - even in low light. To help minimize the disorientation often associated with using high-magnification optics on rolling seas, the binocular has a wide 70° apparent angle of view. Each ocular is individually focused to achieve the sharpest possible images.Complementing the optical performance is a housing that is designed to hold up to daily use in rugged environments. The optical tubes are nitrogen-filled and IP67-rated to provide fogproof, dustproof and weatherproof performance in extreme conditions and drastic changes in temperature. Its broad -31 to 122°F operating temperature range allows it to function properly in the most inhospitable climates. Because of the nearly seven pound weight, the Big Eye comes with a mount that swivels a full 360° horizontally and up to 135° vertically. - Optical Performance
-
- 28x magnification
- 100mm objective lenses
- BAK6 roof prism optical path
- Extra low-dispersion (ED) glass virtually eliminates chromatic aberration for high-contrast true color rendition
- Anti-reflection fully multicoated optics
- 131' field of view at 1000 yards
- 70° wide-angle viewing
- Use and Handling
-
- Individual-focus eyepieces
- Eyepieces set at a 45° viewing angle for comfortable viewing - sitting or standing
- Closed-bridge configuration
- Integrated top handle and 1/4"-20 tripod adapter
- 16mm eye relief, 3.6mm exit pupil
- Construction Details
-
- Strong and lightweight magnesium alloy body
- IP66-rated, dustproof and weatherproof
- Nitrogen-filled, fogproof
- Broad -31 to 122°F operating temperature range
UPC: 627973520474 In the Box Newcon Optik 28x100 Big Eye ED Binocular Hard Carrying Case 2 x Objective Lens Covers 2 x Eyepiece Covers Limited 1-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 28x100 Big Eye ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik BIG EYE 28X100 ED Specs | Prism Type | Roof | | Magnification | 28 x | | Objective Lens Diameter | 100 mm | | Angle of View | 2.5° (actual) | | Field of View | 131.3' @ 1000 yd / 43.6 m @ 1000 m | | Minimum Focus Distance | 98.4' / 30 m | | Exit Pupil Diameter | 3.6 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 53 to 76 mm / 2.1 to 3" | | Dioptric Correction | -5 / +2 | | Focus Type | Individual | | Tripod Mount | Yes | | Dimensions | 21.8 x 10.6 x 6.8" / 55.3 x 27.0 x 17.2 cm | | Weight | 15.0 lb / 6.8 kg | | | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 18.0" |
