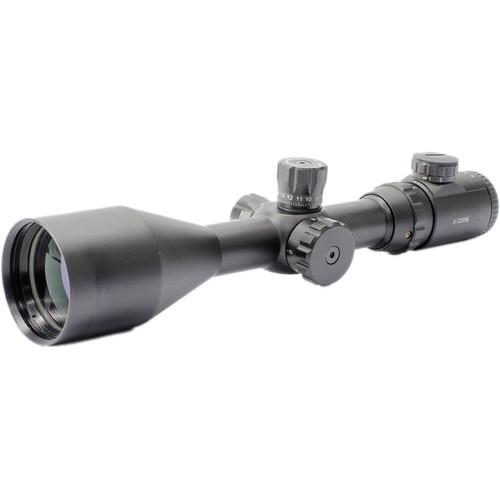

User Manual for Newcon Optik 3-12x56 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Newcon Optik 3-12x56 Side Focus Riflescope
- Product category: Riflescopes Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Riflescopes
|
User manual for the Newcon Optik 3-12x56 Side Focus Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Newcon Optik's 3-12x56 Side Focus Riflescope is designed with durability and performance in mind for both tactical and hunting applications. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high quality optical glass and polished for low-distortion performance. To expand the effectiveness of your range in the most challenging of lighting conditions, like dusk or dawn, this riflescope also features an extra-wide 56mm objective lens. To empower you with laser precision when making your shots, the optic is enhanced with an illuminated Mil-Dot reticle, located in the 2nd focal plane.
The housing is engineered from high-strength aluminum and coated with a hard anodized finish. It features a 30mm maintube and graduated, finger-operated windage and elevation turrets with a side focus parallax corrector knob. The knurled easy-focus eyepiece provides a long 4" eye relief. The overall design incorporates a fogproof and waterproof performance and will withstand extreme conditions for years of service. Red Mil-Dot Illuminated Reticle -
- 2nd focal plane
- Four thin posts
- Thin crosshair
- Red LED illumination
- 7 brightness levels
- Parallax free from 50m to infinity
Optical Performance -
- Multi-coated optics
- 56mm objective for exceptional brightness in low-light conditions
- Linear field of view: 36-9' at 100 yards
- Long eye relief of 4"
- Diopter: +3 to -3
Use and Handling -
- 1 MRAD impact point correction
- 120 MRAD windage and 340 MRAD elevation
Construction Details -
- 30mm single-piece tube
- High-strength aluminum housing
- Finger-operated graduated turrets
- Fogproof, nitrogen-filled
- Side focus parallax corrector
- Temperature rating: -58 to 122°F
- Waterproof and fogproof
- Built-in sunshade
- Shock-resistant
In the Box Newcon Optik 3-12x56 Side Focus Riflescope (Mil-Dot Illuminated Reticle, Matte Black) - Soft Carrying Case
- Allen Key
- 2 x Lens Caps
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 3-12x56 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NC 3-12X56 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
12x: 9' @ 100 yd / 3 m @ 100 m | | Exit Pupil Diameter | 3x: 18.6 mm
12x: 4 mm | | Eye Relief | 4" / 100 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1.0 MRAD per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 340 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | IP67 | | Fogproof | Yes | | Operating Temperature | -58 to 122°F / -50 to 50°C | | Storage Temperature | -61.6 to 131.0°F / -52 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.9" / 32.8 cm
Height: 2.7" / 6.9 cm
Width: 2.5" / 6.3 cm | | Weight | 24.5 oz / 695 g |
