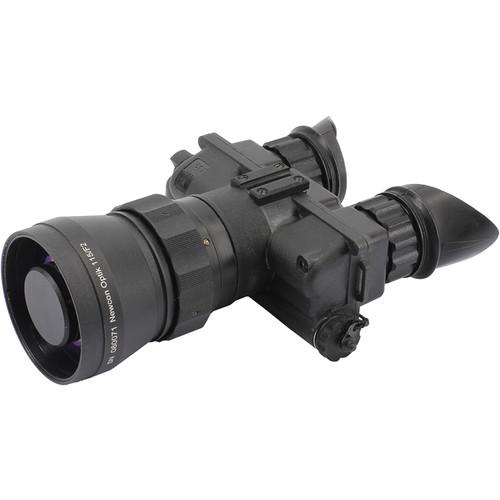

User Manual for Newcon Optik 4x 3rd Generation Night Vision Bi-ocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik 4x 3rd Generation Night
- Product category: Night Vision Bi-Oculars Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Night Vision Bi-Oculars
|
User manual for the Newcon Optik 4x 3rd Generation Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Ideal for security surveillance, watching night skies, and night hunting, the 4x 3rd Generation Night Vision Bi-ocular from Newcon Optik features a 3rd generation autogated intensifier tube with a resolution of 64 lp/mm. Its autogating feature provides resistance to bright light, reduces degradation, and helps improve tube life. To maximize image brightness in the lowest of lighting conditions, and in complete darkness, the bi-ocular carries a built-in infrared illuminator and a wide catadioptric objective lens with a 115mm focal length and f/1.5 f-number. With 4x magnification, the lens system enables you to make observations at a considerable range with an angular field of view of 10°. The bi-ocular also offers a diopter adjustment and a variable interpupillary distance.
To allow you to use it anywhere, the housing is made of high quality aluminum and offers waterproof performance and can be submersed to a depth of 3.3' for 30 minutes. Its rubber winged eyecups prevent spillover of light from the tubes and offer comfortable cushions between the orbits of your eyes and eyepieces. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Intensifier Tube
-
- 3rd generation
- 64 lp/mm resolution
- Signal-to-noise ratio (SNR): 24
- Autogating prevents damage from bright light, reduces degradation, and extends IIT life
- Built-in IR illuminator casts extra infrared light on targets and improves image brightness
- Optical Performance
-
- Magnification: 4x
- Catadioptric objective lens design
- Lens system: 115mm, f/1.5
- Angular field of view: 10°
- Minimum Focus Distance: 33'
- Use and Handling
-
- Adjustable interpupillary distance
- Diopter adjustment: +5 to -6
- Long 1" eye relief
- Construction Details
-
- Waterproof: submersible to 3.3' for half an hour
- Impact-resistant aluminum body
- Knurled adjustment rings
- Rubber winged eyecups
- Objective cover included
In the Box Newcon Optik 4x 3rd Generation Night Vision Bi-ocular Lens Cover 2 x AA Batteries Soft Case Lens Cleaning Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 4x 3rd Generation Night Vision Bi-ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NVS 7 Specs | Intensifier Tube | 3rd generation
GaAs photocathode
64 lp/mm resolution
SNR: 24 Autogated | | Magnification | 4x | | Angle/Field of View | 10° | | Lens System | 115mm, f/1.5 | | Minimum Focus Distance | 33' / 10 m | | Dioptric Correction | +5 to -6 | | Eye Relief | 1" / 25 mm | | Interpupillary Adjustment | 57-73 mm | | Infrared Illuminator | Yes | | Battery / Runtime | 2 x AA batteries / 80 h | | Weatherproofing | Waterproof | | Operating Temperature | -58 to 122°F / -50 to 55°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Dimensions | 6.5 x 4.7 x 2.7" / 165 x 120 x 70 mm | | Weight | 24.3 / 690 g |
