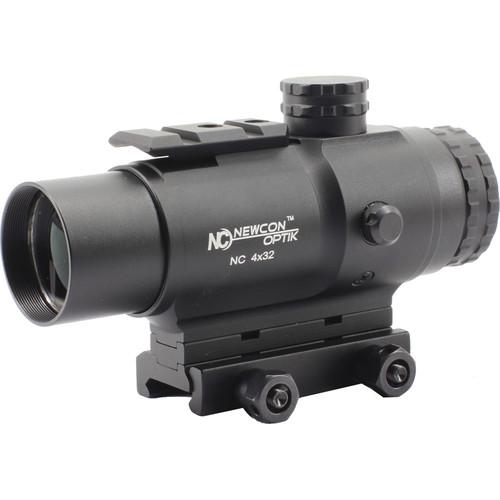

User Manual for Newcon Optik 4x32 Prismatic Sight Click to enlarge the picture
Contents of the user manual for the Newcon Optik 4x32 Prismatic Sight
- Product category: Riflescopes Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Riflescopes
|
User manual for the Newcon Optik 4x32 Prismatic Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Gain a tactical advantage with the Newcon Optik 4x32 Prismatic Sight. This device is designed for close quarter combat and features a top Picatinny/Weaver rail for attaching other accessories like lasers, cameras, and flashlights as well as secondary optics like holographic sights. To provide maximum image brightness and clarity in demanding situations, the lenses are multi-coated. To help with precision target acquisitions, the sight features a Red-Green Mil-Dot reticle. To accommodate variable lighting conditions and personal preferences, this reticle also offers adjustable brightness.
Designed to withstand rigors of the battlefield, the housing is made of high-strength aluminum. It offers a waterproof performance with a submersion rating to 9.8' for 30 minutes. Enabling you to account for winds and ballistic drops, the scope provides windage and elevation adjustments with 1/2 MOA click values. For compatibility with most firearms, the sight also features a built-in Picatinny/Weaver rail mount. - Red-Green Mil-Dot Reticle
-
- Four thin posts
- Fine crosshair and target dot
- System of fine bars for ballistic and wind compensation
- Full reticle illumination
- Adjustable brightness
- Optical Performance
-
- 4x magnification
- 32mm objective diameter
- Multi-coated optics
- Use and Handling
-
- 1/2 MOA impact point correction
- 80 MOA Windage and elevation adjustments
- Construction Details
-
- High-strength aluminum housing
- Built-in Picatinny/Weaver mount
- Integrated short, top Picatinny/Weaver accessory rail
- Waterproof and fogproof
- Submersible to 9.8'
In the Box Newcon Optik 4x32 Prismatic Sight (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR-2032 Battery
- 2 x Flip-up Lens Caps
- Pouch
- Lens Cleaning Kit
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 4x32 Prismatic Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NC 4X32 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Exit Pupil Diameter | 8 mm | | Eye Relief | 2.8" / 72 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | MIL Dot Reticle | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof to 9.8' / 3 m | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Storage Temperature | -22 to 131°F / -30 to 55°C | | Operating Humidity | 95% | | | | Battery | 1 x CR2032 | | Battery Runtime | 200 to 4000 Hours | | Dimensions | Length: 5.4" / 13.9 cm
Height: 3.1" / 7.9 cm
Width: 2.2" / 5.7 cm | | Weight | 15 oz / 430 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
