User Manual for Newcon Optik 5-30x56 Tactical Day Riflescope Click to enlarge the picture
Contents of the user manual for the Newcon Optik 5-30x56 Tactical Day Riflescope
- Product category: Riflescopes Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Riflescopes
 |
User manual for the Newcon Optik 5-30x56 Tactical Day Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|

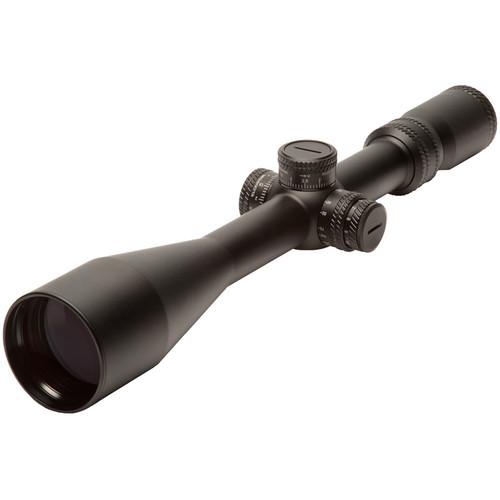

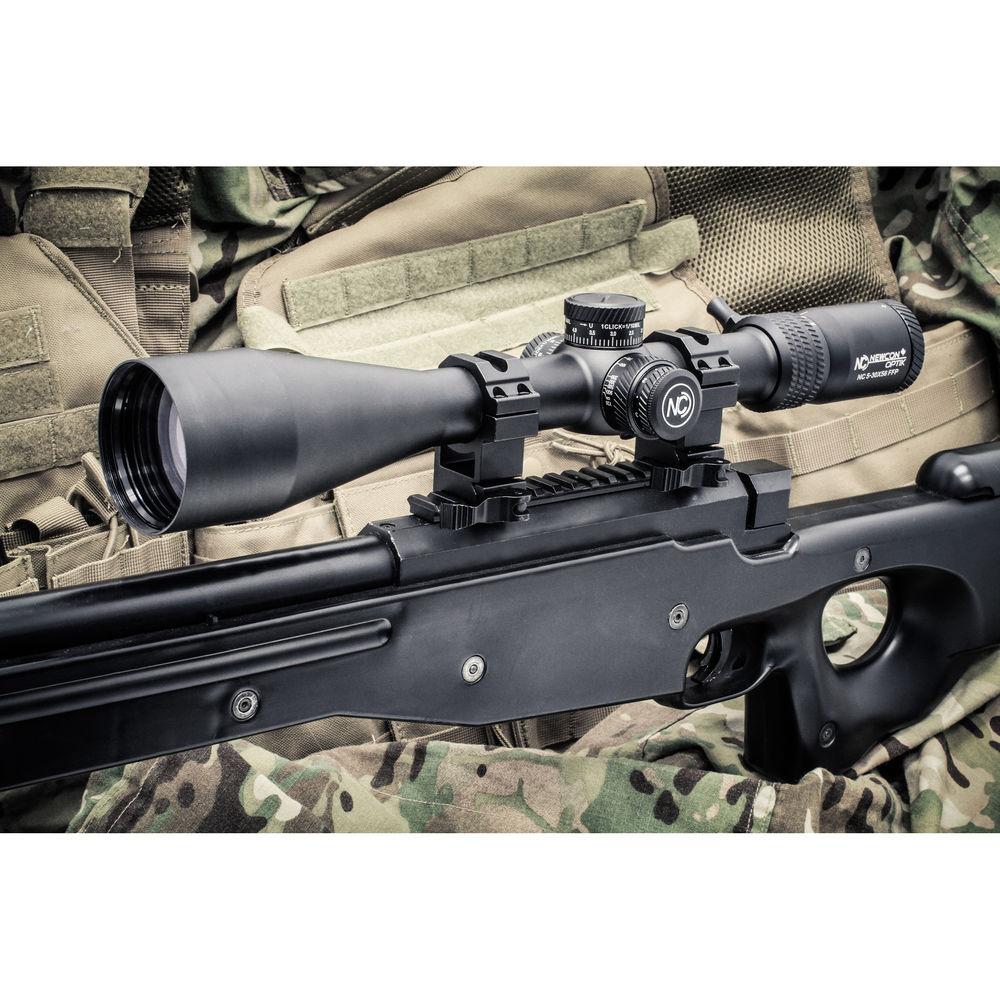

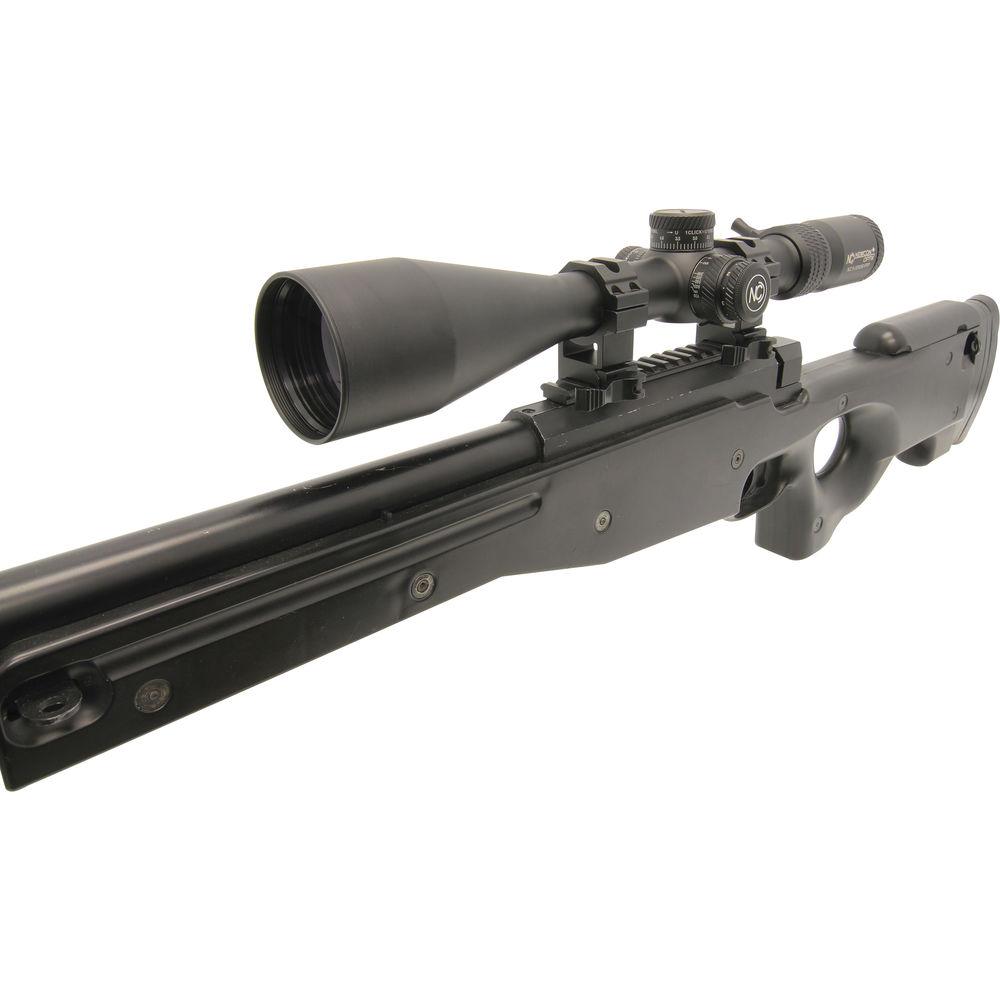

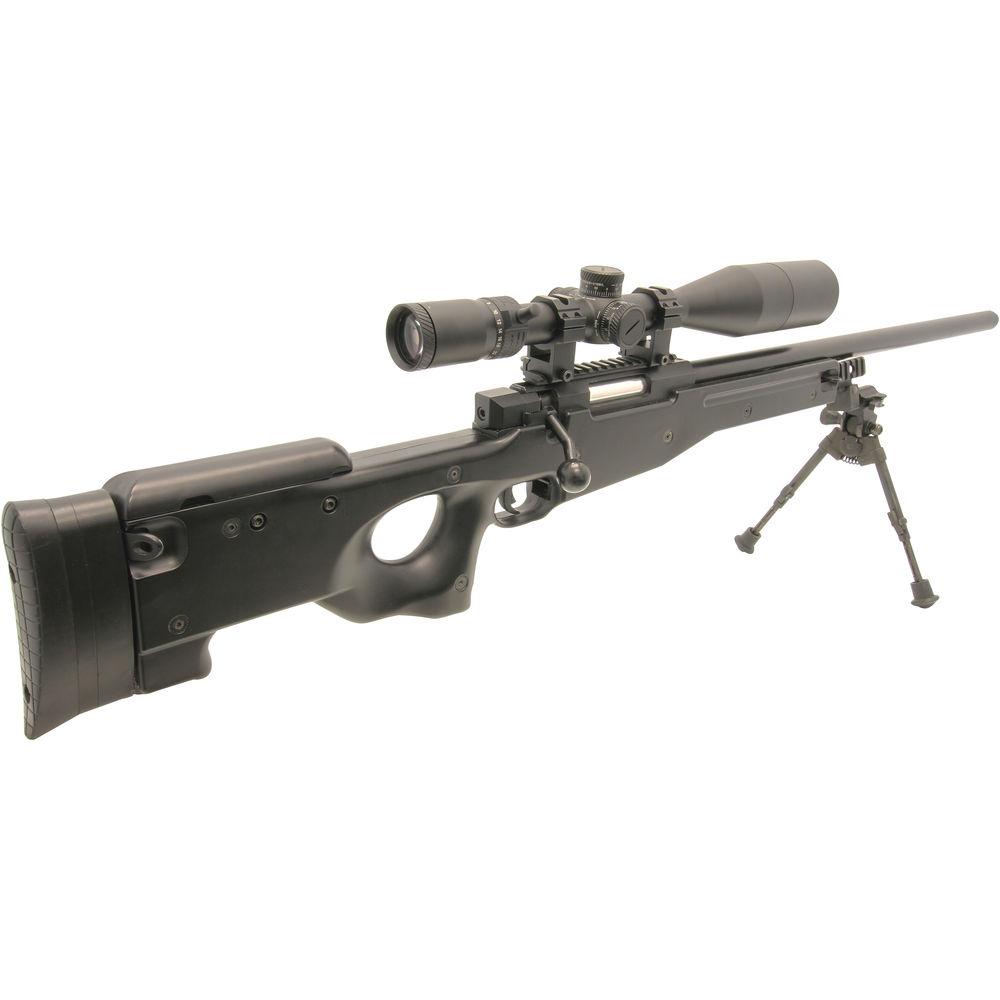

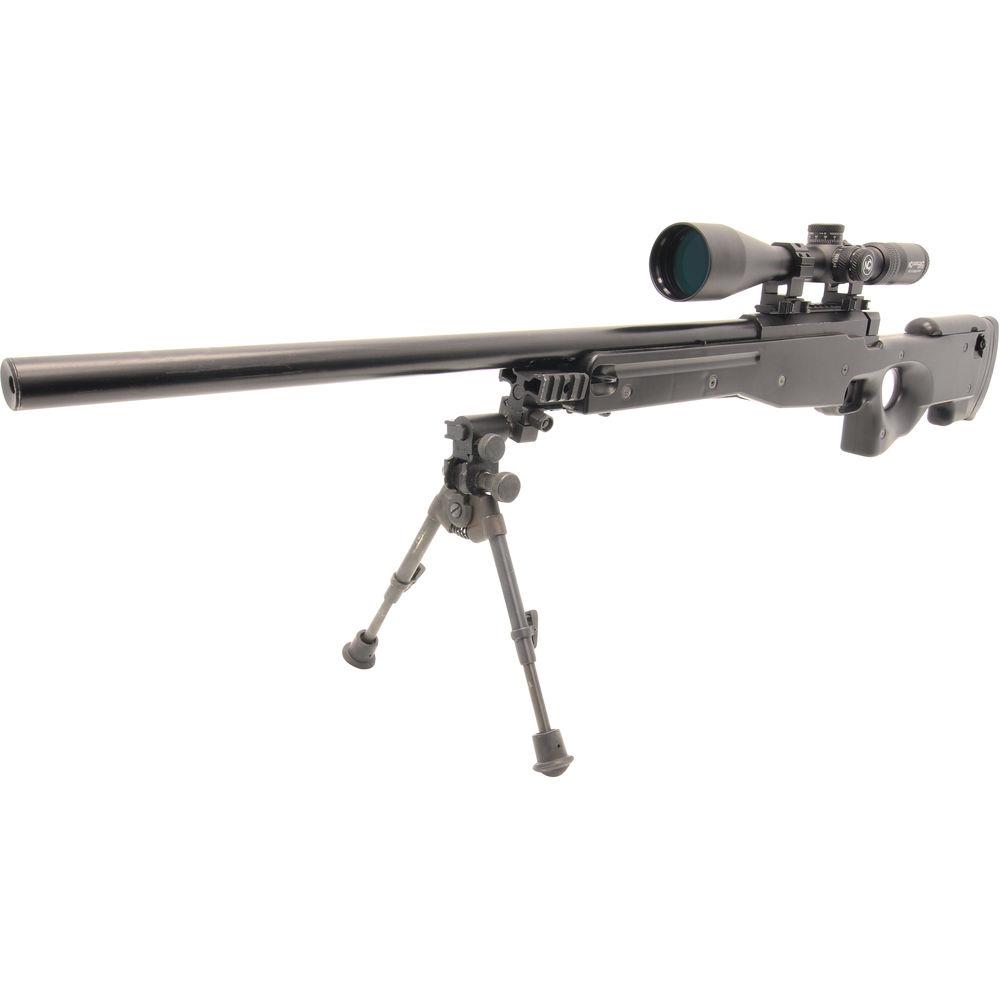

Product description Ideal for acquiring small targets at long distances, the Newcon-Optik NC 5-30x56 Riflescope is designed for use on a variety of weapon platforms. Its 56mm objective and fully multi-coated optics draw in ample light for a bright and clear image, and its central system parallax adjustment assures accuracy on long shots.
The scope employs a Mil Dot reticle in the first focal plane, providing a consistent reticle size at all magnifications. The tactile- and audible-click turrets deliver 1/3 MOA per click of impact point adjustment, with a total adjustment range of 180 MOA for long shots. The lightweight and durable anodized aluminum housing consists of a 30mm one-piece maintube, nitrogen filled and sealed for fog and waterproof performance. The reticle is powered by one included 2032 battery. - Optical Performance
-
- 5-30x zoom range
- 56mm objective lens
- Fully multi-coated optics
- 14.5-2.4' field of view at 100 yards
- Mil Dot Reticle
-
- First focal plane
- Consistent size at all magnifications
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Tactile and audible turret adjustment
- 1/3 MOA impact point correction per click
- 180 MOA elevation and windage adjustment range
- Multi-revolving windage turret, single-revolving elevation turret
- Long 3.7" eye relief
- Construction Details
-
- 30mm one-piece maintube
- Durable anodized aluminum housing
- Nitrogen filled and sealed for fog and waterproof performance
- Front and rear flip-up lens covers
- Length: 16.5 inches
- Weight: 28 ounces

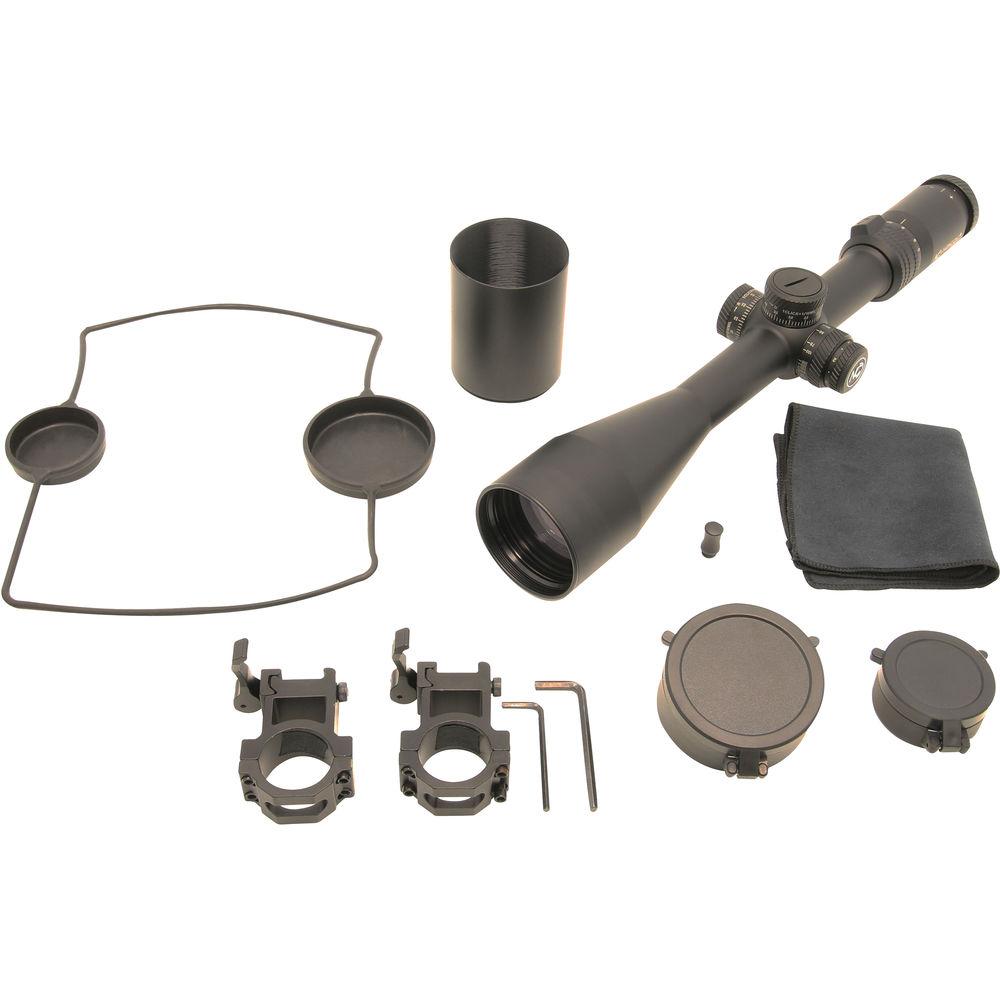

In the Box Newcon Optik 5-30x56 Tactical Day Riflescope (Mil-Dot Illuminated Reticle) CR 2032 Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 5-30x56 Tactical Day Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NC 5-30X56 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 14.5' @ 100 yd / 4.8 m @ 100 m
25x: 2.4' @ 100 yd / 0.8 m @ 100 m | | Exit Pupil Diameter | 5x: 9 mm
25x: 2 mm | | Eye Relief | 3.7" / 95 mm | | | | Reticle Type | Mil Dot Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 180 MOA | | Elevation Adjustment | 180 MOA | | Parallax Correction | Yes, 54.7 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -31 to 131°F / -35 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 98% | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.6" / 42.2 cm | | Weight | 28 oz / 795 g |
