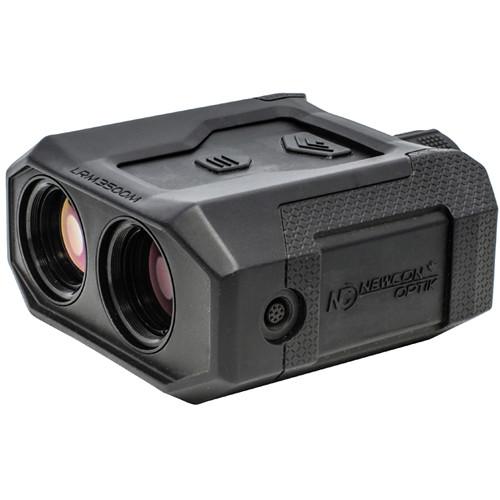

Product description Designed and built around the unique needs of today's scout/snipers, the Newcon Optik 6.5x30 LRM 3500M 35BT Laser Rangefinder is a powerful and versatile ranging tool that can help you accurately call in artillery or get your partner on target, and still be able to withstand the harshest battlefield conditions.The rangefinder can reach out to a standard NATO target up to 3.4 miles away, or NATO targets with 30% reflectivity up to 2.2 miles away. Complementing the rangefinder and adding to its overall functionality are integrated GPS receiver and inclinometer plus a 3-axis digital compass. The GPS allows you to mark your coordinates as well as your target's, making it invaluable when calling in mortar or artillery. A special algorithm also gives you the ability to measure the linear or horizontal distance as well as the azimuth, inclination, and height difference between two targets. An etched ranging reticle acts as a backup if your batteries get depleted.Ideal for recon and sniper teams who need to move fast and light, the LRM is just 4.6" long and weighs 16.2 ounces without batteries. With a broad operating temperature range, and a chassis that is nitrogen-filled and sealed to be submersible and resistant to internal fogging this rangefinder will hold up under harsh conditions. It comes with a connector for NVS14 and PVS14 night vision devices to make it even more useful. - Rangefinder
-
- Class 1, eye-safe infrared laser
- 1550nm peak wavelength
- Metering range from 11-6017 yards / 10-5500 meters to NATO-standard targets, range to NATO-standard target with 30% reflectivity is 11-3825 yards / 10-3500 meters
- ±1 yard/meter metering accuracy
- Distance displayed in meters or yards
- 55-yard / 50-meter range for target discrimination
- Spot mode ranges to single stationary target, Scan mode quickly meters multiple or moving targets
- Additional Functions
- General
- Integrated GPS receiver marks the user's coordinates as well as the target's for multiple uses, including calling in artillery
- Etched ranging reticle with crosshairs on horizontal and upper vertical axes, 120 MIL measurements on horizontal axis, 60 MIL on vertical
- Three-axis digital compass provides accurate directional assistance
- Azimuth measurement accuracy of 17.5 MIL
- Compass and inclinometer readings shown in degrees or MIL
- First/last target discrimination: when multiple targets are close together in the field of view, this function allows you to select the range to the closest or furthest one based on the situation or preference
- Access to the last ten readings eliminates the need to remeasure multiple targets, ideal for calling shots to a shooter
Built-in inclinometer- Measures angle between user and target, or two selected targets
- Range ±1420 MIL
- Accuracy 8.8 MIL
Distance between objects- Mark and measure between two targets in the view, ideal for calling shots from a different location than the shooter, artillery, or mortar rounds
- Horizontal distance
- Azimuth difference
- Inclination difference
- Height difference
Target discrimination- Useful when ranging a target from behind bushes, power lines, through falling snow, or in similar conditions
- Uses a target selection algorithm that allows the user to choose which target in the field of view to range: nearest target, farthest target, most reflective target
- Optical Performance
-
- Monocular design
- Low 6.5x magnification ensures a wide field of view, comfortable exit pupil, and long eye relief
- 30mm objective lens diameter ensures a compact form factor for easier use
- Anti-reflection fully multi-coated optics maximize light transmission to ensure bright and clear high-contrast views, even in low light
- 367.5-foot field of view at 1000 yards
- Exceptional 20mm eye relief reduces eye strain
- Comfortable 4.6mm exit pupil will completely cover most pupils as they open and dilate in low light
- ±5 dioptric adjustment range
- Use and Handling
-
- Customized matrix Red OLED in-view display
- Simple push button user interface for activation, mode selection, and menu functions/selections
- Less than one second to power up USB and Bluetooth connectivity
- Compatible with Android devices
- Runs on two included CR123 lithium batteries
- Low battery indicator
- Construction Details
-
- Tripod mountable via integrated 1/4"-20 socket on bottom
- Nitrogen-filled to be resistant to internal fogging in extreme conditions
- Waterproof to MIL-STD-810G standard, submersible to 3.3 feet / 1 meter for up to 30 minutes
- Compact 4.6 x 4.2 x 2.1" form factor for easier packing and carrying in the field
- Mechanical and optical compatibility with NVS14 & PVS14 night vision devices
- Broad -31 to 149°F operating temperature range
- Light 16.2-ounce weight without batteries is ideal for fast mobility
In the Box Newcon Optik 6.5x30 LRM 3500M 35BT Laser Rangefinder Soft Carry Case Neck Strap NVS Connector 2 x CR123 Battery Limited 1-Year Warranty Table of Contents
|
