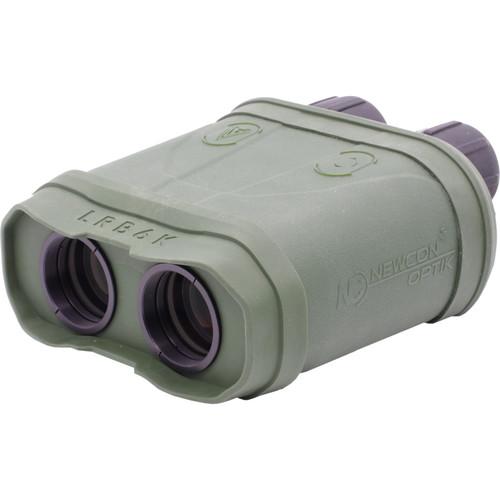

User Manual for Newcon Optik 7x42 LRB 6K Laser Rangefinder Binocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik 7x42 LRB 6K Laser
- Product category: Laser Rangefinders Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Rangefinders
|
User manual for the Newcon Optik 7x42 LRB 6K Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The LRB 6K 7x42 Rangefinder Binocular from Newcon Optik is a handheld electro-optical device built for measuring distances up to 3.7 miles (6 kilometers) away, with accuracy to within 3.3 feet. The configuration of this laser rangefinder binocular integrates a built-in three-axis compass and inclinometer to calculate a range of useful data about the target. Fully multi-coated optics, two selectable reticle options, MIL-STD form factor, and an LED display help make the LRB 6K a well-equipped rangefinder for patrol, surveillance, and reconnaissance operations. The LRB 6K's RS-232 and USB interface ports allow the device to be operated remotely, export stored data, and communicate with external GPS systems and ballistic computers. Further enhancing the construction features are a shockproof chassis and weatherproof sealing that comply with MIL-STD-810G performance standards. - Optical Performance
-
- 7x magnification, 42mm objective
- Field of View: 6°
- Apparent Angle of View: 42°
- 20mm eye relief, ±5 diopter adjustment range
- Fully multi-coated optics
- 1550nm Class 1 eye-safe laser
- Measurement Range: 6562 yd (6000m), with ±1.1 yd (1m) accuracy
- Use and Handling
-
- Digital magnetic compass
- Built-in inclinometer
- RS-232 and USB ports for data transmission
- Selectable reticle patterns
- Measurement displayed in yards/meters
- 1/4"-20 threaded mount for tripod
- Low-battery indicator
- Single 2CR5 battery operation
- Construction Details
-
- MIL-STD-810G weatherproof housing
- -40 to 140°F(-40 to 60°C) operating temperature
- Measures: 8.3 x 6.3 x 3.3
- Weight: 58 oz
UPC: 627973521808 In the Box Newcon Optik 7x42 LRB 6K Laser Rangefinder Binocular Hard Shell Case Carrying Case Neck Strap Lens Cloth 2CR5 Battery RS-232, USB Cable Cover for Eyepieces CD with Interface Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 7x42 LRB 6K Laser Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik LRB 6K Specs | | | Laser Type | Class 1 Eye Safe | | Accuracy | 6562 yd / 6000 m:
