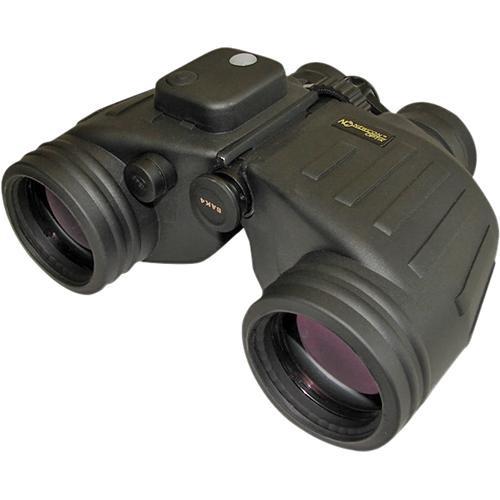

User Manual for Newcon Optik 7x50 AN Binocular with Compass & Reticle Click to enlarge the picture
Contents of the user manual for the Newcon Optik 7x50 AN Binocular with
- Product category: Binoculars Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Binoculars
|
User manual for the Newcon Optik 7x50 AN Binocular with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The military-specification Newcon Optik 7x50 AN Binocular is favored by special operations and law enforcement units because of its reticle and compass functions, but also makes a good boating binocular. It is a no-nonsense and utilitarian 7x full-size that's stocky and easy to hold. And as a 7x50 porro prism with extreme depth of field and center focusing, it is a decidedly rare combination. There's an abundant 23mm of eye relief, and the 7x50 AN M22 is tested to withstand substantial shock and moisture impact. - Enormous -40 to +158°F temperature operating range
- Tough rubber armored exterior
- Fully multicoated optics with hydrophobic external treatment
- 56-74mm Interpupillary distance adjustment range (with scale)
- Military type M22 reticle's easily viewed, even in poor lighting, and helps calculate distances of known objects
- Compass illuminated by ambient light window or internal batteries
- Seaworthy, rubber fold-down style eyecups withstand harsh conditions
In the Box Newcon Optik 7x50 AN Binocular with Compass & Reticle Soft Case with Strap Neck Strap Cleaning Cloth 2 x 186 (LR43-AG12) Alkaline Battery (1.5v) Limited 1-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik 7x50 AN Binocular with Compass & Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik AN 7X50MC Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Minimum Focus Distance | 105.9' / 32.3 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 23 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±5 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 7.7 x 3.4 x 6.1" / 19.5 x 8.5 x 15.5 cm | | Weight | 2.44 lb / 1.11 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 4.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
