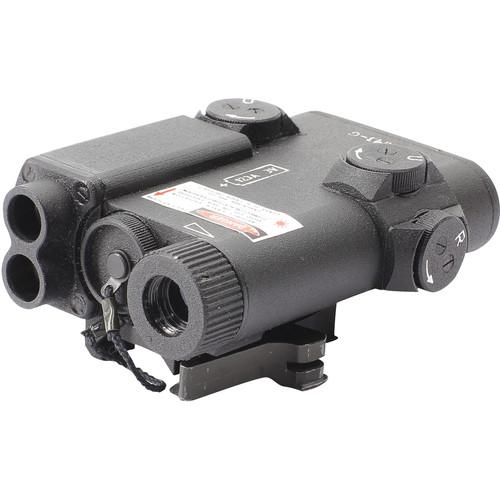

Product description The LAM 3G Visible and Infrared Laser Aiming Device from Newcon Optik combines a visible green aiming laser, an infrared aiming laser, and an infrared illuminator to provide you with an aiming and illumination capability during both day or night. The operating menu allows you to use all three light sources separately or use the infrared laser with the infrared illuminator together. To allow short and long range illumination, the device has low and high power output settings. Additionally, to compensate for bullet drop and crosswinds, the device provides a 40 mrad windage and elevation adjustment range with 0.5 mrad increments. Both visible and infrared laser beams have divergences of 50 mrad and will produce a beam spot of 2" at a distance of 109 yd. The infrared illuminator is focusable and can produce spots of variable sizes.
The aluminum housing with black finish is durable, waterproof, and has a quick release lever for a fast and easy detachment. The LAM G3 aiming device is compatible with a Picatinny rail and includes a soft case, a CR123 battery, and a pressure pad remote control. - Visible Aiming Laser
-
- Green, Class IIIb laser
- Wavelength: 532 ± 10 nm
- Beam divergence: 0.5 mrad
- Beam spot 2" at 109 yd
- Infrared Aiming Laser
-
- Infrared, Class IIIb laser
- Wavelength: 830 ± 20 nm
- Beam divergence: 0.5 mrad
- Beam spot size: 2" at 109 yd
- Infrared Illuminator
-
- Infrared, Class IIIb
- Variable spot size
- Beam divergence: 3-105 mrad
- Wavelength: 830 ± 20 nm
- Use and Handling
-
- High and low output modes
- Individual operation for green laser, infrared laser, and illuminator
- Combined operation for infrared laser and infrared illuminator
- 40 mrad windage and elevation range with 0.5 mrad step
- Pressure pad remote control is included
- Construction Details
-
- Compatible with a Picatinny style rail
- Quick release allows fast detachment of the device
- Waterproof submersible to 3' for 30 minutes
In the Box Newcon Optik LAM 3G Visible and Infrared Laser Aiming Device Pressure Pad Remote Control CR123 Battery Soft Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik LAM 3G Visible and Infrared Laser Aiming Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik LAM 3G Specs | Laser | Visible Laser Aimer
Eye Safety: IIIb
Distance Visibility: Day 150 m on low / 500 m on high
Beam Divergence: 0.5 mrad
Spot size: 2" @ 109 yd (50 mm @ 100 m)
Wavelength: 532 ± 10 nm
Laser color: green
Infrared Laser Aimer
Eye safety: IIIb
Beam divergence: 0.5 mrad
Spot size: 2" @ 109 yd (50 mm @ 100 m)
Wavelength: 830 ± 20 nm | | Illuminator | Eye safety: IIIb
Beam divergence: 3-105 mrad
Wavelength: 830 ± 20 nm | | Windage/Elevation Adjustment | 40 mrad | | Impact Point Correction per Click | 0.5 mrad | | Battery / Runtime | 1 x CR123 / High: 8 hr, Low: 16 hr max | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Shock Resistance | 300 g | | Humidity | 80% | | Waterproofing | Waterproof, submersible to 3' for 30 minutes | | Dimensions | 4 x 3.1 x 1.6" (100 x 80 x 40 mm) | | Weight | 9.8 oz (278 g) |
