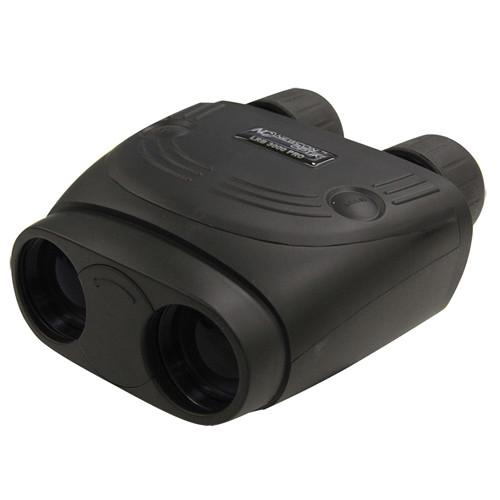

User Manual for Newcon Optik LRB 3000PRO 7x40 Laser Rangefinder Binoculars Click to enlarge the picture
Contents of the user manual for the Newcon Optik LRB 3000PRO 7x40 Laser
- Product category: Laser Rangefinders Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Rangefinders
|
User manual for the Newcon Optik LRB 3000PRO 7x40 Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description With a range of 1.9 miles and the ability to measure azimuth, inclination and speed, the LRB 3000PRO 7x40 Rangefinder Binoculars from Newcon Optik offer a suite of tools for patrol, surveillance, and reconnaissance operations. Along with its rangefinding capabilities, the LRB 3000PRO is a bright pair of binoculars with 40mm objective lenses and 7X magnification that provide detail at distance without the hand shake often experienced with higher-powered optics.The unit comes with a built-in digital compass for azimuth measurements, and features first/last targeting priorities, scan mode, last 10 targets recall, a target quality indicator, and selectable reticles to suit conditions. Its long 18mm eye relief allows for comfortable use with or without eyewear and the generous 5.7mm exit pupil combines with the large objectives for a bright image. The highly water-resistant housing is rubber armored and offers simple two-button operation. It runs on a 9V lithium battery that will last for 5000 measurements, and is equipped with a low-battery indicator to avoid surprises in the field. - Optical Performance
-
- 7x magnification, 40mm objective
- Angle of view: 6°
- Apparent angle of view: 42°
- 18mm eye relief, ±4 diopter adjustment range
- Interpupillary adjustment: 60 - 70mm
- 905nm class 1 eye-safe laser
- Measurement range: 3281 yards (3000m)
- Use and Handling
-
- Digital compass
- Selectable reticle patterns
- Measurement displayed in yards/meters
- Low-battery indicator
- Single 9V lithium battery operation
- Construction Details
-
- IP66 water resistance
- Rubber-armored housing
- -13 to 122°F operating temperature
- Measures: 6.2 x 5.7 x 2.7
- Weight: 34.2 oz
UPC: 627973515159 In the Box Newcon Optik LRB 3000PRO 7x40 Laser Rangefinder Binoculars Carrying Case Lens Cloth 9V Battery Set of Lens Covers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik LRB 3000PRO 7x40 Laser Rangefinder Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik LRB 3000PRO Specs | Magnification | 7x | | Objective Lens Diameter | 40mm | | Angle of View | 6° | | Field of View | 315' @ 1000 yd (105 m @ 1000 m) | | Laser Type | Eye-safe class 1 | | Maximum Range | 3281 yd / 3000 m | | Exit Pupil Diameter | 5.7 mm | | Eye Relief | 18 mm | | Interpupillary Distance | 60 - 70 mm | | Diopter Correction |
