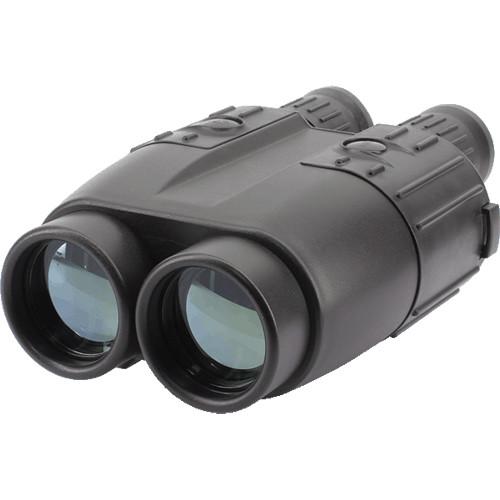

User Manual for Newcon Optik LRB 4000CI 7x50 Laser Rangefinder Binoculars Click to enlarge the picture
Contents of the user manual for the Newcon Optik LRB 4000CI 7x50 Laser
- Product category: Laser Rangefinders Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Rangefinders
|
User manual for the Newcon Optik LRB 4000CI 7x50 Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description With a range of 2.5 miles and the ability to measure azimuth, inclination, and speed, the LRB 4000CI 7x50 Rangefinder Binoculars from Newcon Optik offer a suite of tools for patrol, surveillance, and reconnaissance operations. Along with its rangefinding capabilities, the LRB 4000CI is a bright pair of binoculars with 50mm objective lenses and 7X magnification that provide detail at distance without the hand shake often experienced with higher-powered optics.The unit comes with a built-in digital compass for azimuth measurements, and features first/last targeting priorities, scan mode, last 10 targets recall, a target quality indicator, and selectable reticles to suit conditions. Its RS-232 port permits immediate data acquisition by computers or external GPS receivers. The long 18mm eye relief allows for comfortable use with or without eyewear, and the generous 7.1mm exit pupil combines with the large objectives for a bright image. Built to withstand the elements, these binoculars boast a highly water-resistant housing, rubber-armored housing, and a simple, two-button operation. They run on a 9V battery that will last for 5000 measurements, and are equipped with a low-battery indicator to avoid surprises in the field. - Optical Performance
-
- Measurement range: 4374 yards (4000m)
- 7x magnification, 50mm objective
- Field of view: 5°
- Apparent angle of view: 35°
- 18mm eye relief, ±4 diopter adjustment range
- 905nm class 1 eye-safe laser
- Use and Handling
-
- Digital compass
- Selectable reticle patterns
- Measurement displayed in yards/meters
- RS-232 computer port
- Low-battery indicator
- Single 9V battery operation
- Battery good for 5000 measurements
- Construction Details
-
- IP66 water resistance
- Rubber-armored housing
- -13 to 122°Foperating temperature
- Measures: 8.3 x 5.9 x 3.1
- Weight: 2.9 lb
UPC: 627973515166 In the Box Newcon Optik LRB 4000CI 7x50 Laser Rangefinder Binoculars Soft Carrying Case Hard Carrying Case RS-232 Cable 9.0V Battery Set of Lens Covers Lens Cleaning Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik LRB 4000CI 7x50 Laser Rangefinder Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik LRB 4000CI Specs | Prism Type | Porro | | Magnification | 7x | | Objective Lens Diameter | 50 mm | | Angle of View | 5° | | Field of View | 263' (87 m at 1000 m) | | Laser Type | Eye-safe class 1 | | Maximum Range | 4374 yd (4000 m) | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 18 mm | | Diopter Correction | ±4 | | Focus Type | Individual | | Weatherproofing | IP66-rated water resistant | | Tripod Socket | Yes | | Power Source | One 9 V battery | | Dimensions | 8.3 x 5.9 x 3.1" (21.0 x 15.0 x 8.0 cm) | | Weight | 2.9 lb (1300 g) | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 13.6 x 12.0 x 6.0" |
