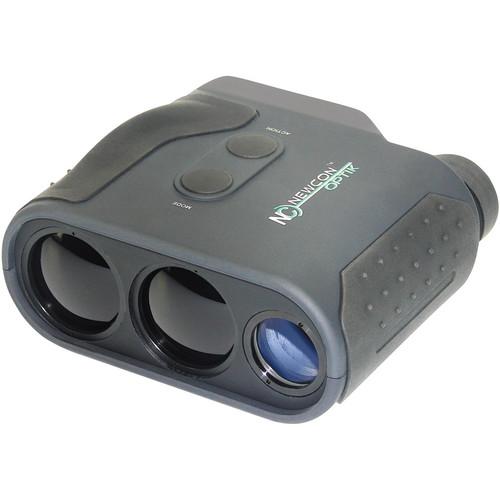

User Manual for Newcon Optik LRM 1500M 7x25 Rangefinder Monocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik LRM 1500M 7x25 Rangefinder
- Product category: Laser Rangefinders Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Rangefinders
|
User manual for the Newcon Optik LRM 1500M 7x25 Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Measuring up to 1640 yards, the LRM 1500M 7x25 Rangefinder Monocular from Newcon Optik offers user-friendly and reliable performance. Accurate to within one yard, this rangefinder utilizes an eye-safe class 1 laser, proprietary circuitry, and an in-view LCD, and features selectable reticle options, measurement memory recall, and target measurement reliability indicator. Fully multi-coated lenses maximize light transmission for a bright image. A rubber armored housing and oversized interface buttons provides the device with a non-slip grip that will come in handy while wearing gloves or when conditions are cold or wet. Further enhancing the construction features, this rangefinder is water-resistant and built to operate in freezing temperatures. Fully multicoated optics, built-in tripod mounting thread, and a battery-saving auto-off function make the LRM 1500M a full-featured rangefinder for a wide range of recreational activities. - Optical Performance
-
- 7x magnification, 25mm objective
- Fully Multi-coated lenses
- Eye-safe 905nm class 1 laser
- 10-1640 yd (10-1500m) range with 1-yard accuracy
- 1-yard measurement resolution, half-second estimated measurement time
- 8° field of view, 56° apparent viewing angle
- ±4 diopter adjustment range
- Use and Handling
-
- 10 measurement memory recall
- Selectable reticle
- Measurement reliability indicators
- Scan mode for continuous measurement
- Measurement display in yards/meters
- Low-battery indicator
- Single 9V battery operation
- 1/4" tripod mounting thread
- Construction Features
-
- Water-resistant housing with rubber armoring
- -13 to 122°F (-25 to 50°C) operating temperature
- 5.0 x 5.0 x 2.4" (13.0 x 12.5 x 6.0 cm) dimensions
- 15.7-ounce (445g) weight
UPC: 627973517351 In the Box Newcon Optik LRM 1500M 7x25 Rangefinder Monocular Carrying Case Neck Strap 9V Battery Lens Cloth Lens Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik LRM 1500M 7x25 Rangefinder Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik LRM 1500M Specs | Magnification | 7x | | Objective Lens Diameter | 25mm | | Angle of View | 8° | | Laser Type | Class 1, 905 nm | | Resolution | 3.3' / 1 m | | Metering Range/Accuracy | 10-1640 yd (10-1500 m) / ±3.3' (1 m) | | Exit Pupil Diameter | 3.6 mm | | Eye Relief | 15 mm | | Weatherproofing | IP63-rated Water Resistance | | Tripod Socket | Yes, 1/4" | | Power Source | 1 x 9V Battery | | Dimensions | 5.0 x 5.0 x 2.4" / 13.0 x 12.5 x 6.0 cm | | Weight | 15.7 oz / 445.1 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.559 x 6.535 x 3.543" |
