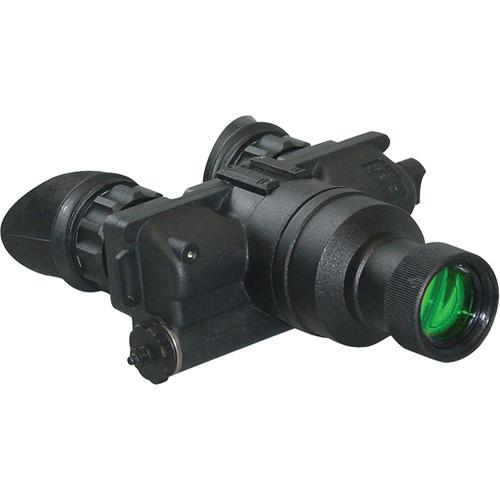

User Manual for Newcon Optik NV66 1x Gen 2 Night Vision Biocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik NV66 1x Gen 2
- Product category: Night Vision Bi-Oculars Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Night Vision Bi-Oculars
|
User manual for the Newcon Optik NV66 1x Gen 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The NV66 1x Gen 2 Night Vision Biocular from Newcon Optik is second generation night vision device designed for close-range applications. This configuration of the night vision biocular comes with an unmagnified 1x lens that transmits an angular field of view of 40°. At the core of this biocular is a Gen 2 intensifier tube capable of up to 51lp/mm resolution and 18:1 signal-to-noise ratio, delivering adequate low-light images for most recreational activities. Since the Gen 2 intensifier tube has below a 1250 figure of merit rating, this NVS biocular is not restricted by United States ITAR export regulations. In addition to the f/1.2 lens system and 64lp/mm tube resolution, this biocular also meets Mil-Std 810 specifications for weatherproof performance. Even in heavy rain, subzero temperatures, or extreme humidity, the NVS-7 is built to consistently deliver. The NVS's dual-ocular design and long 25mm eye relief make this NVD well-suited for comfortable viewing during long-duration observations. An integrated infrared illuminator, flexible rubber eyecups, and adjustable interpupillary distance make the NVS-7 a full-featured NV biocular for a wide range of low-light glassing tasks. - Optical Performance
-
- 1x magnification, 27.5mm focal length, 40° angle of view
- Manual focus lens with 10" (0.25 m) minimum focus distance
- f/1.2 light gathering ability, 25mm eye relief
- Gen 2 tube with minimum 56 lp/mm resolution, 18:1 signal-to-noise ratio, 10,000 FOM
- Use and Handling
-
- Built-in infrared illuminator
- Manual focus lens
- Individual focus oculars
- Interchangeable lens mount
- 57-73mm adjustable interpupillary distance
- In-view low-battery and IR activation indicators
- Construction Details
-
- Waterproof to 3.3 ft (1m) for 30 minutes
- -58 to 131°F (-50 to 55°C) operating temperature
- 6x4.7x2.1" (15x12x5.5 cm) dimensions
- 17 oz (480 g) weight
In the Box Newcon Optik NV66 1x Gen 2 Night Vision Biocular Lens Cap Neck Strap Soft Case 2 x AA Batteries Operator's Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik NV66 1x Gen 2 Night Vision Biocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NV6-6 Specs | Intensifier Tube | Gen 2 | | Resolution | Minimum 56 lp/mm | | Signal to Noise Ratio | 18:1 | | Magnification | 1.0x | | Angle of View | 40° | | Lens System | f/1.2 | | Focal Length | 27.5 mm | | Minimum Focus Distance | 10" ft (0.25 m) | | Eye Relief | 15 mm | | Exit Pupil | 18.5 mm | | Dioptric Correction | -6 to +5 | | Interpupillary Adjustment | 57 - 73 mm | | Infrared Illuminator | Yes | | Power Supply | (2) AA batteries | | Runtime | Up to 80 hours of continuous operation at room temperature (IR off) | | Weatherproofing | Waterproof to 3.3 ft (1m) for 30 min | | Operating Temperature | -58 to 131° (-50 to 55°C) | | Tripod Mount | None | | Dimensions | 6 x 4.7 x 2.1" (15 x 12 x 5.5 cm) | | Weight | 17 oz (480 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 9.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
