User Manual for Newcon Optik NVS-14 Autogated 3rd Gen NVD Monocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik NVS-14 Autogated 3rd Gen
- Product category: NV Monoculars & Multi-Systems Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik NV Monoculars & Multi-Systems
|
User manual for the Newcon Optik NVS-14 Autogated 3rd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|

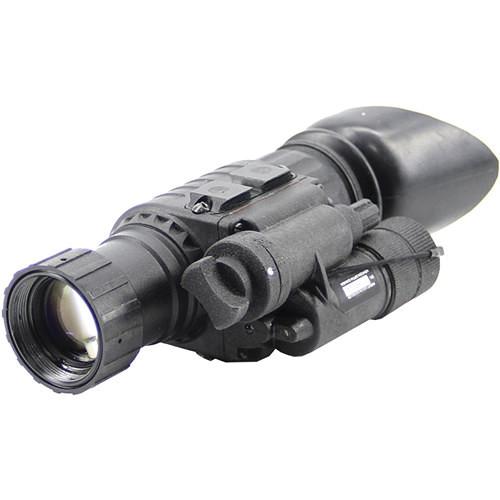

Product description The NVS-14 Autogated 3nd Gen NVD Monocular from Newcon Optik features a 64 lp/mm high resolution 3rd generation intensifier tube with a Gallium Arsenide (GaAs) photocathode. If you are moving through environments with changing infrared lighting conditions and need to adjust brightness of your images, you can use a manual gain control. The optical system features a 25mm f/1.2 lens, a 1x magnification, a 40° angular field of view, and a 10" minimum focus. If you are training or conducting a mission in complete darkness with no ambient infrared, you can use a built-in infrared illuminator to illuminate your targets.
The rugged, durable, and waterproof construction features a housing that can endure extensive temperature ranges and short submersions. Additionally, the monocular features a mounting point that allows it to be mounted to a barrel, a headgear, or another handheld device to form a binocular. Also included with this NVD are one AA battery, objective lens cap, arm mount, and a lens cleaning kit. - Intensifier Tube
-
- Autogated 3rd generation intensifier tube
- Black and white images
- Image resolution: 64 lp/mm
- GaAs photocathode
- Use and Handling
-
- The monocular can be used in handheld, mounted to a barrel or a head mount
- Manual gain control allows for manual control of brightness and detail
- Auto shutoff function helps to save battery life
- Optical Performance
-
- Main unit magnification: 1x
- Lens system: 25mm f/1.2
- Field of view: 40°
- Close focus: 10"
- Construction Details
-
- Mounting point allows connection to a headgear, barrel, or another handheld device
- Withstands extreme temperatures
- Waterproof, rated IP67
In the Box Newcon Optik NVS-14 Autogated 3rd Gen NVD Monocular - Headgear
- AA Battery
- Objective Lens Cap
- Arm Mount
- Lens Cleaning Kit
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik NVS-14 Autogated 3rd Gen NVD Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NVS 14-3AGBW Specs | Intensifier | Autogated 3rd generation
GaAs photocathode
64 lp/mm
SNR: 24 | | Magnification | 1x | | Angle/Field of View | Angular: 40° Linear: 210' @ 100 yd (70 @ 100 m) | | Lens System | 25mm f/1.2 | | Minimum Focus Distance | 10" (0.25 m) | | Eye Relief | 25 mm | | Dioptric Correction | -6 to +5 | | Interpupillary Adjustment | 52-74 mm | | Infrared Illuminator | Built-in illuminator | | Battery / Runtime | 1 x AA battery / 40 h max
1 x CR123 | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Waterproofing | Waterproof: IP67 | | Dimensions | 4.6 x 2.7 x 1.7" (118 x 69 x 48 mm) | | Weight | 10.6 oz (300 g) (without batteries) |
