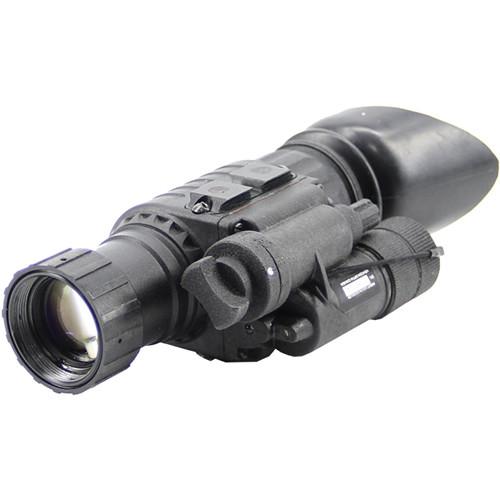

User Manual for Newcon Optik NVS 14 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik NVS 14 Night Vision
- Product category: NV Monoculars & Multi-Systems Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik NV Monoculars & Multi-Systems
|
User manual for the Newcon Optik NVS 14 Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The battle tested NVS 14 night vision monocular from Newcon Optik addresses military and law enforcement scenarios with the capability of observation under total darkness conditions. Features such as extreme durability combined with unprecedented image quality support its impeccable reputation. The heart of this night vision monocular goggle is its high performance 3rd generation intensifier with a specified resolution of 57-64 lp/mm. This tube ensures that your sight picture will be clear, sharp, and full of detail and contrast. Additionally, you can easily attach two NVS 14s together to create a fully operational stereoscopic binocular. Two possible types of standard batteries add flexibility to the device usage in field environment. A variety of accessories allows this NVD to be used with different types of helmets, attached to a camera or camcorder, a riflescope or as a 3x magnification night scope with an additional add-on lens. There are many variables that affect the distance that one can see with a night vision device; the object's size, ambient weather and lighting conditions, the level of detail needed for recognition, etc. The important factors to consider when evaluating any night vision device are the generation of the intensifier tube along with its specified resolution and s/n ratio. The magnification, clarity, and light transmission performance of the NVD's optics also contribute to its low/no-light performance capabilities. All NVDs sold by feature bright-light protection systems. However, this does not mean that bright light can/will not damage the device. Exposure to bright light compromises the longevity and performance of image intensifier tubes. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARrrdebrqedswaxy), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Integral IR illuminator for total darkness conditions
- Waterproof construction - submersible to 1.0 m for 30 minutes
- Third Generation XT Intensifier Tube
- Resolution: 57-64 lp/mm: Third generation intensifiers last longer and deliver brighter images with greater detail and less distortion than previous generations of night vision technology. XT: eXTreme Performance
In the Box Newcon Optik NVS 14 Night Vision Monocular Soft Case Arm Mount Headgear Objective Lens Cap "AA" Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik NVS 14 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NVS-14 Specs | Intensifier Tube | 3rd Generation | | Magnification | 1.0x | | Linear Field of View | 2100' @ 1000 yd / 697 m at 1000 m | | Minimum Focus Distance | 10.0" / 25.0 cm | | Eye Relief | 1.2" / 3.0 cm | | Dioptric Correction | ±5 | | Interpupillary Adjustment | Not applicable | | Lens System | 27.5mm f/1.17 Objective | | Infrared Illuminator | Yes | | Battery / Runtime | 1 "AA": >40 hr w/o IR - >20 hr w/ IR 1 CR123A: >80 hr w/o IR - >40 hr w/ IR | | Weatherproofing | Waterproof - 30 minutes @ 1.0 m | | Temperature Ranges | Operating: -58 to 131°F / -50 to 55°C | | Dimensions | 4.5 x 1.7 x 2.4" / 11.5 x 4.2 x 6.2 cm | | Weight | 0.66 lb / 300 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 9.0" |
