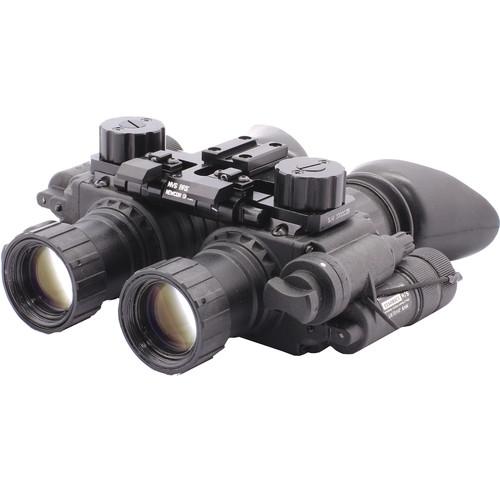

User Manual for Newcon Optik NVS-15 Autogated 3rd Gen NVD Binocular with a Headgear Click to enlarge the picture
Contents of the user manual for the Newcon Optik NVS-15 Autogated 3rd Gen
- Product category: Night Vision Binoculars Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Night Vision Binoculars
|
User manual for the Newcon Optik NVS-15 Autogated 3rd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The NVS-15 Autogated 3nd Gen NVD Binocular from Newcon Optik includes a headgear and features two 64 lp/mm high resolution 3rd generation intensifier tubes with GaAs photocathodes. If you are moving through environments with changing infrared lighting conditions and need to adjust brightness of your images, you can use a manual gain control. The optical system features a 27.5mm f/1.17 lens, a 1x magnification, a 40° angular field of view, and a 10" minimum focus. If you are training or conducting a mission in complete darkness with no ambient infrared, you can use a built-in infrared illuminator to illuminate your targets. The included headgear is completely adjustable and connect to this NVD via integrated adapter.
The rugged and durable construction features a housing that can endure extensive temperature ranges and is submersible to 3' for a half an hour. Additionally, the binocular features a modular design, where, the two tubes are completely independent entities that are connected by a bridge. Therefore, they can be disconnected and used independently while mounted to a barrel or as handheld devices. Also included with this NVD are headgear, two AA batteries, lens covers, a carry case, and a lens cleaning kit. - Intensifier Tube
-
- Two autogated 3rd generation intensifier tubes
- Black and white images
- Image resolution: 64 lp/mm
- GaAs photocathode
- Optical Performance
-
- Main unit magnification: 1x
- Lens system: f/1.17, 27.5mm focal length
- Field of view: 40°
- Close focus: 10"
- Use and Handling
-
- Modular design allows separate use of each monocular
- Each monocular can be used in handheld, mounted to a barrel or a head mount
- Proprietary bridge attachment allows adjustable interpupillary distance
- Manual gain control allows for manual control of brightness and detail
- Auto shutoff function helps save battery life
- Construction Details
-
- Mountable to the included headgear or used as handheld device
- Withstands extreme temperatures
- Waterproof submersible to 3' for 30 minutes
Note:2.6.2015. ms: the sales rep said their standard waterproofing is 1 meter for one hour submersion; all items come with AA batteries; one year warranty. In the Box Newcon Optik NVS-15 Autogated 3rd Gen NVD Binocular with a Headgear - Headgear
- 2 x AA Battery
- Soft Carry Case
- 2 x Lens Covers
- Lens Cleaning Kit
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik NVS-15 Autogated 3rd Gen NVD Binocular with a Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NVS 15-3AGBW Specs | Intensifier Tube | Autogated 3rd generation
GaAs photocathode
64 lp/mm
SNR: 24 | | Magnification | 1x | | Angle/Field of View | Angular: 40° Linear: 210' @ 100 yd (70 @ 100 m) | | Lens System | f/1.17
Focal length: 27.5 mm | | Minimum Focus Distance | 10" (0.25 m) | | Eye Relief | 25 mm | | Dioptric Correction | -6 to +5 | | Interpupillary Adjustment | 52-74 mm | | Infrared Illuminator | Built-in illuminator | | Battery / Runtime | 2 x AA battery / 40 hr max
2 x CR123 | | Weatherproofing | Waterproof to 3' (1 m) for 30 minutes | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Dimensions | 4.7 x 4.6 x 2.7" (120 x 118 x 69 mm) | | Weight | 28.5 oz (725 g) without batteries |
