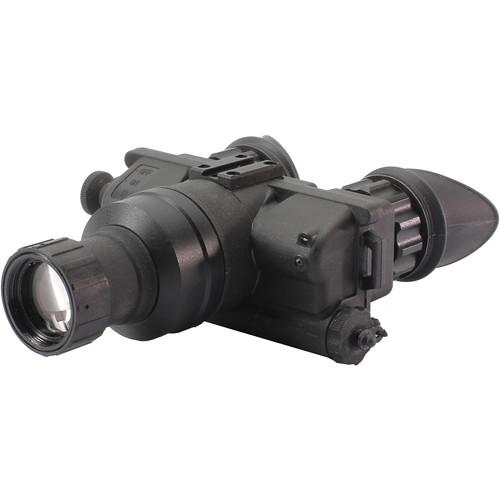

Product description The NVS-7 3rd Gen NVD Bi-ocular from Newcon Optik is a versatile night vision device that can be used with an included headmount, a helmet, or as a handheld device. It features an autogated 3rd generation intensifier tube with GaAs photocathode and resolution of 64 lp/mm. While the autogating of the intensifier allows to improve the tube life and resistance to bright light, the white phosphor technology allows you to view black and white images instead for green and white images. The optical system features a 27.5mm f/1.23 lens, a 1x magnification, a 40° angular field of view, and a 10" minimum focus. If you are training or conducting a mission in very low light conditions, you can use a built-in infrared illuminator to add brightness to your targets.
The rugged and durable construction features a waterproof housing that is submersible to 3' for 30 minutes and endures extensive temperature ranges. Also included with this NVD are two AA batteries, a lens cover, a carrying case, and a lens cleaning kit. - Intensifier
-
- 3rd generation intensifier tube
- Autogated
- White phosphor offers black and white images
- Image resolution: 64 lp/mm
- Optical Performance
-
- Main unit magnification: 1x
- Lens system: f/1.23, 27.5mm
- Field of view: 40°
- Close focus: 10"
- Construction Details
-
- Waterproof submersible to 3' for 30 minutes
- Withstands extreme temperatures
- Winged eyecups
In the Box Newcon Optik NVS-7 3rd Gen NVD Bi-ocular (Autogated, White Phosphor) - 2 x AA Batteries
- Objective Lens Cover
- Headgear
- Lens Cleaning Kit
- Soft Carrying Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik NVS-7 3rd Gen NVD Bi-ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik NVS 7-3AGBW Specs | Intensifier Tube | 3rd generation intensifier
Autogated
White phosphor
Photocathode material: GaAs | | Infrared Illuminator | Built-In | | Resolution | 64 lp/mm | | Magnification | 1x | | Lens System | f/1.23
Focal length: 27.5 mm | | Field of View | Angular: 40°
Linear: 210' @ 100 yd (70 @ 100 m) | | Diopter Adjustment | -6 to +5 | | Eye Relief | 25 mm | | Interpupillary Adjustment | 57-73 mm | | Minimum Focus Distance | 10" (0.25 m) | | Battery / Runtime | 2 x AA battery / 80 hr max | | Operating Temperature | -58 to 131°F (-50 to 55°C) | | Storage Temperature | -67 to 140°F (-55 to 60°C) | | Dimensions | 6 x 4.8 x 2.2" (150 x 120 x 55 mm) | | Weatherproofing | Waterproof, submersible to 3' for 30 minutes | | Weight | Without batteries: 17 oz (480 g) |
