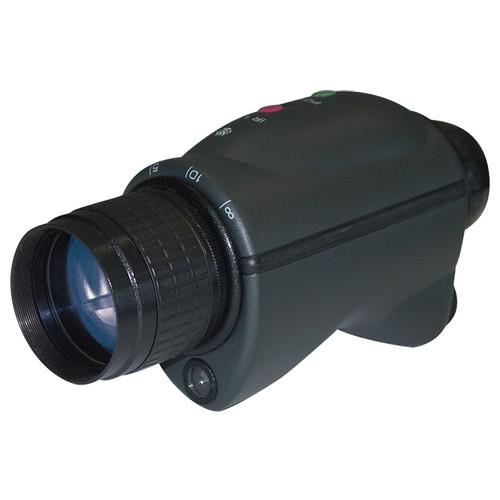

User Manual for Newcon Optik Phantom 2.3x 1st Generation Plus Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik Phantom 2.3x 1st Generation
- Product category: NV Monoculars & Multi-Systems Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik NV Monoculars & Multi-Systems
|
User manual for the Newcon Optik Phantom 2.3x 1st Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description The Phantom 2.3x42 Night Vision Monocular from Newcon Optik is designed to address any military, law enforcement or other professional user requirements to see under the darkest conditions. A compact and affordable generation 1+ unit.There are many different variables that effect the distance that one can see with a nightvision device, among them the object's size, the level of details being sought from the object and the conditions of observation. Nightvision devices detect much further under a full moon and clear skies than they will under a new moon and cloudy skies. Many different formulas are used to determine the statistic of maximum viewing range and this varies by manufacturer, so ultimately the generation of the intensifier tube is much more relevant than any quoted statistic when determining the maximum viewing range.All nightvision devices sold by B&H have mechanisms in place to protect the intensifier tube from a sudden burst of bright light, but this does not mean that bright light doesn't damage the device. No matter what, bright light in any form is not good for the longevity and performance of image intensifier tubes. - Camera/video adaptable for recording imagery
UPC: 627973203056 In the Box Newcon Optik Phantom 2.3x 1st Generation Plus Night Vision Monocular Camera/Video Adapter Lenscap Case Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik Phantom 2.3x 1st Generation Plus Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik Phantom 20 Specs | Intensifier Tube | 1st Generation + | | Maximum Viewing Range | Not specified by manufacturer | | Infrared Illuminator | Yes | | Magnification | 2.3x | | Angle of View | 16.0° | | Field-of-View (@ 1000 Yds) | 840' (279 m at 1000 m) | | Minimum Focus Distance | 3.3' (1.0 m) | | Lens System | 50mm f/1.2 (56mm objective lens diameter) | | Power Source | One CR2 3-volt lithium battery | | Dimensions | 7 x 3.2 x 2.6" / 180 x 80 65 mm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 1.82 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 4.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
