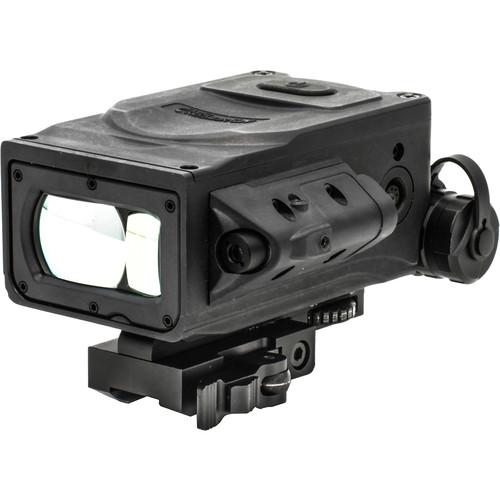

User Manual for Newcon Optik Seeker M Multi-Purpose Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Newcon Optik Seeker M Multi-Purpose Laser
- Product category: Laser Sights Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Laser Sights
|
User manual for the Newcon Optik Seeker M Multi-Purpose Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description Gain tactical advantage using the Newcon Optik Seeker M Multi-Purpose Laser Rangefinder. This laser rangefinder can accurately measure ranges up to 1.86 miles away and retrieve accurate target locations, thanks to the built-in GPS, compass, and inclinometer. At the core of the deice is a 1550nm eye-safe infrared laser that can scan targeted area with an azimuth angle of 360° and elevation angle of ± 60°. For proper referencing and alignments, the device also incorporates a second 635nm red laser. This optic also features a red OLED display, first/last target logic, and gating capability and can be interfaced with your computer using the included USB cable. To withstand rigorous conditions and adverse weather, the housing is waterproof (and submersible) and offers a built-in quick release Picatinny rail mount. - Laser Rangefinder
-
- 1.86-mile range
- 1550nm emission
- Eye-safe laser
- Azimuth: 360 ± 1°
- Elevation: ±60 ± 0.5°
- Built-in GPS and inclinometer allow retrieving precise target coordinates
- Additional 635nm (<5mW) red laser can be used as reference and alignments
- Use and Handling
-
- Built-in red OLED display
- USB computer interface
- First/last target logic
- Gating capability
- Construction
-
- Durable housing
- Built-in quick release Picatinny mount
- Waterproof with IPX67 rating
- Impact-resistant
UPC: 627973521013 In the Box Newcon Optik Seeker M Multi-Purpose Laser Rangefinder - Hard Case
- 2 x CR2 Batteries
- USB Computer Cable
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik Seeker M Multi-Purpose Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik SEEKER M Specs | | | Laser Type | Class 3R | | Laser Color | Red | | Peak Wavelength | 635 nm | | Peak Output | <5 mW | | | | Laser Type | Class 1 Eye Safe | | Peak Wavelength | 1550 nm | | Range of Illumination | 33 to 9842.5' / 10 to 3000 m | | | | Mount | Quick Release Picatinny | | | | Runtime | 3500 Measurements | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Storage Temperature | -31 to 140°F / -35 to 60°C | | Water Resistance | Waterproof, IPX67 | | Dimensions | L: 4.5 x W: 2.5 x H: 2.7" / L: 11.5 x W: 6.3 x H: 7.0 cm | | Weight | 10.6 oz / 300.0 g |
