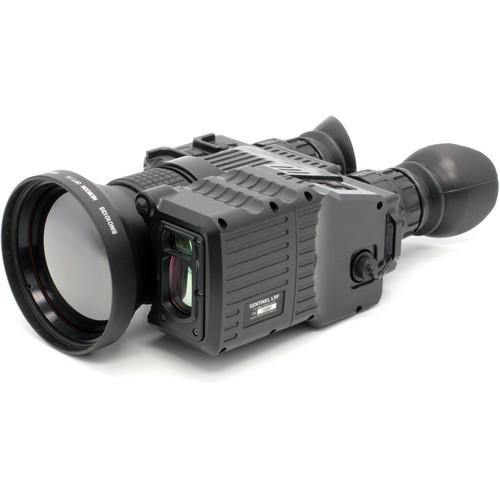

Product description Enhance your covert and intelligence operations using the Newcon Optik SENTINEL LRF 640 Thermal Rangefinder Bi-Ocular. This versatile device combines high-resolution thermal imaging and laser range-finding capabilities. Designed as a bi-ocular optic, it reduces fatigue by allowing you to conduct observations with both eyes. Its 640 x 512 uncooled sensor, combined with wide field optics, allows you to view a thermal profile of the scene at a 9 Hz refresh rate, and detect and recognize targets and their activity at ranges up to 1.86 miles. This infrared camera is enhanced with a built-in 1.55µm eye-safe laser rangefinder and a compass, delivering precise target distance, azimuth, and elevation to the internal display. In addition, the bi-ocular generates a video output in NTSC or PAL formats that can be delivered to an external monitor or a recording device. To provide years of service and to withstand challenging conditions and adverse weather, this thermal rangefinder is outfitted with a durable, waterproof housing that is ergonomic and provides a standard 1/4"-20 socket for mounting on a tripod for long-term observations. It also offers eyepieces with diopter adjustments and rubberized eyecups. - Imaging & Optical Performance
-
- 640 x 512 uncooled sensor
- Spectral Range: 7 - 14µm
- Sensitivity: <50 mk
- 9 Hz refresh rate
- 75mm lens system
- Field of View: 8 x 7°
- 2 - 4x digital zoom (8x optional)
- 25mm eye relief
- Ranging Laser
-
- 1.55µm eye-safe emission
- Ranging and Accuracy: 3280.8 yards with an accuracy within ± 1.1 yards
- Azimuth Scan: 360°
- Elevation Scan: ±60°
- Built-in magnetic compass with digital output
- Use and Handling
-
- NTSC or PAL video output
- 1/4"-20 tripod socket
- Diopter Adjustment Range: +2 to -6
- Construction
-
- Ergonomic housing
- Rubber eyecups
- Waterproof
- Weight: 3 pounds
UPC: 627973520528 In the Box Newcon Optik SENTINEL LRF 640 Thermal Rangefinder Bi-Ocular (9 Hz) - Soft Carry Case
- 4 x AA Batteries
- USB Cable
- Video Cable
- Lens Cover
- Shoulder Strap
- Lens Cleaning Cloth
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik SENTINEL LRF 640 Thermal Rangefinder Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik SENTINEL LRF 640 Specs Array Configuration | 640 x 512 uncooled bolometer | Sensitivity | <50 mK @ F 1.0 | Spectral Response | 7 - 14 µm | Magnification | 2x, 4x (8x optional) | Field of View | 8 x 7° | Lens System | 75mm focal length | Refresh Rate | 9 Hz | Laser | Wavelength: 1.55 µm Azimuth: 360° Elevation: ±60° Range: 3280.8 yd / 3000 m Accuracy: ±1.1 yd / ±1 m | Eye Relief | 25 mm | Diopter Adjustment | +2 to -6 | Video Output | PAL or NTSC | Power Source | Default Configuration: 6 x AA Batteries / Runtime: 8 h Optional Configuration: 4 x AA Batteries | Weatherproofing | Waterproof | Operating Temperature | -40 to 122°F / -40 to 50°C | Dimensions | 7.8 x 5.7 x 3.5" / 19.7 x 14.5 x 9.0 cm | Weight | 3.0 lb / 1.4 kg |
