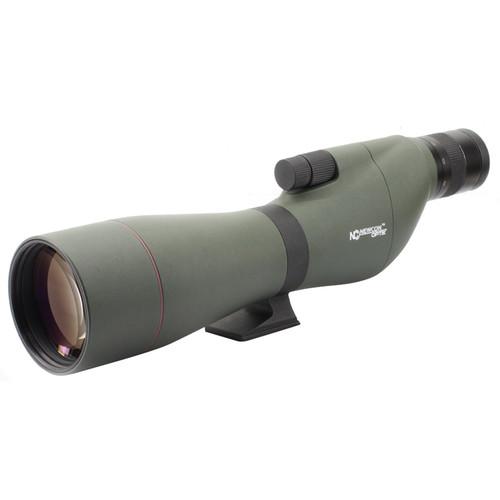

User Manual for Newcon Optik Spotter ED 20-60x85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Newcon Optik Spotter ED 20-60x85 Spotting
- Product category: Spotting Scopes Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Spotting Scopes
|
User manual for the Newcon Optik Spotter ED 20-60x85 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More ttwreacsyuuuaswbdfyazwevqrc At the core of the straight-viewing Newcon Optik Spotter ED 20-60x85 Spotting Scope are extra-low dispersion (ED) glass elements that produce bright, high-contrast images that are color faithful and rich with detail. The over-sized 85mm objectives, coupled with their fully multi-coated optics and BAK4 prisms, efficiently transmit light and preserve image quality, which enables the scope to render clear views even in low-light conditions.The Spotter's nitrogen-filled polycarbonate housing is water and fogproof, making it able to handle extreme weather and temperatures. The rubber-armored body absorbs light shock in addition to providing an enhanced grip when conditions get wet or while wearing gloves. Complementing the Spotter ED optical features and build quality is a retractable dew shield built into the objective bell, which can further enhance image quality by blocking stray light from causing glare. The eyepiece is set parallel to the optical tube and an included anodized aluminum tabletop tripod makes this an ideal grab-and-go scope for most glassing needs. If you want to put it on your own support system, its 1/4"-20 socket makes it compatible with most photo tripods and quick-release plates. Also included is a stay-on view-through soft case to protect it even when you're using it. - Optical Performance
-
- Variable 20-60x zoom eyepiece
- Large 85mm objective lens
- BAK4 prism configuration
- Extra-low dispersion (ED) glass corrects for chromatic aberration for improved contrast and color fidelity
- Fully multi-coated optics improve light transmission to produce brighter, high-contrast images
- 105-52.5' field of view at 1000 yards
- Use and Handling
-
- Straight-viewing eyepiece
- Sliding dew shield reduces solar glare
- ±7 dioptric correction
- Long and comfortable 19.6-17.8mm eye relief
- 4.25-1.4mm exit pupil
- 1/4"-20 tripod mount
- Tripod
- Compact tabletop design
- Anodized aluminum legs with padded leg wraps
- Height: 10"
- 360° pan range
- -60/+90° tilt range
- Construction Details
-
- Corrosion-, impact-, and temperature-resistant polycarbonate chassis
- Protective rubber armoring
- Nitrogen filled and O-ring sealed for water and fogproof performance
- IP67-rated, submersible to 3.3' for 30 minutes, dustproof
- Stay-on view-through soft carrying case
- Flip-down objective and ocular caps
- Operating temperature: -40 to 140°F
- Weight: 3.3 pounds
In the Box Newcon Optik Spotter ED 20-60x85 Spotting Scope (Straight Viewing) Soft View-Through Carrying Case Tabletop Tripod Lens Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik Spotter ED 20-60x85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik SPOTTER ED Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 85 mm | | Field of View | 20x: 105.0' @ 1000 yd / 34.9 m @ 1000 m
60x: 52.5' @ 1000 yd / 17.5 m @ 1000 m | | Minimum Focus Distance | 23.0' / 7.0 m | | Exit Pupil Diameter | 20x: 4.25 mm
60x: 1.4 mm | | Eye Relief | 19.6 to 17.8 mm | | Diopter Correction | -7.0 to +7.0 | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Water Resistant, IP67 | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 17.0 x H: 6.9 x W: 4.1" / L: 43.2 x H: 17.4 x W: 10.5 cm | | Weight | 3.3 lb / 1.5 kg |
