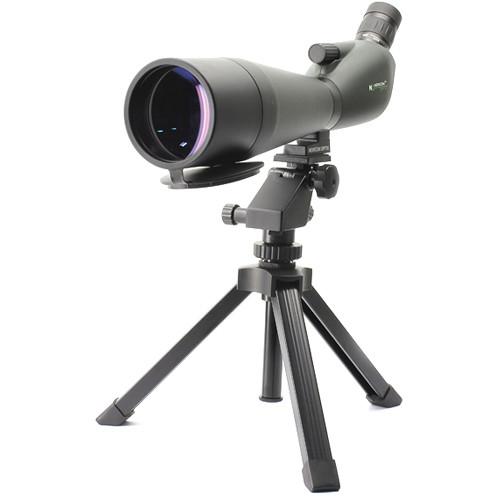

User Manual for Newcon Optik Spotter NC 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Newcon Optik Spotter NC 20-60x80 Spotting
- Product category: Spotting Scopes Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Spotting Scopes
|
User manual for the Newcon Optik Spotter NC 20-60x80 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The angled-viewing Spotter NC 20-60x80 Spotting Scope from Newcon Optik is a weatherproof optic designed for intermediate- to long-range outdoor observations. The polycarbonate housing is nitrogen filled and O-ring sealed to protect the optics from fogging due to extreme humidity and heavy rainfall. A rubber-armored exterior provides an enhanced grip when wearing gloves or when conditions get wet and helps to absorb light shock from being transferred to the glass elements.The highly reflective BAK4 prisms preserve image quality and render a view through the eyepiece that is color faithful and bright enough for twilight-hour use. This scope's angled-view configuration permits the observer to mount the scope at lower heights than its straight-view counterparts. An inclined viewing angle is also easier on the observer's back and neck during long-duration observations and while digiscoping.In addition to the optical features and build quality, the Spotter NC also delivers the functionality needed for a wide range of glassing applications. Optional adapters allow this spotting scope to be paired with a night-vision monocular for low-light/no-light observations or a point-and-shoot camera for digiscoping. An included anodized steel tripod, padded carrying case, and sliding sunshade complement the Spotter NC, making it a user-friendly spotting scope kit for almost any recreational activity. - Optical Performance
-
- 20-60x magnification
- 80mm objective lens
- BAK4 prisms
- 89-44' field of view at 1000 yd
- ±7 diopter adjustment range
- 18-15mm eye relief
- Use and Handling
-
- Angled-view eyepiece
- Flip-down objective cap
- Sliding sunshade for blocking stray light
- Included tripod with 360° rotation and -60 to 90° tilt
- Anodized steel tripod legs, 10” tripod height
- Optional adapter for digiscoping with point-and-shoot camera
- Construction Details
-
- Nitrogen-filled fog & waterproof housing
- Rubber-armored polycarbonate housing
- Built-in tripod mounting foot
- -22 to 140°F operating temperature
- 45.9 oz weight
In the Box Newcon Optik Spotter NC 20-60x80 Spotting Scope (Angled Viewing) Padded Soft Carrying Case Lens Cover Set Tripod Lens Cloth Operator's Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik Spotter NC 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik SPOTTER NC Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Field of View | 20x: 89.0' @ 1000 yd / 27.1 m @ 1000 m
60x: 44.0' @ 1000 yd / 13.4 m @ 1000 m | | Eye Relief | 18.0 to 15.0 mm | | Diopter Correction | -7.0 to +7.0 | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Dimensions | L: 13.2 x H: 6.7 x W: 3.7" / L: 33.5 x H: 17.0 x W: 9.5 cm | | Weight | 45.9 oz / 1.3 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 12.0" |
