User Manual for Newcon Optik TVS 11M 640 Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Newcon Optik TVS 11M 640 Thermal
- Product category: Thermal Imagers Newcon Optik
- Brand: Newcon Optik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Newcon Optik Thermal Imagers
|
User manual for the Newcon Optik TVS 11M 640 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Newcon Optik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Newcon Optik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Newcon Optik product will considerably shorten its lifespan!
|

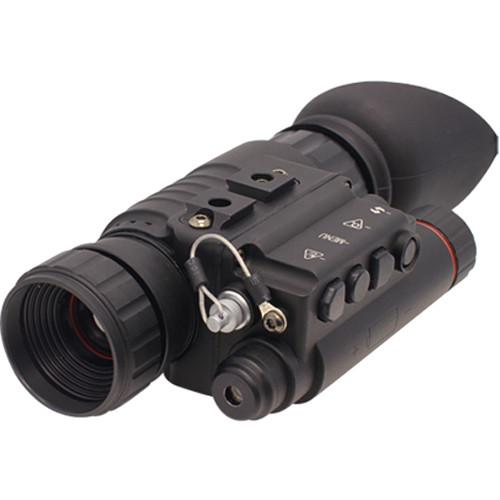

Product description Lightweight, compact, and equipped with an IR laser pointer, the Newcon-Optik TVS 11M 640 Thermal Monocular is a multi-purpose optic designed for military, police, and search & rescue applications. Offering color display options to suit conditions and the ability to store video and photos, the TVS 11M 640 can be used handheld, helmet mounted, or weapon mounted on a rifle, machine gun, or anti-armor system. Its uncooled thermal sensor delivers sharp images for up to four hours on a fresh set of two CR123A batteries.
Continuous 1-4x digital zoom allows the operator to observe distant details, and the 17.7 x 14.2° field of view provides a wide image. Waterproof to MIL-STD-810G standards, the unit weighs 14.5 ounces and measures 5.9 x 2.8 x 2.0". - Thermal Sensor/Display/Optical Performance
-
- Detection/recognition/identification range, human: 1276/319/160 yards
- Detection/recognition/identification range, vehicle: 3452/862/432 yards
- Uncooled thermal sensor
- 640 x 512 resolution
- Spectral response: 7.5-13.5µm
- Detects temperature from -40 to 572°F
- Continuous 4x digital zoom
- 17.7 x 14.2° field of view
- 1" eye relief
- Use and Handling
-
- Can be used handheld, helmet mounted, or weapon mounted on rifle, machine-gun, or anti-armor system
- Compatible with S Mount, QR Mount weapon mounting systems
- Video output and internal video and photo storage
- Multiple color display options
- IR laser pointer
- Aiming reticle
- Runs on two CR123A batteries
- Runtime: 4 hours using disposable batteries, 3 hours using rechargeable batteries
- Construction Details
-
- Waterproof to MIL-STD-810G standards
- Operating temperature range: -31 to 140°F (disposable batteries)
- Measures 5.9 x 2.8 x 2.0", weighs 14.5 ounces
In the Box Newcon Optik TVS 11M 640 Thermal Monocular Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Newcon Optik TVS 11M 640 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewcon Optik TVS 11M Specs | Array Configuration | Uncooled Thermal Sensor | | Spectral Response | 7.5-13.5µm | | Sensitivity | <40 mK | | Video System | PAL | | Display | 640 x 512 Color Display | | Magnification | Digital Zoom: 4x Continuous | | Focal Length | 35mm | | Field of View | 17.7 x 14.2° | | Eye Relief | 1" / 26 mm | | Dioptric Correction | ±5 | | Battery / Runtime | 2 x CR123A Rechargeable Battery / 3 Hours
2 x CR123A Disposable Battery / 4 Hours | | Detection Range | DRI, Human: 1276/319/160 yd / 1167/292/146 m
DRI, Vehicle: 3452/862/432 yd / 3157/789/395 m | | Operating Temperature | -31 to 140°F / -35 to 60°C (Rechargeable Batteries)
-40 to 149°F / -40 to 65°C (Disposable Batteries | | Weatherproofing | MIL-STD-810G | | Dimensions | 5.9 x 2.8 x 2.0" / 15.0 x 72 x 5.0 cm | | Weight | 14.5 oz / 410 g, Without Batteries |
