User Manual for NewerTech MAXPower 2-Port eSATA 6G Pro PCIe Controller Card Click to enlarge the picture
Contents of the user manual for the NewerTech MAXPower 2-Port eSATA 6G Pro
- Product category: Controller Cards NewerTech
- Brand: NewerTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewerTech Controller Cards
|
User manual for the NewerTech MAXPower 2-Port eSATA 6G Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewerTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewerTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewerTech product will considerably shorten its lifespan!
|

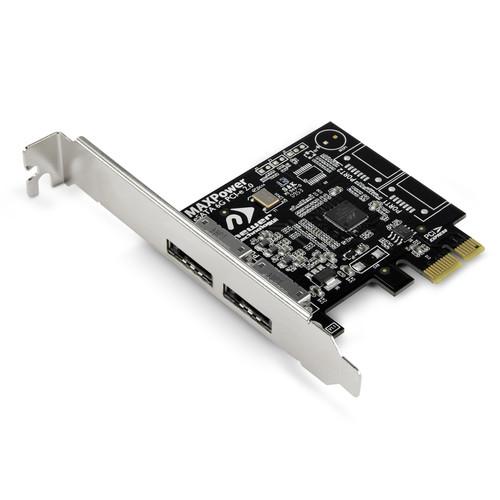

Product description The MAXPower eSATA 6G Pro PCIe Controller Card from NewerTech adds two internal or external eSATA ports to your Mac Pro, desktop PC, or Thunderbolt expansion chassis through a single PCIe 2.0 slot. It enables you to utilize the speeds of high-performance hard disk drives and solid-state drives, as well as SATA-based optical drives. It is fully backward compatible with PCIe 1.0 slots as well as previous generations of SATA 1.5 and 3Gb/s drives. The PCIe controller card is fully compliant with the industry standard Advanced Host Controller Interface (AHCI) and supports driverless installation without any future updates (requires driver for only Windows 8 and 8.1). Additionally, it uses the same connecting cables utilized by earlier SATA 1.5 and 3Gb/s devices for quick installation. UPC: 811643016408 In the Box NewerTech MAXPower 2-Port eSATA 6G Pro PCIe Controller Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewerTech MAXPower 2-Port eSATA 6G Pro PCIe Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewerTech NWTMXPCIE6G3S2 Specs | Input | 1 x PCIe slot | | Output | 2 x eSATA 6G port | | Chipset | Asmedia 1062 | | Software Requirements | Operating System:
OS X 10.6.8 or higher
Windows 7 or higher
Driver:
Driver not required for OS X
Driver required for Windows 8 or 8.1
Note: Boot Camp is not supported | | Hardware Requirements | Minimum: Mac or PC featuring a PCIe 1.0 slot
Recommended (Best Performance): Mac or PC featuring a PCIe 2.0 or higher slot
Note: Thunderbolt PCIe expansion chassis are supported | | Bootability | Supported on any compatible Mac
Windows 7 or higher with AHCI mode enabled in BIOS | | Max Sequential Read/Write Speed | Compressible Data - 1 Volume, 1 Port:
Read: 534 MB/s
Write: 495 MB/s
Compressible Data - 1 Volume, 2 Ports Shared:
Read: 775 MB/s
Write: 725 MB/s
Note: Speeds will vary based on drives used, setup, and other factors | | Hot Swap Support | Mac: 10.7.2 or higher
PC: any compatible PC | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Dimensions | 2.8 x 0.7 x 2.8" (69 x 19 x 71 mm) | | Weight | 1.6 oz (45 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.8 x 5.6 x 1.3" |
