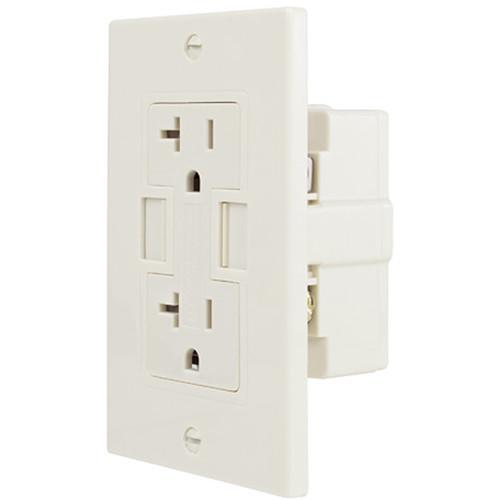

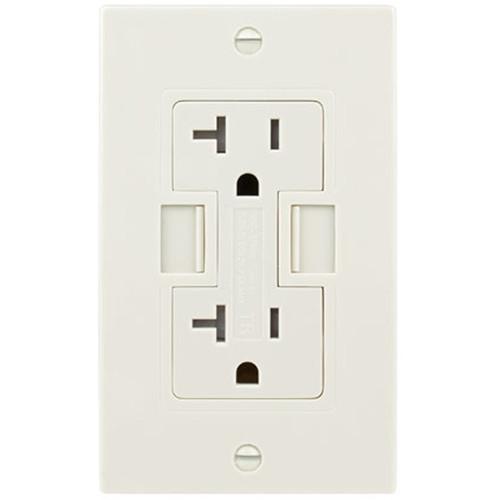

Product description The light almond Power2U 20A AC/USB Wall Outlet from NewerTech is a convenient and energy-efficient in-wall solution for powering and charging USB devices. The wall outlet helps you charge and/or power up to four devices simultaneously when using USB ports and the National Electrical Code (NEC) compliant tamper-resistant AC receptacles, while eliminating unsightly clutter created by multiple cables and bulky power adapters. - Dual-socket wall outlet with two integrated USB ports for powering and charging USB devices
- Unlike other similar products, the port and outlet layout of the Power2U doesn't create "plug barriers."
- This accessible design enables you to charge up to four devices simultaneously
- Offering a modern, centralized location for charging / powering USB devices, the Power2U has two energy-efficient features to complement its use convenience.
- The Smart Power design only outputs enough charging power required by the attached device, while spring-loaded safety shutters turn power off to the USB ports to eliminate "vampire" energy draw when a connecting cable is removed
- Offers a more compact design than previous models for an even easier installation
UPC: 811643012783 In the Box NewerTech Power2U AC/USB Wall Outlet (20A, Light Almond) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewerTech Power2U AC USB Wall Outlet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewerTech NWTPWR2U20ATRA Specs | Electrical | Grounding: Self
Amperage: 20 A
Voltage: 125 V
NEMA: 5-20 R compliant
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000 V per UL 498
DC Specifications: 5.2 V, 2500 mA (12.5 W) duplex USB charging receptacle with integrated on/off safety switch for USB power
HP Ratings: 125 V
AC: 58.8 A
Current Limiting: Full Rated Current
Temperature Rise:
Maximum contact temperature rise 78.62°F (25.9°C)
Maximum terminal temperature rise 75.38°F (24.1°C) | | Environmental | Flammability: Rated V-2 / UL94
Operating Temperature: -40 to 140°F (-40 to 60˚C) | | General | Color: Light Almond
Face Material: Polycarbonate
Body Material: Polycarbonate
Line Contacts: Brass Triple-Wipe .031 thick
Terminal Screws: Brass 10-32
Grounding Screw: Brass 8-32
Strap Material: Zinc-Plated Steel
Clamp Nuts: Zinc-Plated Steel
Ground Clips: Brass-Plated | | Mechanical | Terminal ID:
Brass: Hot
Green: Ground
Silver: Neutral
Terminal Accommodation: 14-10 AWG
Termination: Side | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.2 x 4.2 x 2.3" |
