User Manual for NewerTech Power2U AC USB Wall Outlet Click to enlarge the picture
Contents of the user manual for the NewerTech Power2U AC USB Wall Outlet
- Product category: Wall Plates & Installation Boxes NewerTech
- Brand: NewerTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewerTech Wall Plates & Installation Boxes
 |
User manual for the NewerTech Power2U AC USB Wall Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewerTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewerTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewerTech product will considerably shorten its lifespan!
|

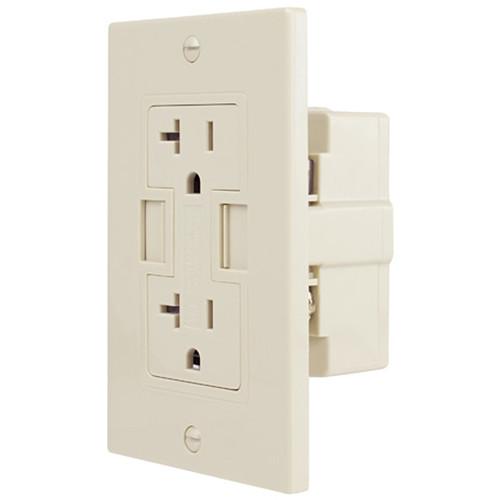

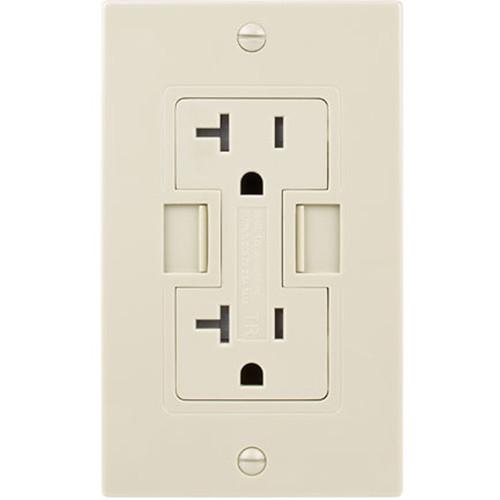

Product description The ivory Power2U 20A AC/USB Wall Outlet from NewerTech is a convenient and energy-efficient in-wall solution for powering and charging USB devices. The wall outlet helps you charge and/or power up to four devices simultaneously when using USB ports and the National Electrical Code (NEC) compliant tamper-resistant AC receptacles, while eliminating unsightly clutter created by multiple cables and bulky power adapters. - Dual-socket wall outlet with two integrated USB ports for powering and charging USB devices
- Unlike other similar products, the port and outlet layout of the Power2U doesn't create "plug barriers."

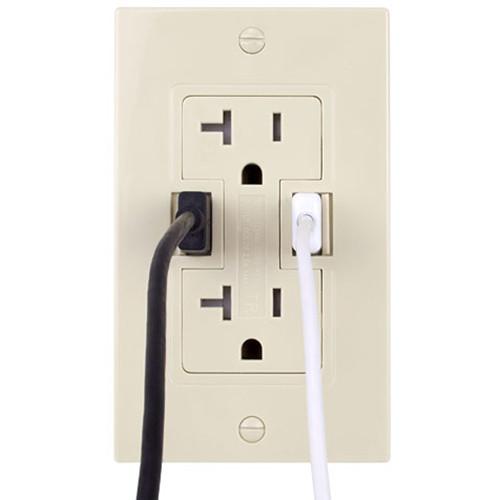

- This accessible design enables you to charge up to four devices simultaneously
- Offering a modern, centralized location for charging / powering USB devices, the Power2U has two energy-efficient features to complement its use convenience.
- The Smart Power design only outputs enough charging power required by the attached device, while spring-loaded safety shutters turn power off to the USB ports to eliminate "vampire" energy draw when a connecting cable is removed
- Offers a more compact design than previous models for an even easier installation
In the Box NewerTech Power2U AC/USB Wall Outlet (20A, Ivory) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewerTech Power2U AC USB Wall Outlet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewerTech NWTPWR2U20ATRI Specs | Electrical | Grounding: Self
Amperage: 20 A
Voltage: 125 V
NEMA: 5-20 R compliant
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000 V per UL 498
DC Specifications: 5.2 V, 2500 mA (12.5 W) duplex USB charging receptacle with integrated on/off safety switch for USB power
HP Ratings: 125 V
AC: 58.8 A
Current Limiting: Full Rated Current
Temperature Rise:
Maximum contact temperature rise 78.62°F (25.9°C)
Maximum terminal temperature rise 75.38°F (24.1°C) | | Environmental | Flammability: Rated V-2 / UL94
Operating Temperature: -40 to 140°F (-40 to 60˚C) | | General | Color: Ivory
Face Material: Polycarbonate
Body Material: Polycarbonate
Line Contacts: Brass Triple-Wipe .031 thick
Terminal Screws: Brass 10-32
Grounding Screw: Brass 8-32
Strap Material: Zinc-Plated Steel
Clamp Nuts: Zinc-Plated Steel

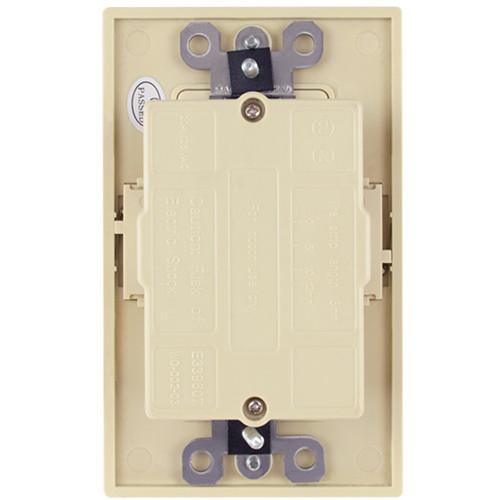

Ground Clips: Brass-Plated | | Mechanical | Terminal ID:
Brass: Hot
Green: Ground
Silver: Neutral
Terminal Accommodation: 14-10 AWG
Termination: Side |
