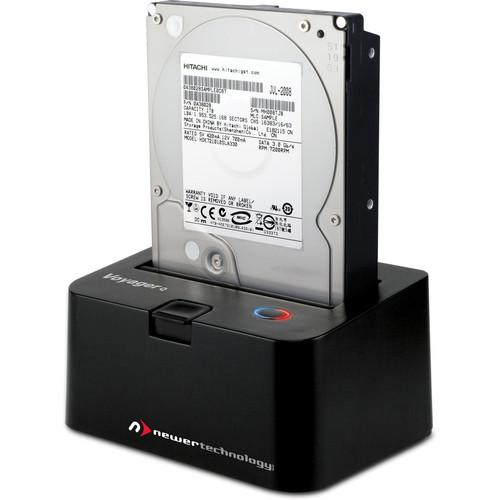

Product description The Voyager Q Quad Interface Dock for 2.5" and 3.5" Serial ATA Drives from Newer Technology is an extremely convenient way to access data on a SATA internal drive without having to install that drive into your computer. The Voyager Q can hold drives of either the 2.5" or 3.5" form factor that are no greater than 6TB in capacity and that are of any SATA standard, whether that's SATA 1.5 Gbps, SATA 3 Gbps, or SATA 6 Gbps. Within those criteria, this dock supports hard drives and solid state drives.

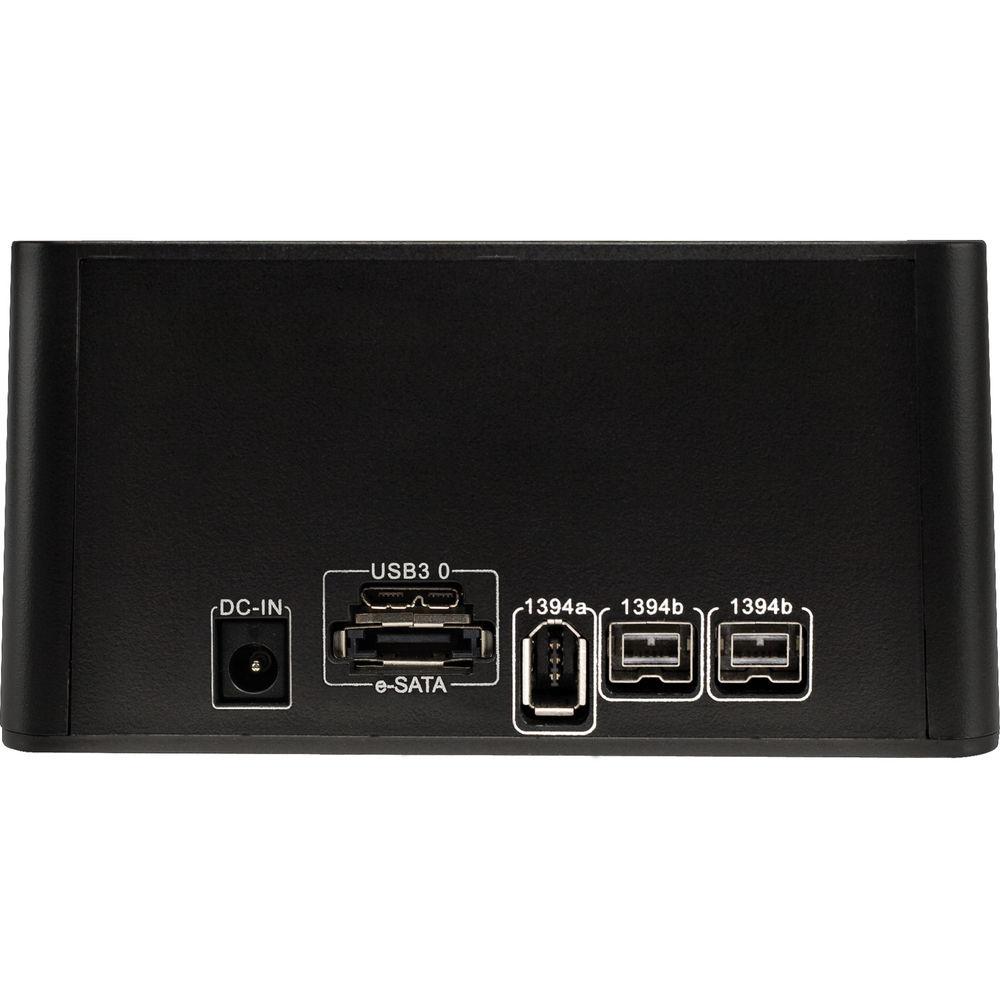

For connecting the dock to your computer, you have a bounty of interfaces. The dock features a super-fast USB 3.0 port, one eSATA port, two FireWire 800 ports, and one FireWire 400 port. With the USB 3.0 interface, you can transfer data at a blazing maximum rate of 5 Gbps. Plus, that interface is backwards compatible with USB 2.0 or 1.1 connections. With all of these ports, you can connect the dock to your Mac or Windows computer and let the data flow. - Supports all SATA 1.5 Gbps, 3 Gbps, or 6 Gbps drives that have a form factor of either 2.5" or 3.5" and that are no greater than 6.0TB in capacity. That means, you can connect hard disk drives (HDD) or solid state drives (SSD) to the dock
- This dock features a "Quad Interface" that allows you to transfer data at super-fast rates. The four interfaces also give you enough flexibility to connect with a variety of computer systems
- The dock supports a maximum data transfer rate of up to 5.0 Gbps or 500 MB/s via its fastest interface, USB 3.0
- The push button drive eject button allows you to safely remove the drive
- The dock includes a hinged flap for 3.5" drive access
- Hot-Swap functionality allows you to quickly access multiple SATA drives by switching them in and out
- The weighted base and non-skid rubber feet offer stable operation
- The dock features a two color status LED. When the left side is blue, it indicates that the dock is powered on; when the right side is flashing red, it indicates "Disk Activity"
- The dock features a compact design
- The dock is whisper quiet to operate and does not require a cooling fan
- The dock is plug-and-play with Mac and Windows computers via the USB or FireWire interfaces. Use of the eSATA interface requires a system reboot in order to recognize drive
- All interface connection cables are included
- The dock features a limited one-year warranty

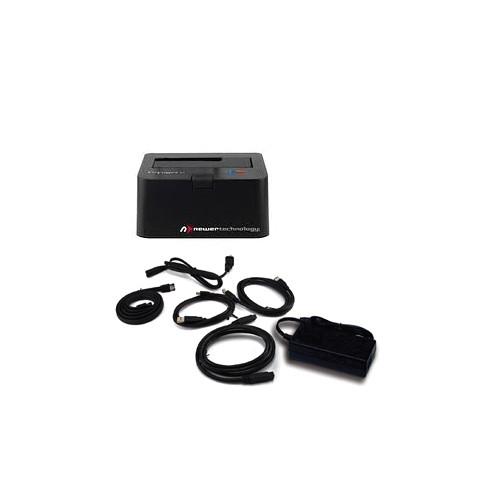

UPC: 811643011601 In the Box NewerTech Voyager Q Quad Interface Dock for 2.5" and 3.5" Serial ATA Drives 2.5" & 3.5" SATA 6Gb/s, 3Gb/s or 1.5Gb/s Drive Connector Hinged Flap for 3.5" Drive Access Drive Eject Lever for Safe Removal of 3.5" Drives UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12 Volt 3 Amp output Power Supply 36" High Quality Double Shielded FireWire 800 Connecting Cable (9-9 Pin cable) 36" High Quality Double Shielded FireWire 400 Connecting Cable (6-6 Pin cable) 36" High Quality USB 3.0 (Standard-B to Standard-A) USB 2.0 Backwards Compatible Cable 36" High Quality Double Shielded eSATA Connecting Cable Voyager Q Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewerTech Voyager Q Quad Interface Dock for 2.5" and 3.5" Serial ATA Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewerTech Voyager Q Specs | Number of Bays | 1 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s))
2 x 9-Pin FireWire (FireWire 800)
1 x 6-Pin FireWire (FireWire 400) | | Compatible Drive Interface | SATA III | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 3 A | | | | Dimensions (W x H x D) | 5.3 x 3.7 x 2.7" / 13.4 x 9.4 x 6.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 6.8 x 6.2 x 4.3" |
