NewerTech Voyager S3 USB 3.0 Dock

Search your instruction manual in PDF to download

User Manual for NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD

Click to enlarge the picture
NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD Contents of the user manual for the NewerTech Voyager S3 USB 3.0 Dock
  • Product category: Hard Drive Enclosures & Docks NewerTech
  • Brand: NewerTech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NewerTech Hard Drive Enclosures & Docks

NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD
User manual for the NewerTech Voyager S3 USB 3.0 Dock contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NewerTech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NewerTech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NewerTech product will considerably shorten its lifespan!



Product description

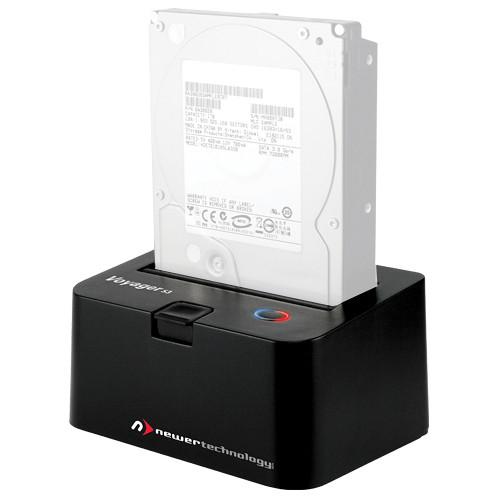

If you have spare hard drives lying around and you want an easier way to read them than throwing them back into your computer chassis, then you need the Newer Technology Voyager S3 USB 3.0 Dock for 2.5"/3.5" SATA I/II/III HDD. This unique docking station can read almost any 2.5 or 3.5" drive, up to 6TB (support for drives over 2TB requires Windows XP 64-bit and later, or Mac OS X 10.2 or later) in all SATA I/II/III interfaces. There's a push-button eject for safe removal, a 2-color status LED, and it uses the ASMedia 1051e chipset. If your system's BIOS allows booting from its USB 3.0 or USB 2.0 interface, you can even use this as an external start up drive. The weighted base and non-skid rubber feet ensure stable operation, and the compact design won't significantly impact your workspace. It's quiet, and no cooling fan is needed, so you won't even know it's there. It even includes a USB 3.0 cable for out-of-the-box operation. It's compatible with Mac, PC, and Linux operating systems.

General Features

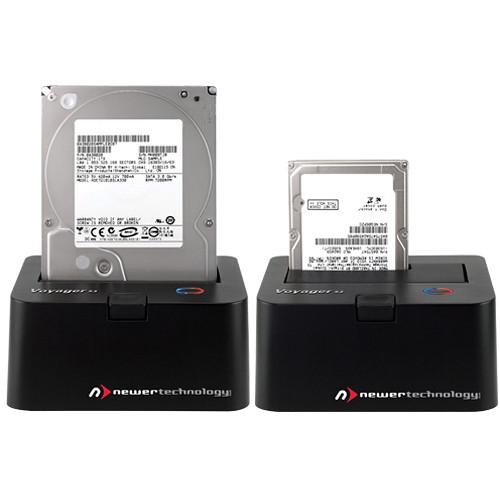

  • Supports 2.5" and 3.5" SATA I/II/III drives and SSD drives up to 6TB

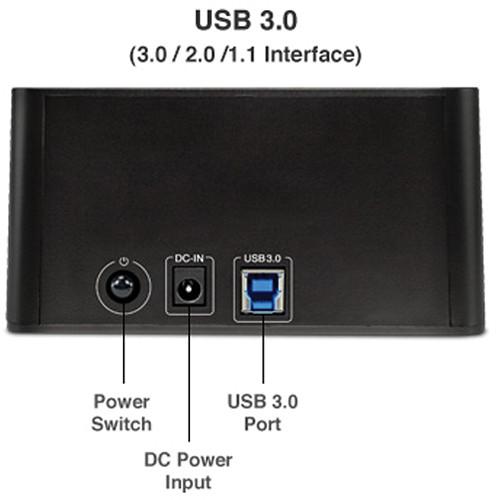

  • USB 3.0 Type-B interface
  • Data transfer rates up to 5 Gb/s (500 MB/s)
  • Push-button drive eject for safe removal
  • Hot-swap functionality for fast access of multiple SATA drives
  • Weighted base and non-skid rubber feet for stable operation
  • 2-Color Status LED:
    - Left: Blue = Power
    - Right: Flashing Red = Disk Activity
  • Compact design
  • Quiet operation, no cooling fan needed
  • Plug-and-play with Macs and PCs
  • All interface connection cables included
  • RoHS compliant
  • CE approved
UPC: 811643010505 In the Box NewerTech Voyager S3 USB 3.0 Dock for 2.5"/3.5" SATA I/II/III HDD

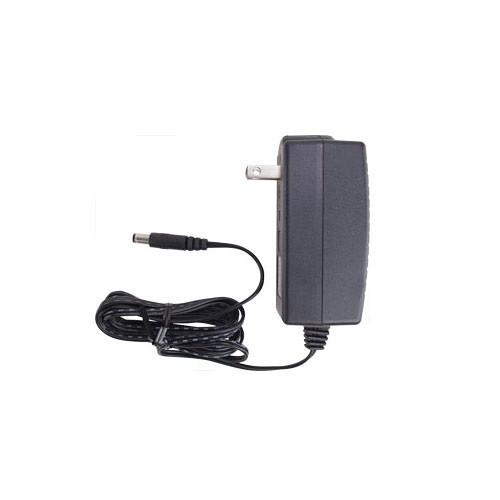

  • 100-240 VAC Power Supply
  • USB 3.0/2.0 Type-B to Type-A Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NewerTech Voyager S3 USB 3.0 Dock for 2.5" 3.5" SATA I II III HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NewerTech NWTU3S3HD Specs

    Number of Bays 1 x 2.5"/3.5"
    Connections 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
    Compatible Drive Interface SATA III
    Operating System Support Windows, macOS/OS X
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 12 VDC at 3 A
    Material of Construction Plastic
    Bridge Chipset ASMedia ASM1051E
    Dimensions (W x H x D) 5.3 x 3.7 x 2.7" / 134.1 x 94.0 x 68.1 mm
    Weight 1.4 lb / 0.6 kg
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 7.0 x 6.5 x 4.5"
