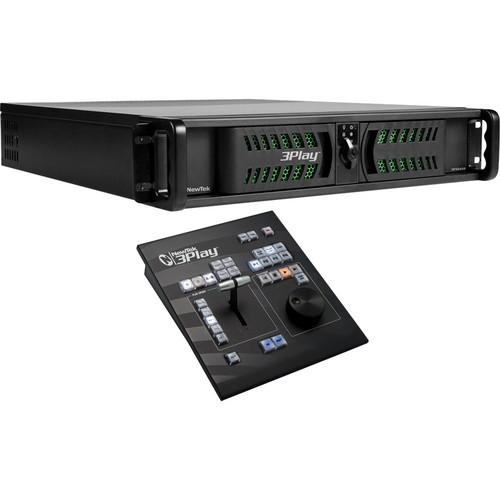

User Manual for NewTek 3Play 425 Full Unit Replay System with Controller Click to enlarge the picture
Contents of the user manual for the NewTek 3Play 425 Full Unit Replay
- Product category: Switcher Accessories NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Switcher Accessories
|
User manual for the NewTek 3Play 425 Full Unit Replay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|
Product description The 3Play 425 Full Unit Replay System with Controller from NewTek is a 6-channel instant-replay slow-motion HD video server with a controller unit designed for use in control rooms and production vehicles of all sizes.With support for removable storage devices and a recording capacity of up to 30 hours, you can perform marathon recording with ease, whenever and wherever required. The Unit Replay System uses session management to help ensure your data stays organized. It also comes with a slow-motion feature that enables you to break down highlights or analyze pivotal moments frame-by-frame.It can be used as a standalone unit, paired with the existing production system, or it can be teamed up with TriCaster over a local network. You can also streamline your entire operation with the NewTek live sports combo and have a complete, integrated live production solution using a fraction of the space typically required for sports production. - Big-Game Capability
- Hitting the 6-channel sweet spot for sports producers with 4 cameras in, 2 fully independent channels out, and a lightweight price point, this system offers professional, multi-camera replay coverage.
- Small Team Player
- What your crew lacks in numbers, it makes up for in terms of efficiency, productivity, and skills. With this system's ease of operation, any utility player on your team, from the rookie to the veteran, can step in and shine. The intuitive replay workflow is easy to learn, so your bases are always covered, no matter who the players are.
- Booth and Van-Friendly
- From mobile unit to press booth, this sleek unit's network-quality replay system tackles the away games as easily as it powers the home games. Slide easily into any existing production space or produce from places you've never been able to before. Every angle is just an SDI connection away.
- Multi-Game Workflow
- With 30 hours of recording capacity and removable storage you can easily perform marathon recording whenever required. Session management lets you keep games and clips organized. Additionally, built-in applications in this unit allow for importing and exporting of media content to handle any in-game or post-game file requirements.
- Show-Stopping Slow Motion
- Enjoy network-style presentation with smooth, interpolated slow motion. Break down highlights or analyze pivotal moments frame by frame, and with incredible detail.
- In-Game Highlights
- Build highlight or sponsor blocks at breakneck speed for instant replay on command during timeouts, or going into a break. Package the best plays, critical mistakes, and monumental moments together, and then add transitions and background sound for a strong finish.
- Standalone and Switcher-Friendly
- Functioning independently, connected to your existing production setup, or teamed up with TriCaster over a local network, this unit plays well with others. You can plug in the 3Play to multiply the inputs of your switcher. It also enables you to streamline your entire operation with the NewTek live sports combo and have a complete, integrated live-production solution using a fraction of the space traditionally needed for sports production.
In the Box NewTek 3Play 425 Full Unit Replay System with Controller Controller with Premium T-Bar, Speed Presets & Jog Wheel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek 3Play 425 Full Unit Replay System with Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek RPXD425 Specs | Video Input | 4 simultaneous inputs
Any combination of:
HD-SDI, HD component, SD-SDI, SD component, composite, or Y/C (BNC) | | Video Output | 2 fully independent, simultaneous play-out channels
HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
HDMI output
Dedicated HDMI multi-view output
Network output for over-the-network input to TriCaster | | Mode | A; B; A+B | | Video Formats | NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Supports 16:9 and 4:3 aspect ratios | | Channels | Recording: 4 | | Recording Capacity | More than 30 hours of combined 1080i storage across internal drive and removable drive (15+ hours per drive)
MPEG-2 all I-frame | | Genlock | Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources | | Multi-viewer | Supported with 2nd display, including HUD | | Audio Inputs | 4 x SDI embedded
3 x 2 balanced 1/4" (Mic/Line)
1 x 2 balanced XLR (Mic/Line) | | Audio Outputs | 2 x SDI embedded
1 x 2 balanced XLR
1 x 2 balanced 1/4" | | Audio Processing | Audio is uncompressed and sampled at 96 kHz, 32-bit | | Time Code | LTC | | Standards | For Audio/Video:
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155 | | Controller | Dedicated controller with T-bar, jog wheel, speed presets, and clip transport | | Dimensions | 19.0 x 3.5 x 22.5" (48.3 x 8.9 x 57.2 cm) | | Weight | 28.0 lb (12.7 kg) | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 26.0 x 25.0 x 16.5" |
