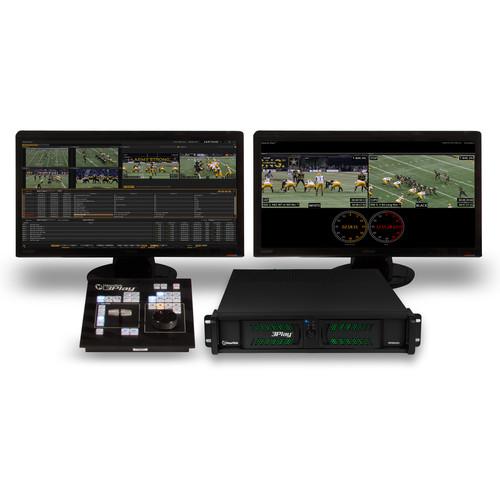

Product description The 3Play 425 Instant Replay System from NewTek is a 6-channel instant-replay slow-motion HD video server without a controller unit designed for use in control rooms and production vehicles of all sizes. With support for removable storage devices and a recording capacity of up to 40 hours, you can perform marathon recording with ease, whenever and wherever required.
The Unit Replay System uses session management to help ensure your data stays organized. It also comes with a slow-motion feature that enables you to break down highlights or analyze pivotal moments frame-by-frame. It can be used as a standalone unit, paired with the existing production system, or it can be teamed up with TriCaster over a local network. - Multi-camera instant replay, slow motion and real-time highlights editing
- Four camera replay solution scaled for mobility to produce high-impact local sports anywhere
- Compact 2U frame for live sports in small spaces
- Flexible I/O with mix-and-match HD and SD component, composite, and SDI connectivity for any resolution
- Multi-track ISO recording of each camera feed for complete access to source footage
- Optional countertop or counter-sunk control console for maximum tactile control
In the Box NewTek 3Play 425 Instant Replay System without Control Surface Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek 3Play 425 Instant Replay System without Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek 3Play 425 Specs | Video Inputs | Up to 4 simultaneous live video sources, in any combination of supported connection types, resolutions and frame rates
Direct input of cameras and video devices in any combination of HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC), or Composite connections
Per-input format configuration, scaler, and frame synchronizer enabling intermixing of formats | | Video Outputs | 2 fully independent playout channels, individually configurable for output via SDI or analog (configurable for component or Y/C + composite)
HDMI output that follows the actively-controlled playout channel
Ethernet connection for A/V output over a local network to TriCaster | | Output Modes | A, B, A+B | | Recording | Simultaneous recording of up to 4 live video sources | | Recording Format | Native recording up to 1080p resolution in MPEG-2 all I-frame format | | Recording Capacity | Accommodates 40 hours 1080i via internal drive and 1 TB removable media drive (included)
Trayless SATA III removable drive bay with hot-swap support for extended storage and backup
Simultaneous recording of 2 channels per drive | | Playback | 0 to 100% variable-speed playback | | Monitoring | Resizable, full field rate preview monitors for all live sources and playout channels | | Multi-viewer | Supported with second display, including playback data | | Audio Inputs | 4 x SDI embedded
3 x 2 balanced 1/4"
1 x 2 balanced XLR | | Audio Outputs | 2 x SDI embedded
1 x 2 balanced XLR
1 x 2 balanced 1/4" | | Supported Session Formats | NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Multi-Standard Model
NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
NTSC-J: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
PAL: 1080/25p, 1080/24p, 1080/50i, 720/50p, 720/25p, 720/24p, 576/25i | | Processing | Video: 4:4:4:4, 32-bit floating point
Audio: 4-channels, 96 kHz, 32-bit floating point | | Standard | For Audio / Video
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155 | | Time Code | External LTC source or internal system clock | | Genlock | Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources | | Power Supply | 2U Rack mount with 430 W power supply | | Dimensions | 19 x 3.5 x 21.5" (48.3 x 8.9 x 54.6 cm) | | Weight | 26 lb (12 kg) | | | | Package Weight | 38.8 lb | | Box Dimensions (LxWxH) | 25.5 x 25.0 x 17.3" |
