User Manual for NewTek Connect Spark HDMI Click to enlarge the picture
Contents of the user manual for the NewTek Connect Spark HDMI
- Product category: Switcher Accessories NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Switcher Accessories
 |
User manual for the NewTek Connect Spark HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|

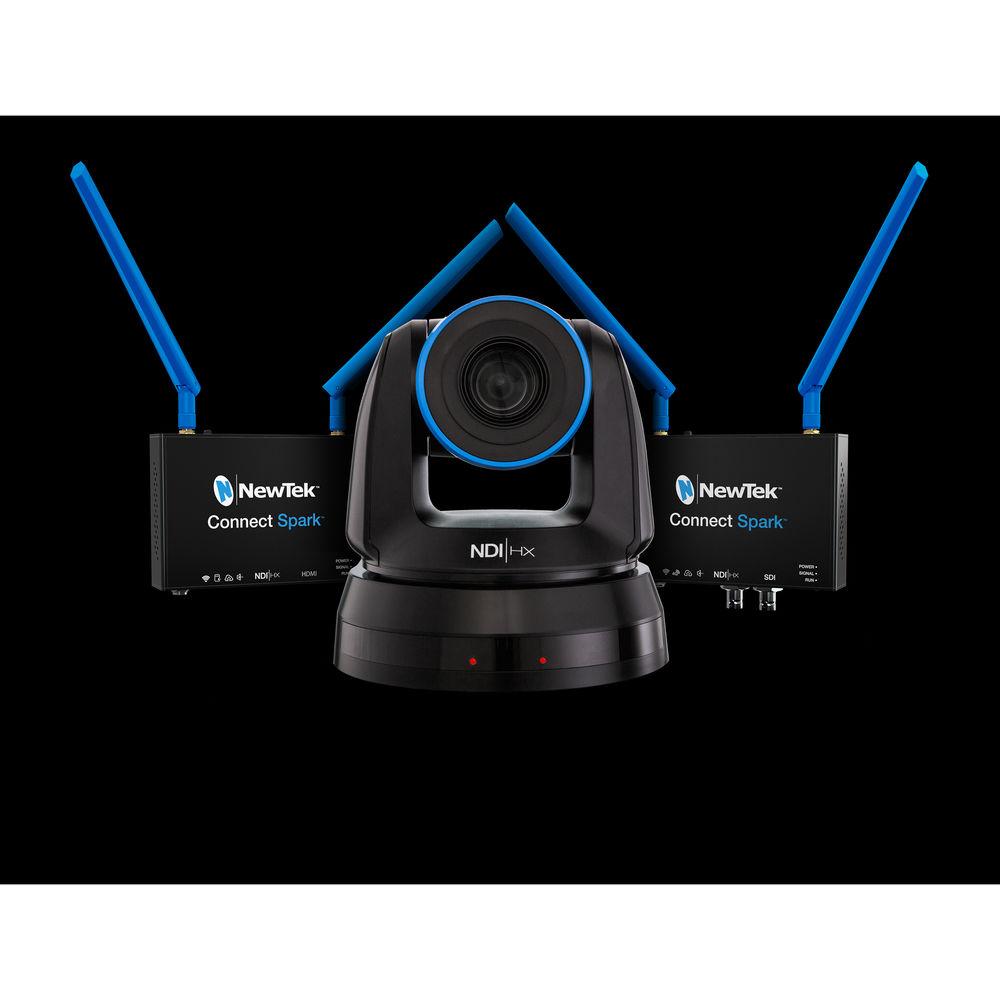

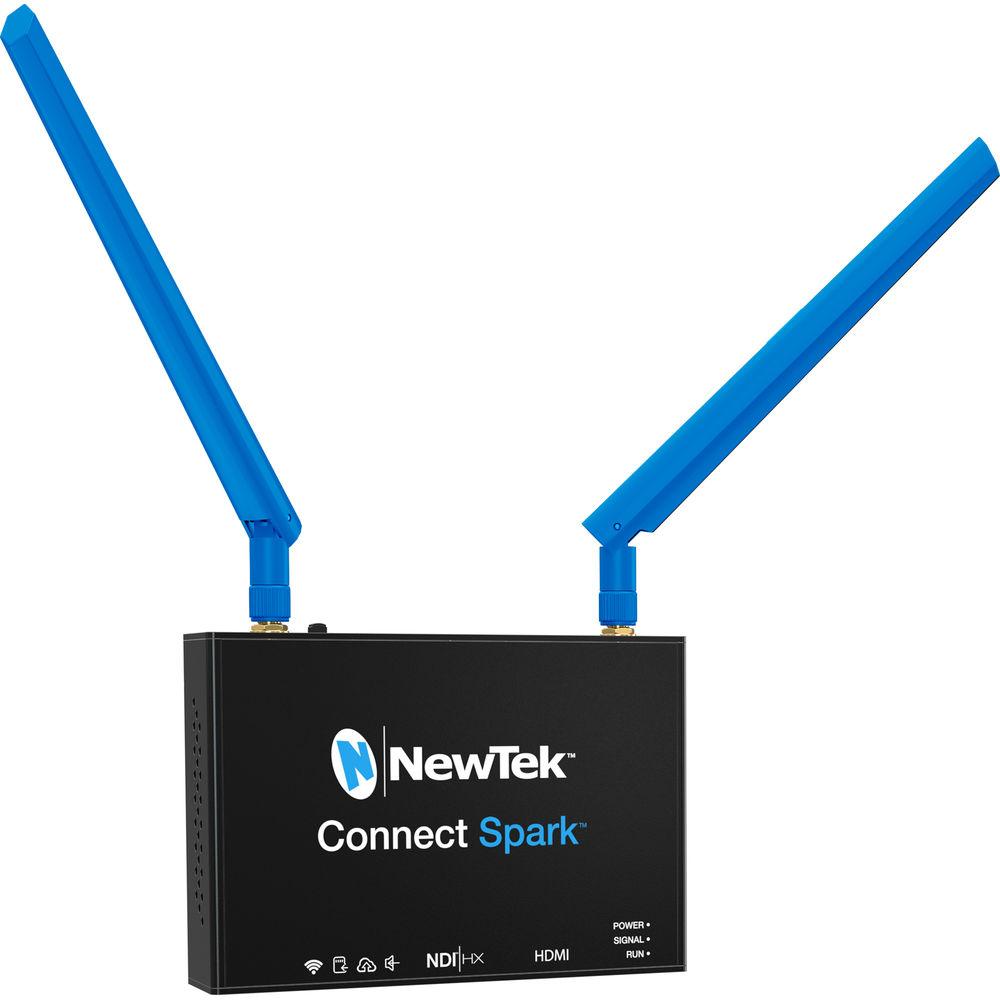

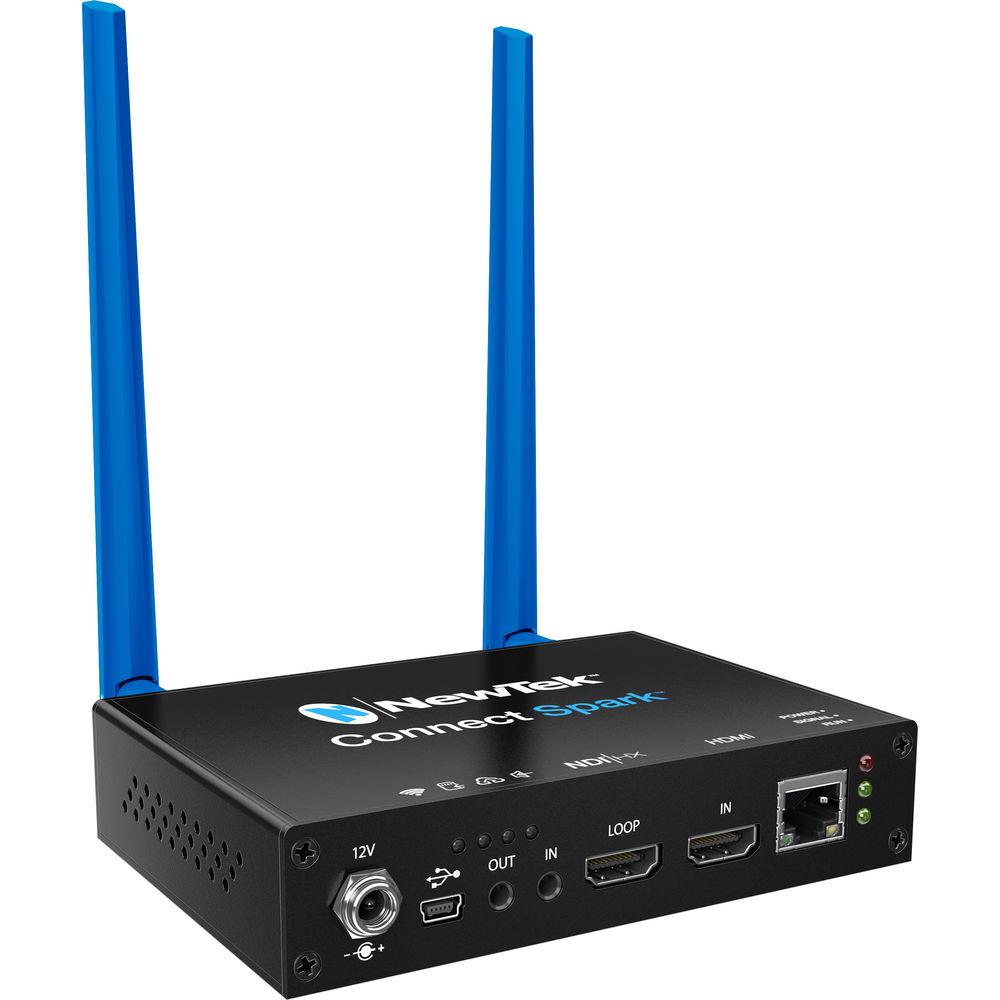

Product description Spark Your NDI Capabilities with New Spark HDMI and SDI Video Converters Read More The NewTek Connect Spark HDMI is a Wi-Fi-capable IP video converter designed for the NewTek open-source NDI standard. It supports up to 1080p59.94 video, and allows for remote recording to optional USB or microSD storage media. It can also be controlled via a web-based user interface for configuration and monitoring.
The NDI standard (Network Device Interface) allows all NDI-compatible video equipment to freely recognize and interact with one another, as long they're connected to the same network over Ethernet or Wi-Fi.
Connect Spark HDMI is designed to provide an ideal way to get HDMI video into a computer or IP-based video workflow. It allows you to convert any HDMI source for compatibility with hundreds of NDI-compatible systems, devices, and applications that can be connected on the same network, enabling you to efficiently incorporate that HDMI source into IP-based video capture and production workflows.
You won't need all the cables you normally would, but can rather send and receive video to/from your computer through the network. (Your computer would need to be NDI-enabled, and this is easily done with NDI software such as Connect Pro, sold separately.)

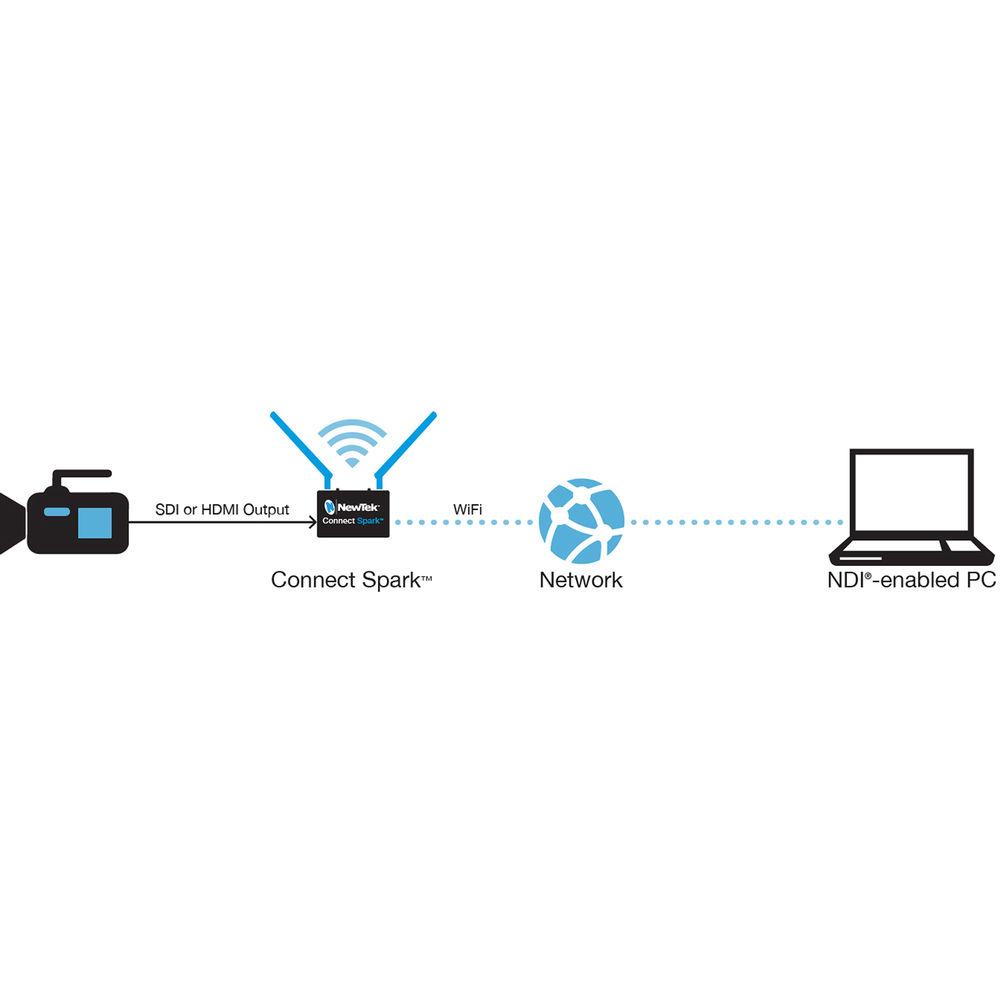

As soon as you plug the Connect Spark to a network, the HDMI source connected to it will instantly become available as an input for any NDI-compatible hardware and software on the network. - Key Features
-
- HDMI video input with embedded audio

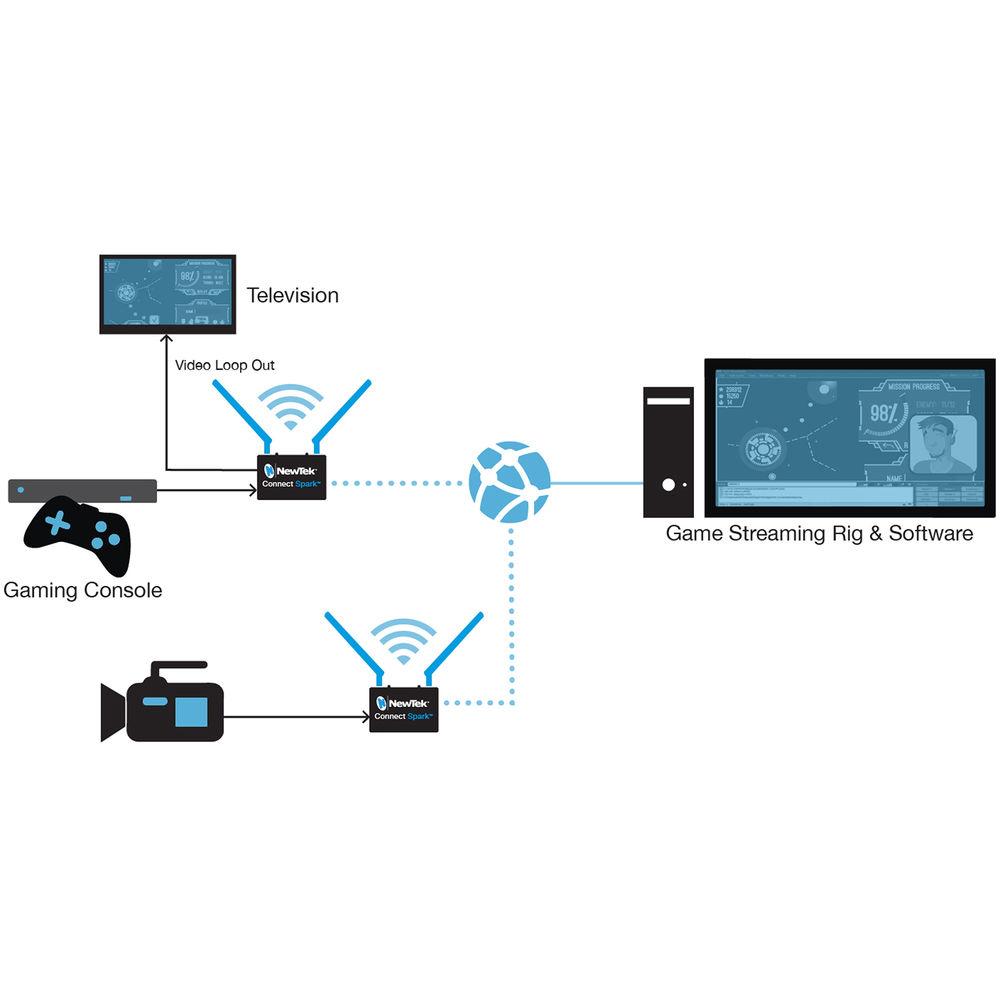

- Simultaneous HDMI loop-through out with embedded audio
- Support for 1080p and 720p video at up to 59.94 frames per second
- Remote configuration and monitoring via web-based user interface
- Remote recording onto microSD or USB storage media, with control via web-based interface
- Integrated tally lights
- Compatible with professional and prosumer production solutions, including NewTek live production systems and third-party video switchers, as well as software-based video tools like Livestream Studio, OBS, Streamstar SW, Telestream Gameshow and Wirecast, VidBlaster, vMix, XSplit, and all other NDI-compatible products (NDI version 2.0 or higher)
- Compatible with popular desktop video applications via included software driver, including Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more
In the Box NewTek Connect Spark HDMI Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek Connect Spark HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

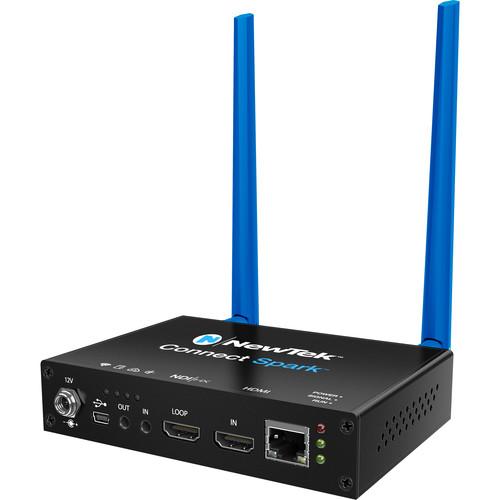

Technical parametersNewTek FG-001775-R001 Specs | Input | 1 x HDMI | | Loop Output | 1 x HDMI | | Audio | HDMI-embedded
3.5 mm line Level | | Encoding | NDI/HX | | Ethernet | 1 x RJ-45 port for 10/100M Ethernet networking | | Wireless Functionality | Built-in Wi-Fi radio
2 x 5 dB 2.4 G / 5.8 G dual-band antennas
IEEE 802.11 a/b/g/n | | Interface | Web-based user interface for configuration and monitoring | | Tally | Tally support via NDI, with built-in program/preview tally lights | | Formats | 1080p at 59.94, 50, 29.97, 25, 24, 23.98 fps
720p at 59.94, 50, 29.97, 25, 24, 23.98 fps | | Standards | HDMI: 0.8 Vpp | | Recording | Video: MPEG-TS
Audio: AAC
*USB or microSD storage media required (not included) | | USB | 2 x USB 2.0 Type-A
1 x USB 2.0 mini-USB | | Power | External 12 VDC, 1 A adapter included; 4 W power consumption (max) | | Operating Temperature | -4 to 176°F (-20 to 80°C) | | Relative Humidity | 20 to 90% | | Dimensions | 5 x 3.5 x 1.1" (13 x 9 x 3 cm) | | Weight | Approx. 8 oz (227 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.2 x 6.3 x 3.4" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
