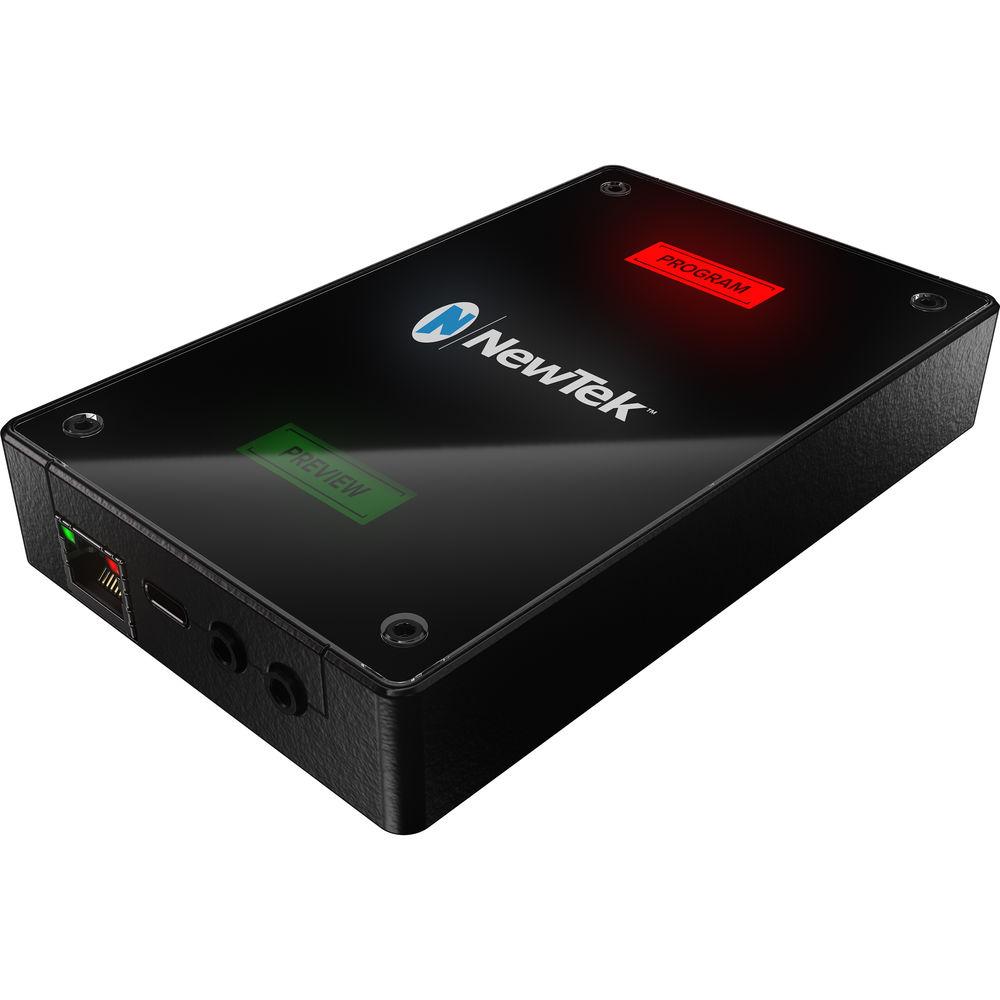

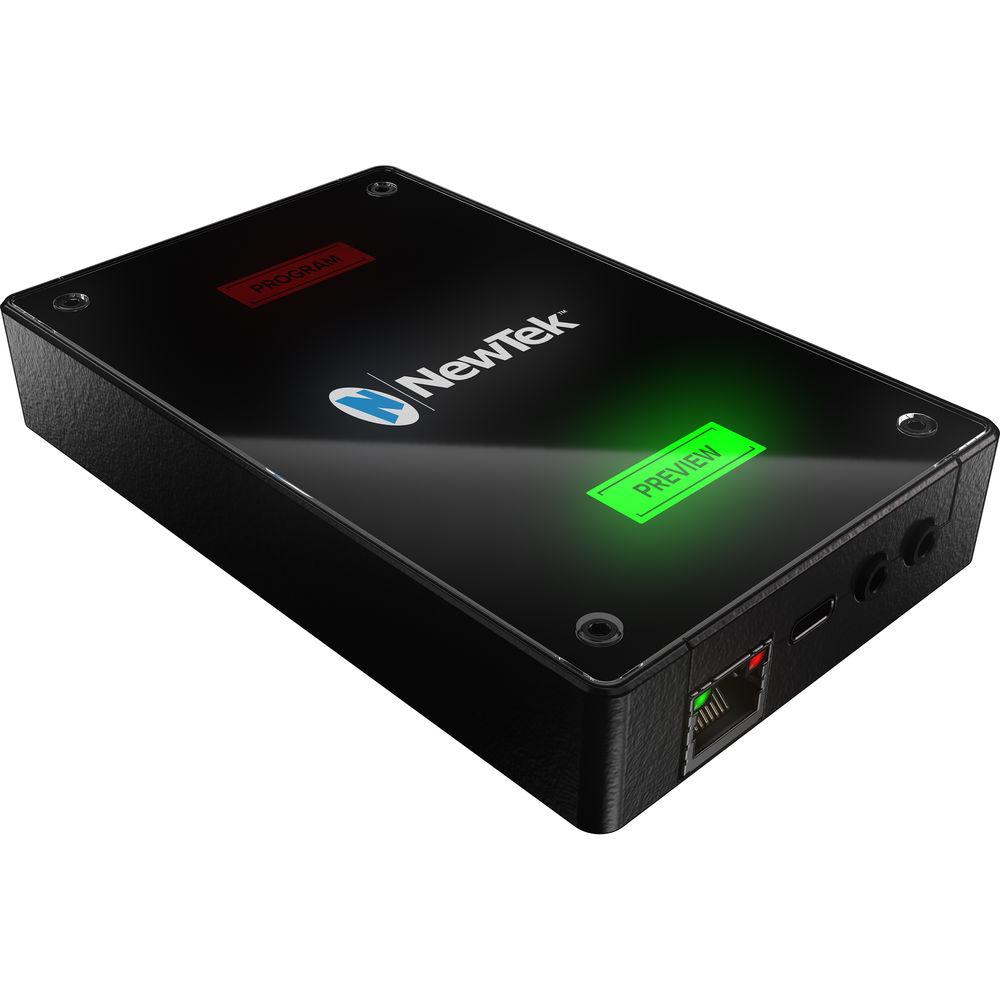

Product description Share your 4K UHD video over an NDI IP network with the Connect Spark Pro from NewTek. This small, portable unit inputs UHD, HD, or SD video up to 2160p60 over HDMI and outputs low-latency video over gigabit Ethernet for use in your NDI workflow. The Connect Spark Pro supports HDMI digital and 1/4" analog audio for professional 48 kHz sound. Tally notifications from your NDI-compatible devices are also supported on preview or program.
The Connect Spark Pro has a quick and easy setup. It's powered via PoE (Power over Ethernet) or by a USB power source, and it features one HDMI input with embedded audio, a 1/4" stereo line level input, and RJ45 Ethernet out. Download and install NewTek's NDI Tools and Studio Monitor software to configure the Connect Spark Pro and display its network output.
The Connect Spark Pro is compatible with NewTek's standard NDI-based IP workflow that connects with a variety of third-party components and solutions. It can be used as the video source for desktop applications such as Skype, WebEx, and GoToMeeting, or in various broadcast operations. - Full-Bandwidth NDI Output
- Convert audio and video from the connected camera or device to IP, sending high-quality NDI video with near-zero latency.
- Portable and Mountable
- Carry the Connect Spark Pro with you wherever you go, connect it to a compatible camera, or mount it using the industry-standard threaded screw mount.
- Compatible with Any NDI Workflow
- Share video over IP with any compatible system, device, or application that supports NDI, including NewTek solutions and products from third-party manufacturers and developers.
- 4K UHD, HD, and SD Formats
- Convert video of any compatible format to NDI, including 4K UHD, with native support for resolutions up to 2160p at 60 fps.
- HDMI Input
- Connect, capture, and convert any compatible HDMI video source.
- Professional-Level Audio
- Present high-quality sound, with support for embedded HDMI digital audio and 1/4" analog audio.
- Tally
- Receive tally notification from compatible NDI devices via physical LEDs when video output from the Connect Spark Pro is visible on Program and/or Preview.
- Web-Based Interface
- Monitor video, manage login credentials, access controls, and configure audio, video, and network settings from any supported web browser on any compatible networked device.
- NDI Virtual Input
- Designate the Connect Spark Pro as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the free NDI Virtual Input tool.
- Network
-
- Easily identify the Connect Spark Pro on your network with the ability to apply custom device and channel names.
- Access Connect Spark Pro devices connected to other networks via an IP address and make them visible within your production environment using the NDI Access Manager.
- Transmit video to your network using your choice of supported NDI transfer modes, including unicast and multicast UDP with forward error correction (FEC) and unicast TCP.
- Power the Connect Spark Pro via USB, or power over the wired Ethernet connection using a suitable PoE networking device.
In the Box NewTek Connect Spark Pro 4K to NDI Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek Connect Spark Pro 4K to NDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek Connect Spark Pro Specs | Power | PoE (Power over Ethernet)
USB Type-C: 5 V, 2 A | | Encoding | NDI | | Tally | 1/8" jack or NDI
Built-in tally lights | | Audio/Video Input | 1 x HDMI with 48, 44.1, or 32 kHz embedded stereo LPCM audio
1 x 1/4" / 6.35 mm line level (48 kHz) | | Network Port | 1 x RJ45 gigabit Ethernet output | | Supported Video Formats | 2160p: 60/59.94/50/30/24
1080p: 60/59.94/50/30/29.97/25/24
1080i: 59.94/50
720p: 60/59.94/50/29.97/25/24
576p: 50 (16:9, 4:3)
480p: 60/59.94 (16:9, 4:3) | | Operating Temperature | -4 to 176°F / -20 to 80°C | | Relative Humidity | 20 to 90% | | Dimensions | 5.4 x 3.3 x .9" / 13.7 x 8.4 x 2.3 cm | | Weight | 9.9 oz / 280 g | | | | Package Weight | 1.12 lb | | Box Dimensions (LxWxH) | 8.1 x 5.35 x 1.65" |
