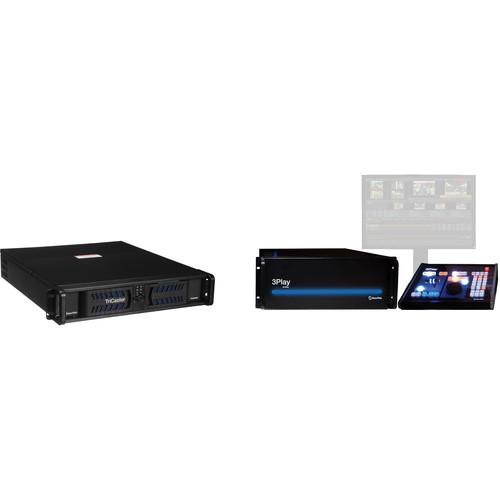

User Manual for NewTek Live Sports 460 Solution: TriCaster 460 & 3Play 4800 Click to enlarge the picture
Contents of the user manual for the NewTek Live Sports 460 Solution: TriCaster
- Product category: Production Switchers NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Production Switchers
|
User manual for the NewTek Live Sports 460 Solution: TriCaster contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|
Product description The NewTek Live Sports 460 Solution: TriCaster 460 and 3Play 4800 pairs a live production switcher with a multi-camera replay system for large venue broadcast and sports productions, each with a dedicated control surface. The solution supports resolutions up to 1080/30p and 1080/60i, and allows you to create, replay, record, publish, and stream live broadcast and sporting events. The TriCaster 460 supports four cameras and features an audio mixer, titles, warping transitions, buffers, virtual sets, DSK, and DVE effects. The 3Play 4800 adds eight live camera inputs and slow motion, instant replay, multi-angle preview, and in-game highlights features, with the output feed recognized as a live video source on the TriCaster via a network connection for system integration.
House in a 2U rack mount chassis, the TriCaster 460 features built-in IsoCorder technology for recording of up to four isolated, simultaneous feeds during live production, from any combination of the HD-SDI, HD Component, SD-SDI, SD Component, S-Video, or Composite input connections. You can instantly publish content to popular social media sites, upload to FTP sites, transfer to storage volumes/network locations, share clips and stills during production, or upload your entire show within minutes after production wraps. Custom memory presets and key commands allow you to streamline sophisticated operation sequences that are too complex for real-time action execution. 3TB of internal storage is included for approximately 70 hours of 1080i recording.
The 3Play 4800 is a single 4U rack mount solution with features such as hardware console control, 8-camera ISO recording and playback, slow-motion replay, media publishing, highlights creation, and more. The unit is capable of storing up to 200 hours of 1080i video on its four 2TB media drives. With multi-view monitoring of every live video source and clip monitors for comprehensive scouting of captured content, you can preview and switch between every angle of recorded clips simultaneously; either from the UI or the controller.
The output from the 3Play can be sent to the TriCaster over a local network via an Ethernet connection, enabling remote operation of 3Play clip cueing and playback from the TriCaster interface. 3Play output signal appears as a live source through the TriCaster network inputs. Integration between the two system lets you consolidate control by combining macro commands to trigger operations across both platforms. You can also send tally status across the network as well as access and play files written between the two shared network storage drives, without having to import and host locally.
Please see the links below for more information on the components of this bundle. In the Box Bundle Items
Also Includes - TriCaster 460 Multi-Camera Production System with Control Surface
- 3Play 4800 Multi-Camera Replay System
