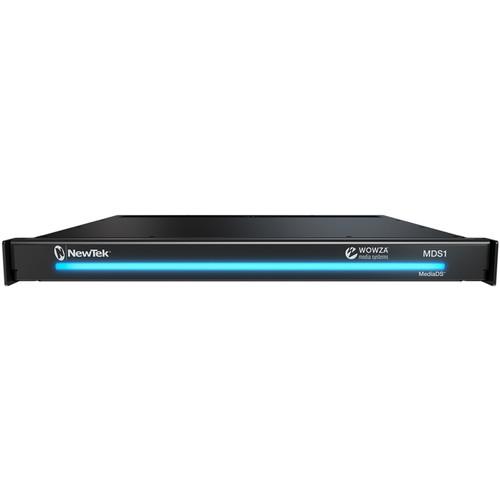

User Manual for NewTek MediaDS Click to enlarge the picture
Contents of the user manual for the NewTek MediaDS
- Product category: Streaming Media Solutions NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Streaming Media Solutions
|
User manual for the NewTek MediaDS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|
Product description Update your studio for broadcasting to popular live-streaming platforms with NewTek's MediaDS streaming media distribution system. Four simultaneous independent channels can be fed from four 3G/HD/SD-SDI inputs or four NDI IP video streams from compatible NewTek hardware. Built-in Wowza streaming software provides integration with Wowza streaming services. Other platforms such as Facebook and YouTube are accessible as well. Whether you want your existing broadcast studio to reach wider audiences, or building a new studio around internet media, the MediaDS will prove to be a reliable and high-quality video streaming solution. Quick Features - Encoding
- 4 RTMP streams via integrated NewTek streaming encoder
- Streaming Delivery
- 4 independent streams with support for Adobe Flash RTMP (RTMPE, RTMPT, RTMPTE, RTMPS), Apple HTTP Live Streaming (HLS), MPEG-DASH, WOWZA, and simultaneous stream file archive
- Streaming Targets
- Independently configurable per video stream, with support for multiple selections and configurable presets
- Streaming Profiles
- Independently configurable per video stream, with presets included in formats up to 1080p 60
- Video Streaming Webpages
- Built-in webpage available per video stream for local network viewing, with hosted media player, embed codes, and direct editing supported via HTML and CSS
- Monitoring
- Integrated multiviewer display with configurable workspaces and viewports
- Video Configuration
- Independently configurable video delay and color correction settings for each video stream, including white balance, proc amp controls and auto color
- Audio Configuration
- Independently configurable audio delay, automatic gain control, and manual audio channel level controls for each video stream
- Signal Monitoring
- Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
General Features - Seamless Integration with SDI and IP Workflows
- The MediaDS is fully equipped for SDI, IP, and hybrid workflows, with multi-format processing allowing supported source types to be used interchangeably on each channel. Streaming signals are acquired through direct, physical input using 3G/HD/SD-SDI hardware connections, over IP via NewTek's NDI, and from other sources, including TCP/IP, webcams, and USB capture devices.
- Multi-Platform Support
- With support for delivery to viewers on the local network through Wowza streaming software, in addition to all common streaming services, websites and CDNs, including Facebook Live, Microsoft Azure, Ustream, Wowza Streaming Cloud, YouTube Live, and more, your organization can reach multiple intended audiences, wherever they wish to watch.
- Channel Management
- Introduce another layer of quality control into your signal flow, ensuring the optimal audio-visual experience for your viewing audience right from the system. With support for dedicated multiviewer monitoring, the local operator can observe all video streams in real time or focus on a specific channel full-screen, and manage image and sound quality with integrated waveform and vectorscope displays, independent color correction tools, and multi-channel audio level control available for every stream.
In the Box NewTek MediaDS Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek MediaDS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek FG-001519-R001 Specs | Video Inputs | 4 x BNC 3G/HD/SD-SDI (with embedded audio)
4 x IP via NDI (with embedded audio) | | Video Outputs | 1 x DVI/HDMI multiviewer
4 x IP via NDI | | Audio Inputs | 1 x 2 balanced XLR (line-level)
3 x 2 balanced 1/4" TRS (line-level)
Supports Dante networking protocol (requires separately available Audinate license) | | SDI Format Support | 1080p 23.98/24/25/29.97/50/59.94
1080i 50/59.94
720p 23.98/24/25/29.97/50/59.94
NTSC
PAL | | SMPTE Standards Supported | 3G-SDI: SMPTE 424M (Level A)
HD-SDI: SMPTE 292M
SD: SMPTE 259M and ITU-R BT.656
Analog Audio: SMPTE RP-155 | | Processing | Video: Floating point 4:4:4:4 (YCbCr +alpha)
Audio: Floating point, 48 kHz | | Network Interfaces | 2 x Gigabit | | Dimensions | 19 x 1.75 x 16.75" / 483 x 45 x 425 mm | | Weight | 15 lb / 6.8 kg | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 25.0 x 9.0 x 9.0" |
