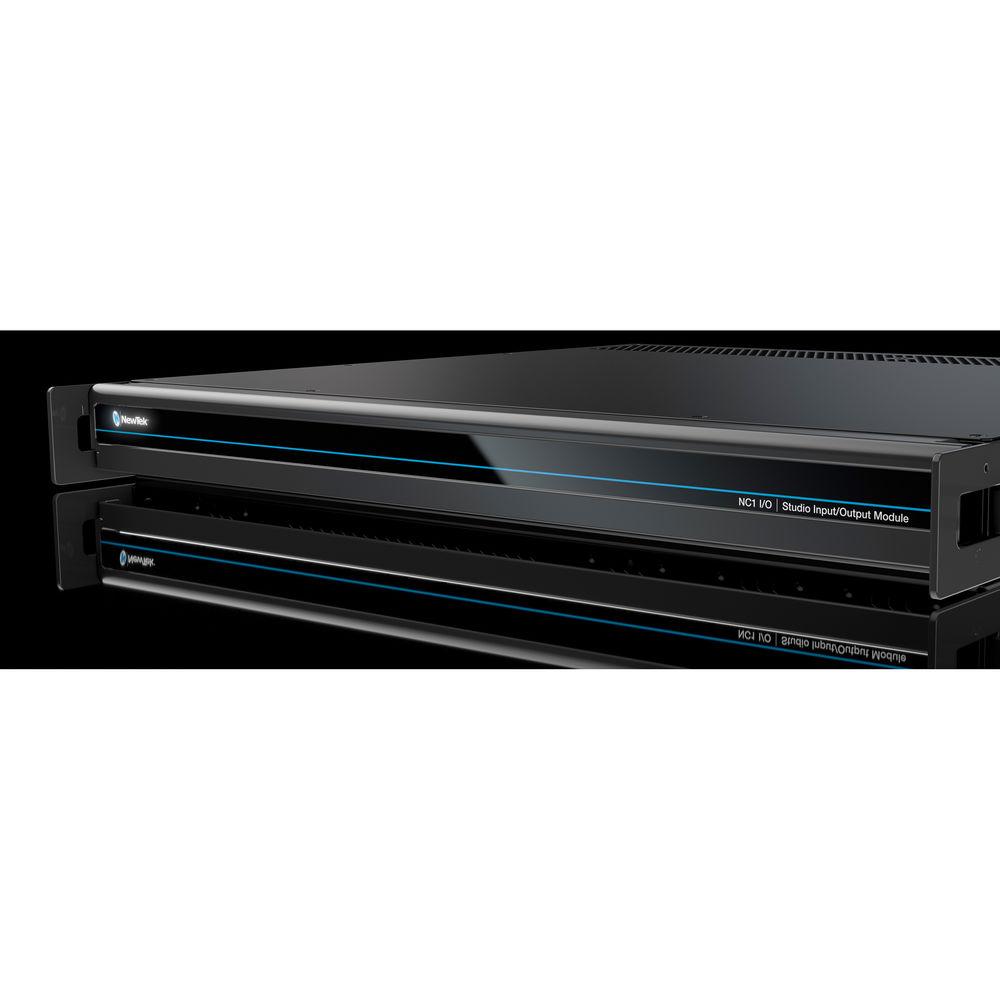

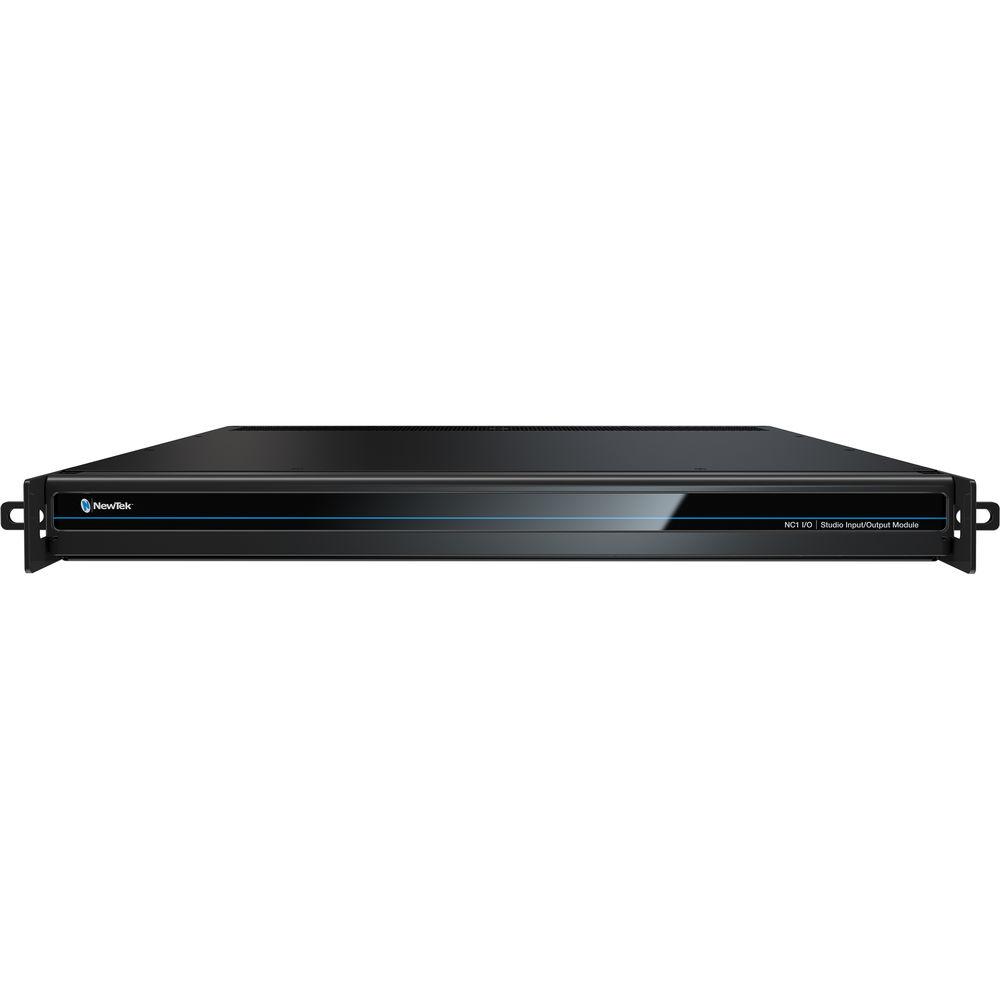

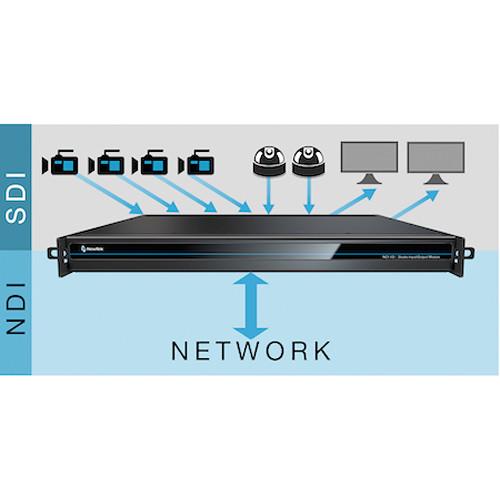

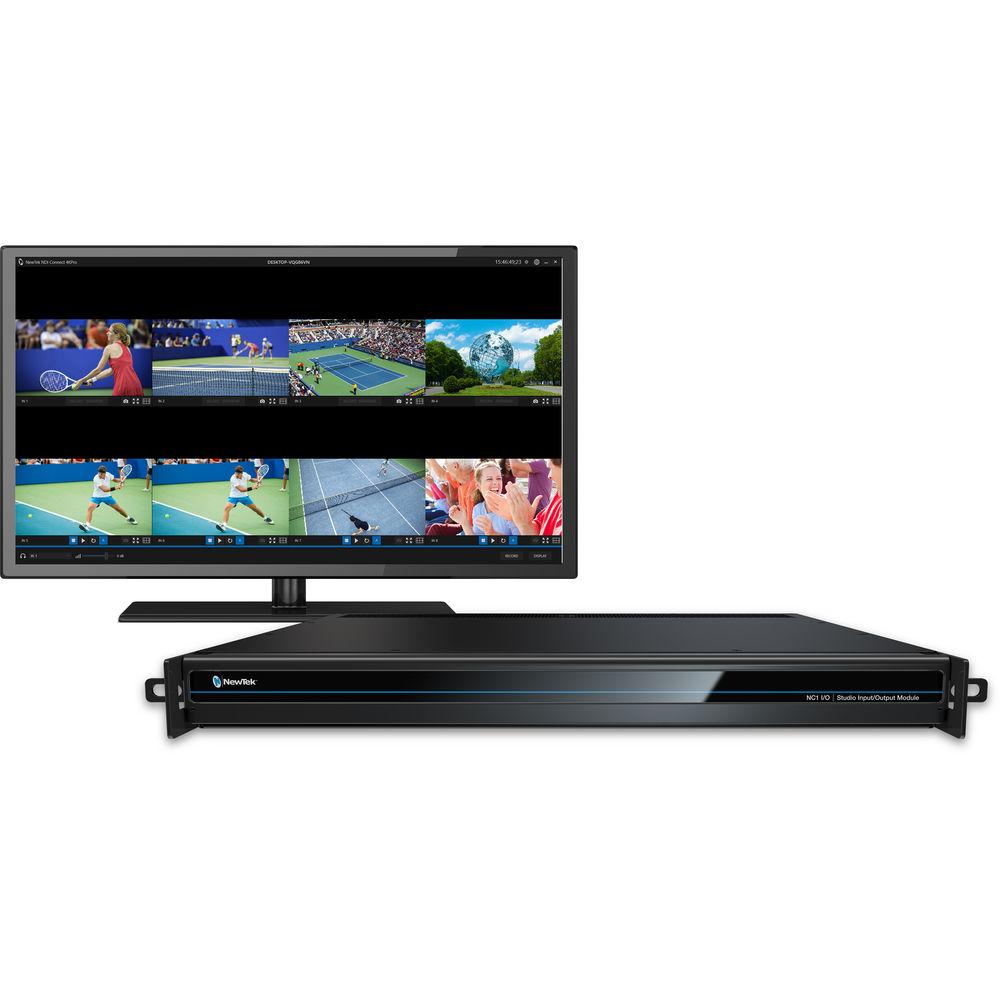

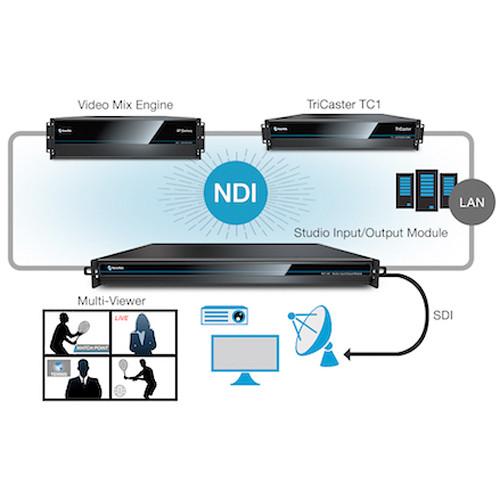

Product description NewTek's NC1 Studio I/O Module is the bridge to your NDI infrastructure. Able to translate up to eight channels of SDI video (two channels in UHD 4K), this NC1 module can be set up anywhere across your network to transmit and receive SD, HD, or UHD video in a studio environment. Eight mini BNC terminals can connect to video sources, audio sources, decks, or monitors, and can each be configured for input or output. Since the module only needs to attach to your network, you can deploy multiple modules in different locations inside your network, instantly integrating that location into your production. Multiview video can also be locally displayed via HDMI or DVI. This unit mounts in a standard 19" equipment rack, so you can add more units for a greater number of inputs and outputs at a given location. Quick Features - Translate up to eight SDI or IP video sources to NDI, and deliver to the network from any location

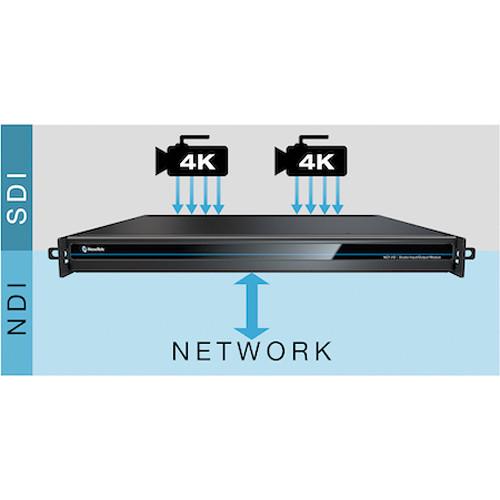

- Configurable to accept up to two UHD 4K sources up to 60 fps with quad-link SDI
- Mix and match sources, including SDI input devices, as well as RTMP, RTSP, and HTTP streams
- Integrate with compatible systems and devices across your network for switching, streaming, display, and delivery

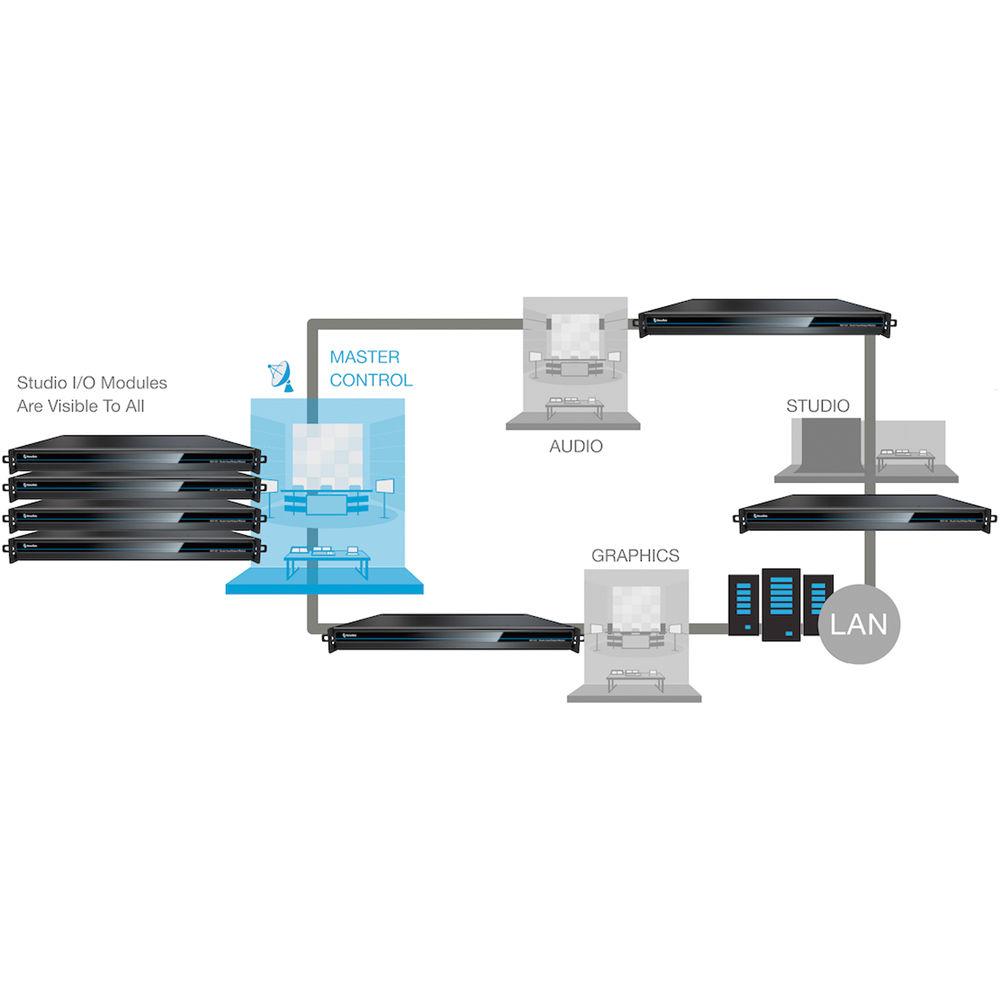

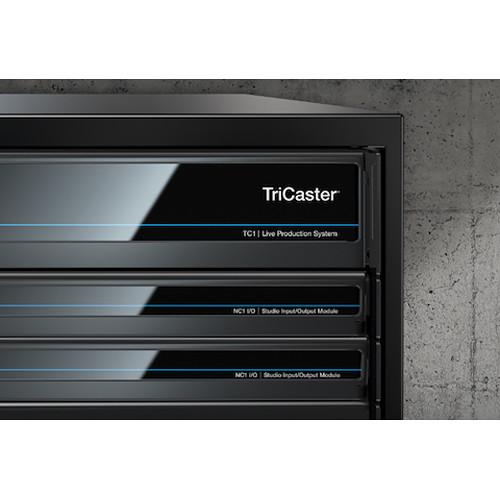

- Stack modules in a single location or station in multiple locations to meet the demands of your productions
- Built-in video server function with extensive file format support, including full-resolution UHD 4K playback
- Real-time input, conversion, and transmission of common IP video stream formats, including RTMP, RTSP, and HTTP
- Flexible audio integration supporting input and delivery of digital, analog and network audio, including Dante and AES67
Note: Dante and AES67 require separately available virtual sound card licenses - Dedicated multiviewer with selectable workspace layouts and customizable viewports
- Precision color calibration with independently configurable color correction tools and integrated waveform and vectorscope
- Native-resolution recording to external or network attached storage for archive and post-production
- Remote control and monitoring from the web browser of any networked device, including iOS and Android devices

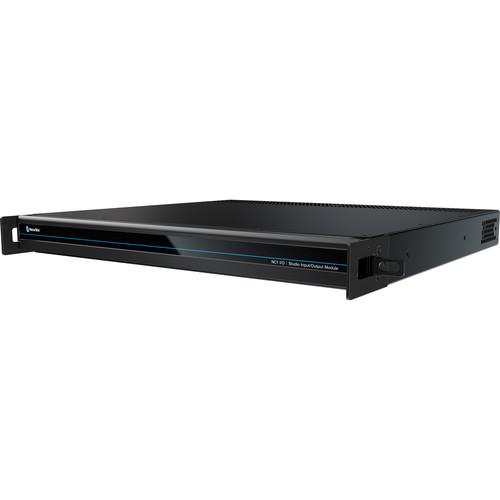

In the Box NewTek NC1 Studio I/O Module (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek NC1 Studio I O Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek FG-001592-R001 Specs | Video I/O | Local:
8 x Mini-BNC, SD/HD/3G-SDI (configurable for single channel or quad-link input or output)
Network:
8 x NDI I/O
2 x HDMI multiviewer outputs | | Audio I/O | Local:
8 x Mini-BNC, SD/HD/3G-SDI I/O
Network:
8 x NDI I/O | | Other I/O | 2 x RJ45, gigabit Ethernet
4 x USB 3.0 Type-A
2 x USB 2.0 Type-A
1 x PS/2 | | IP Video Inputs | Supports RTMP, RTSP, and HTTP | | Resolution Support | Built-in SD/HD/3G-SDI:
3840 x 2160 23.976/24/25/29.97/50/59.94
1080p 23.976/24/25/29.97/50/59.94
1080i 50/59.94
720p 23.976/24/25/29.97/50/59.94
NTSC
PAL
NDI: Up to UHD 4K at 59.94 fps | | Processing | Video: Floating point, YCbCr +A, 4:4:4:4
Audio: Floating point, 96 kHz | | Video Standards | Video: SMPTE 424M (Level A), SMPTE 292M, SMPTE 259M, ITU-R BT.656
Audio: SMPTE RP-155 | | Power Supply | 280 W redundant | | Dimensions | 19 x 1.75 x 16.75" / 48.3 x 4.5 x 42.5 cm (with rack ears attached)
1 RU | | Weight | Not specified by manufacturer | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 24.1 x 24.0 x 8.0" |
