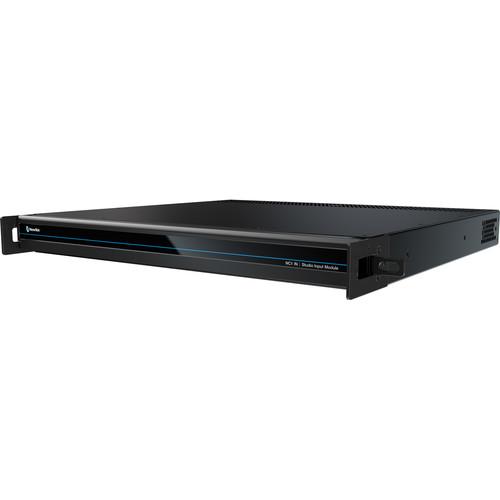

User Manual for NewTek NC1 Studio Input Module Click to enlarge the picture
Contents of the user manual for the NewTek NC1 Studio Input Module
- Product category: Switcher Accessories NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Switcher Accessories
 |
User manual for the NewTek NC1 Studio Input Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|

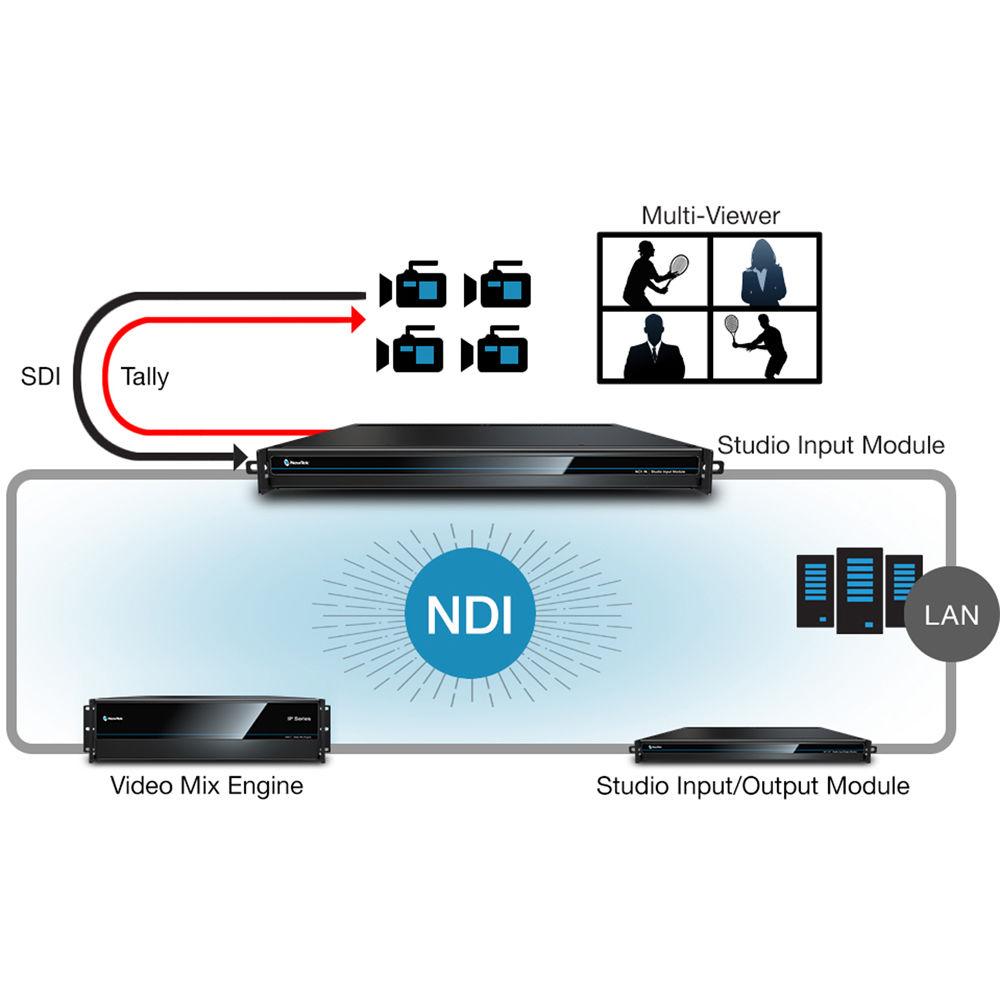

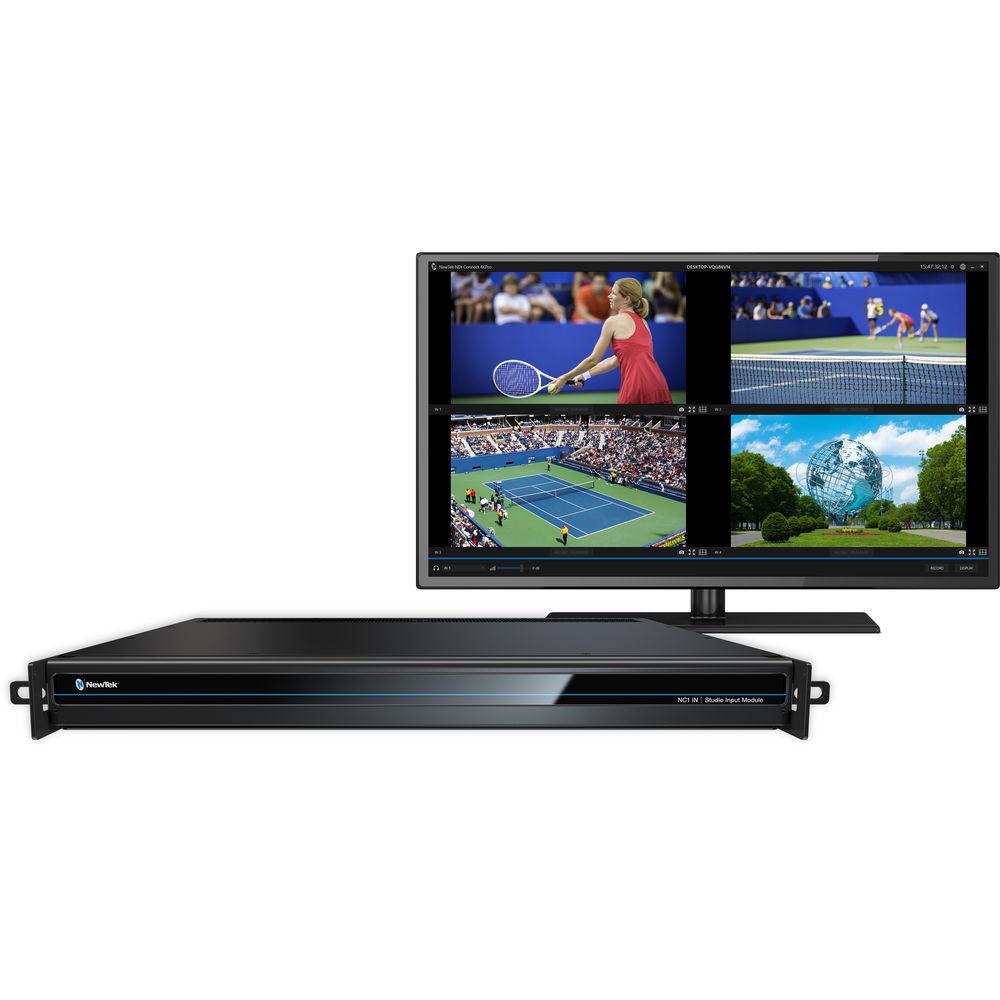

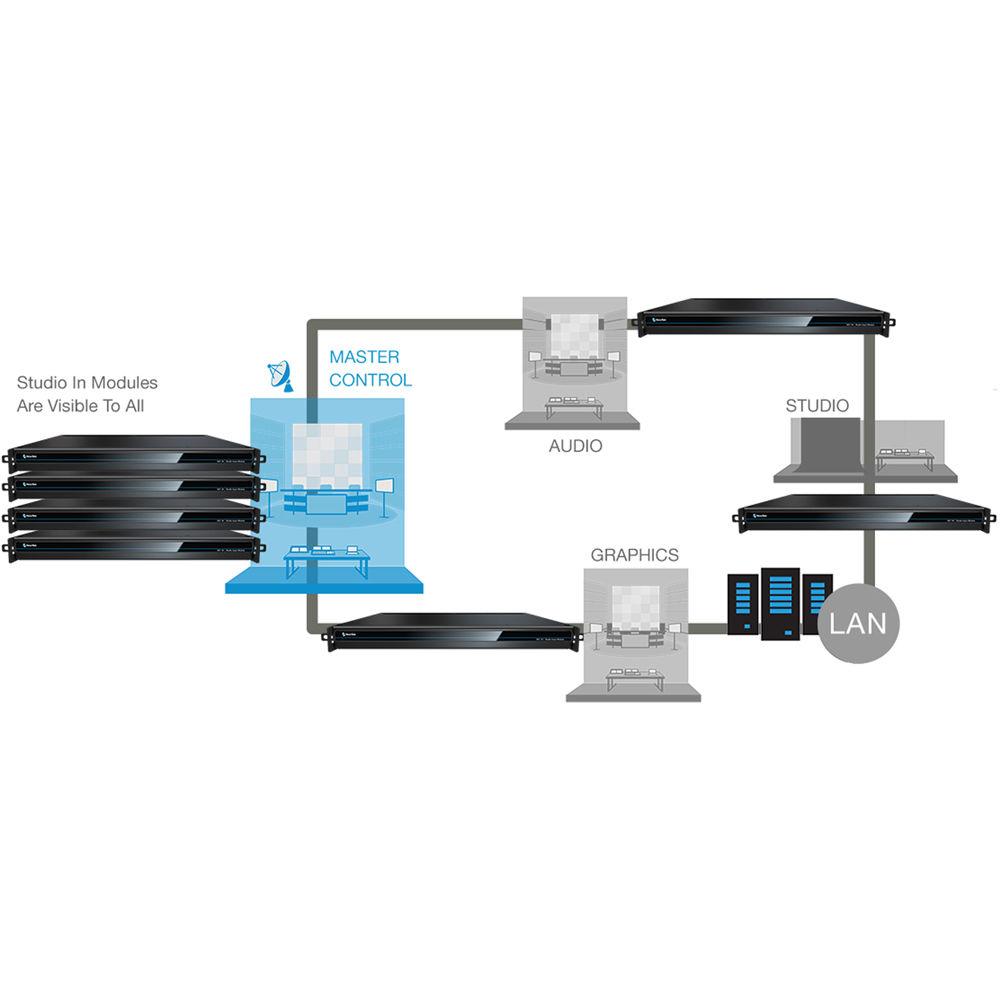

Product description NewTek's NC1 Studio Input Module expands your existing NDI setup to accommodate up to four more sources, whether they are SDI, NDI, or streaming video. Four SDI inputs that can handle SD and HD video are converted to NDI to integrate with your existing network to record, stream, reroute, and display video. Since the module only needs to attach to your network, you can deploy multiple modules in different locations inside your network, instantly integrating that location into your production. Multiview video can also be locally displayed via HDMI or DVI. Quick Features - Translate up to four SDI or IP video sources to NDI, and deliver to the network from any location
- Mix and match sources, including SDI input devices, as well as RTMP, RTSP, and HTTP streams
- Integrate with compatible systems and devices across your network for switching, streaming, display, and delivery

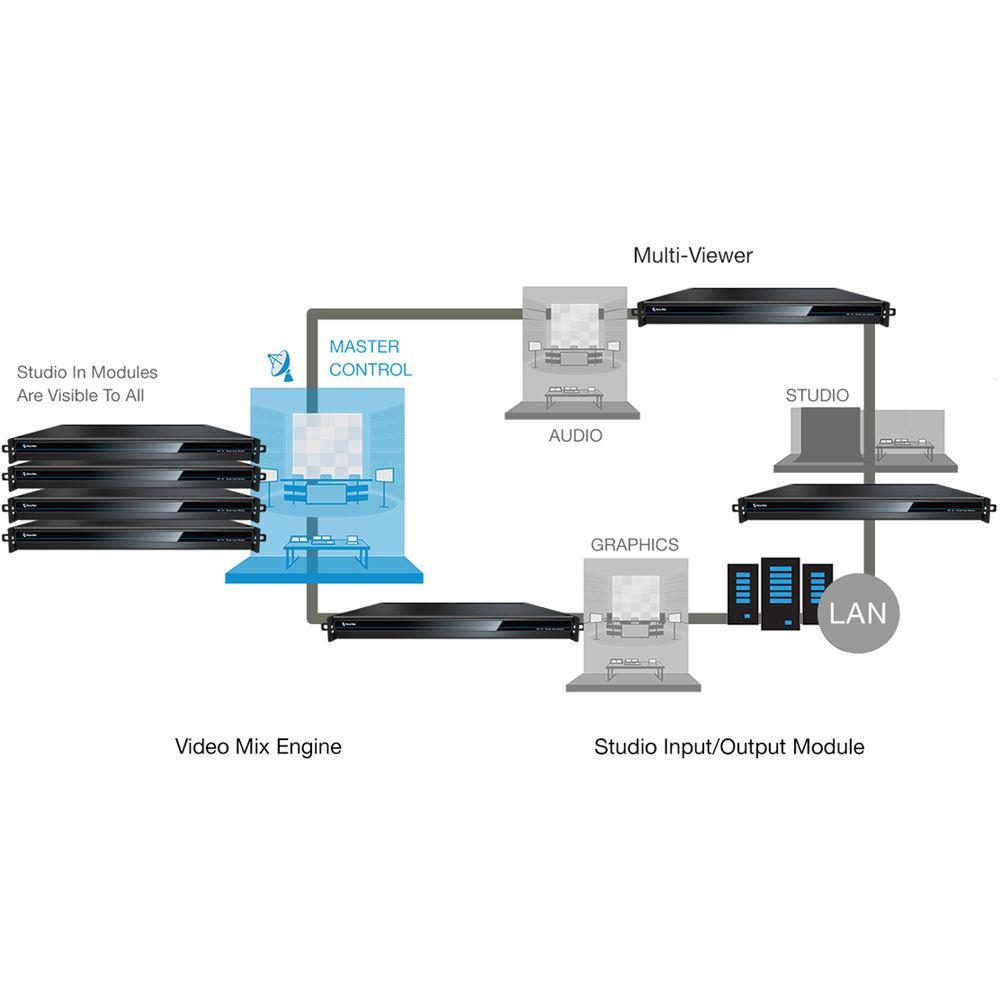

- Stack modules in a single location or station in multiple locations to meet the demands of your productions
In the Box NewTek NC1 Studio Input Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek NC1 Studio Input Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

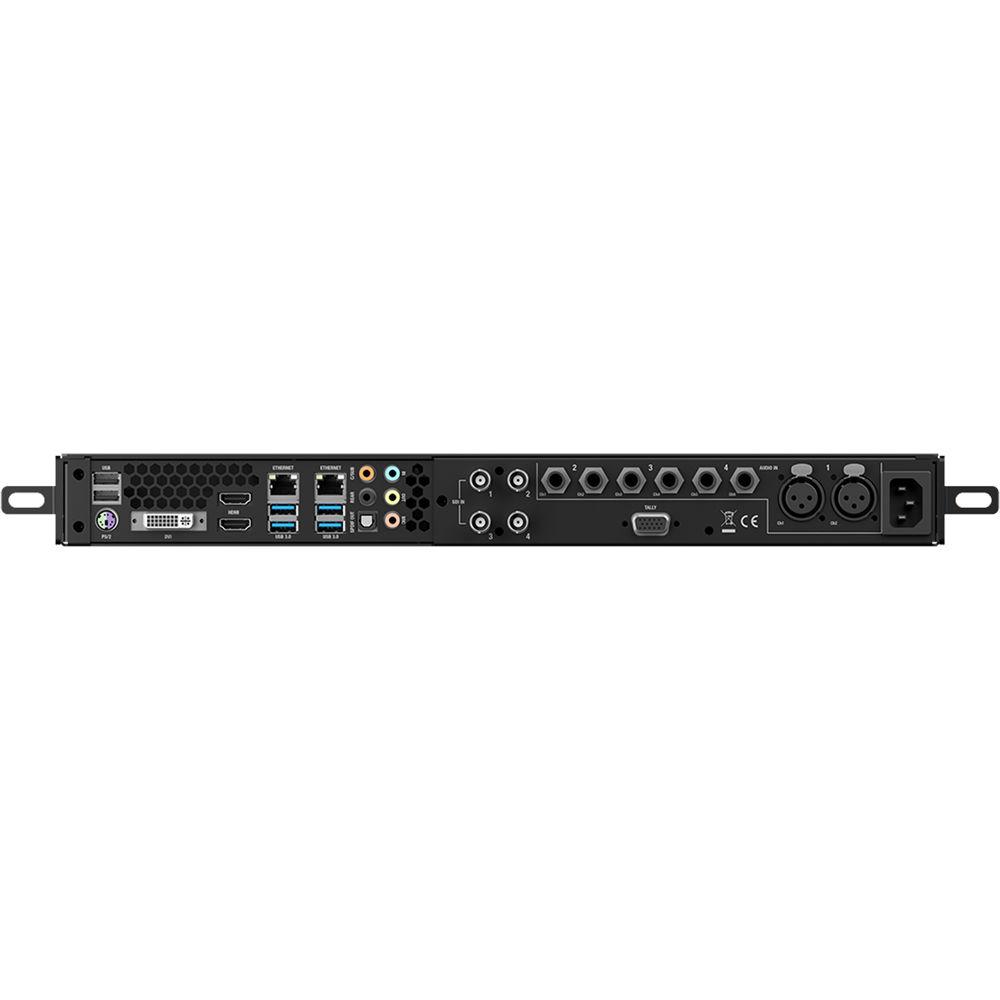

Technical parametersNewTek FG-001593-R001 Specs | Inputs | 4 x NDI
4 x BNC, SD/HD/3G-SDI
1 x Stereo balanced XLR line input
3 x Stereo balanced TRS line input | | Outputs | 2 x HDMI Type A
1 x DVI | | Other I/O | 2 x RJ-45, gigabit Ethernet
1 x DB-15, tally
4 x USB 3.0 Type-A
2 x USB 2.0 Type-A
1 x PS/2 | | Resolution Support | Built-In SD/HD/3G-SDI:
1080p 23.976/24/25/29.97/50/59.94
1080i 50/59.94
720p 23.976/24/25/29.97/50/59.94
NTSC
PAL
NDI: Up to UHD 4K at 59.94 fps | | Processing | Video: Floating point, YCbCr +A, 4:4:4:4
Audio: Floating point, 96 kHz | | Video Standards | Video: SMPTE 424M (Level A), SMPTE 292M, SMPTE 259M, ITU-R BT.656
Audio: SMPTE RP-155 | | Power Supply | 180 W | | Dimensions | 19 x 1.75 x 16.75" / 48.3 x 4.5 x 42.5 cm (with rack ears attached)
Rackmount: 1 RU | | Weight | 15 lb / 6.8 kg | | | | Package Weight | 26.25 lb | | Box Dimensions (LxWxH) | 25.0 x 24.75 x 9.25" |
