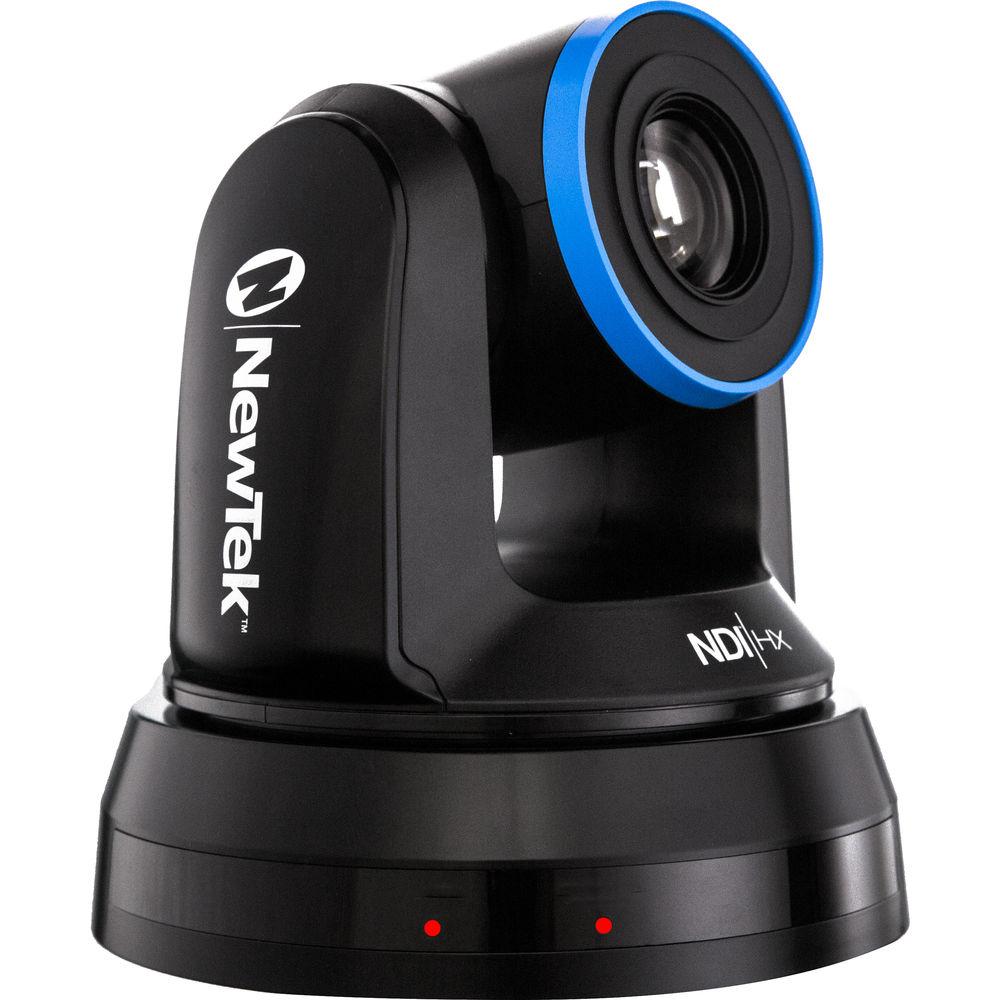

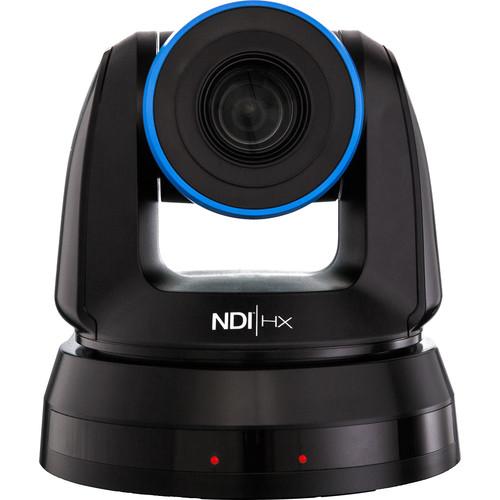

User Manual for NewTek NDIHX-PTZ1 NDI PTZ Camera Click to enlarge the picture
Contents of the user manual for the NewTek NDIHX-PTZ1 NDI PTZ Camera
- Product category: PTZ Cameras NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek PTZ Cameras
 |
User manual for the NewTek NDIHX-PTZ1 NDI PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|

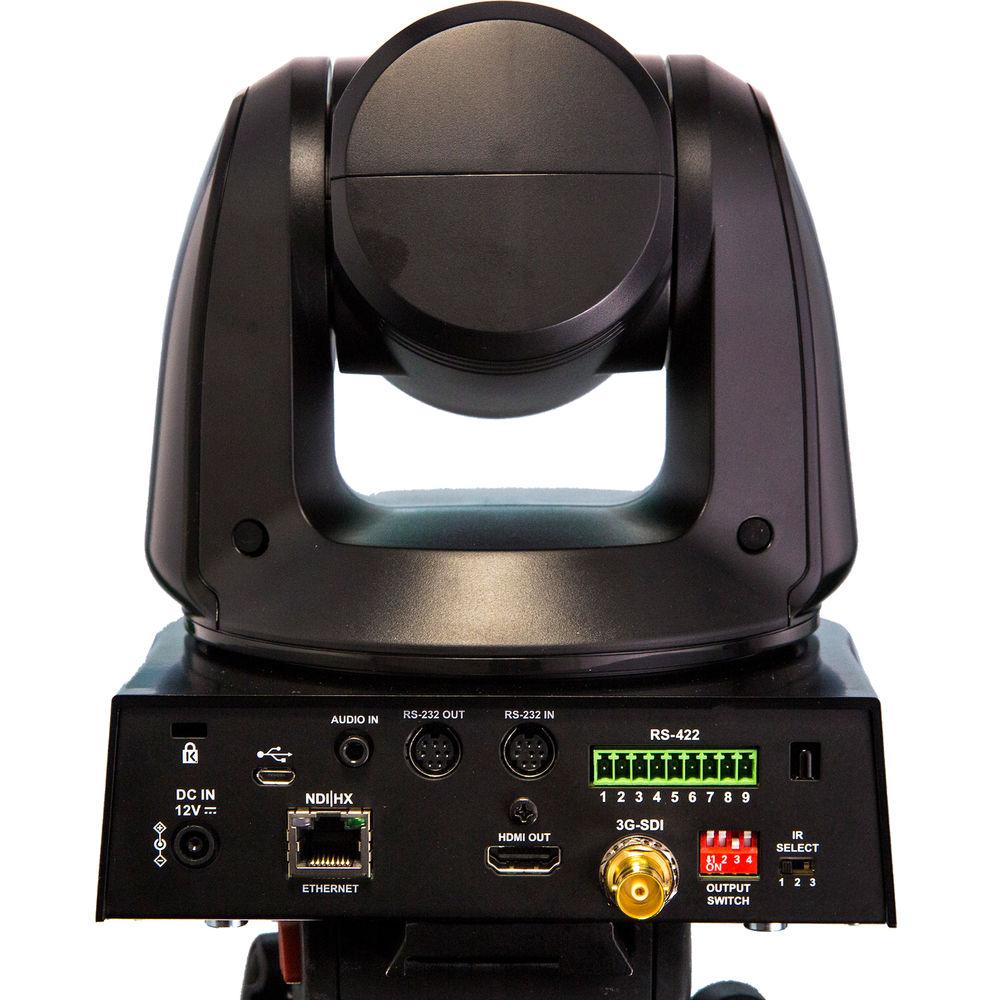

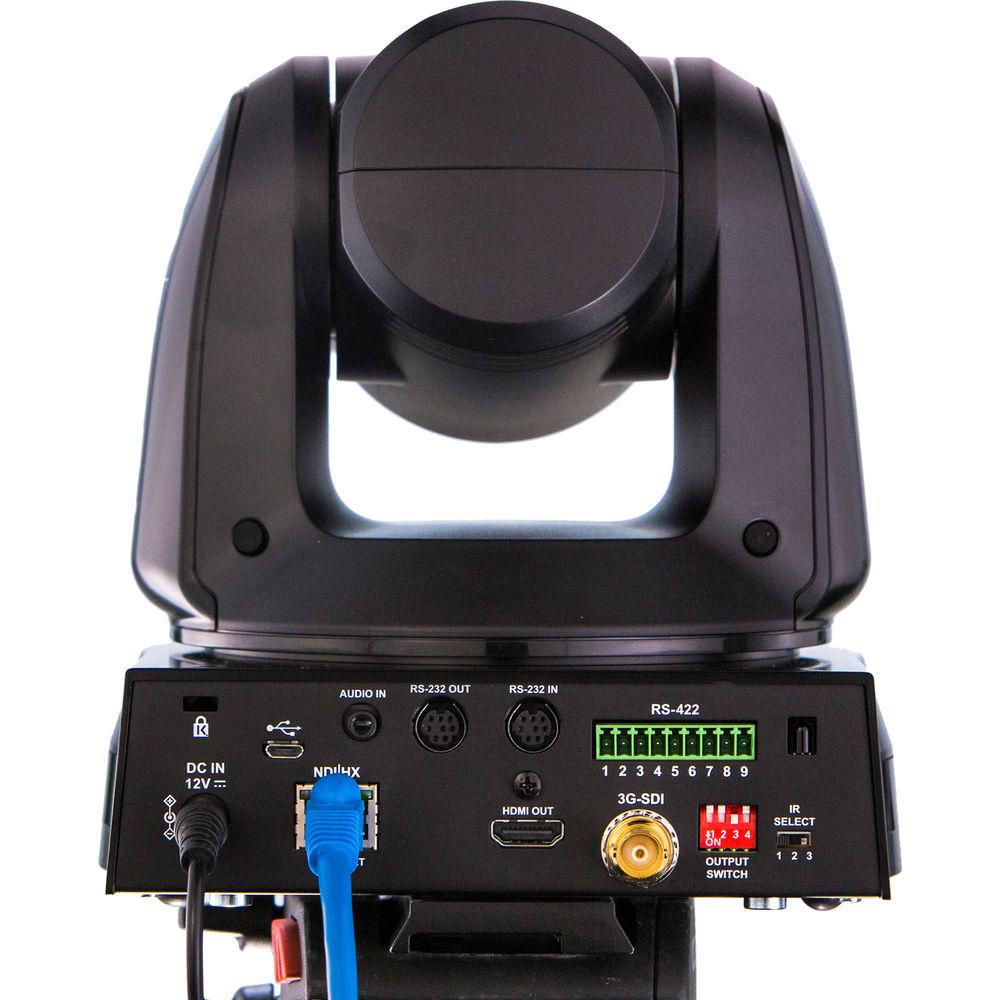

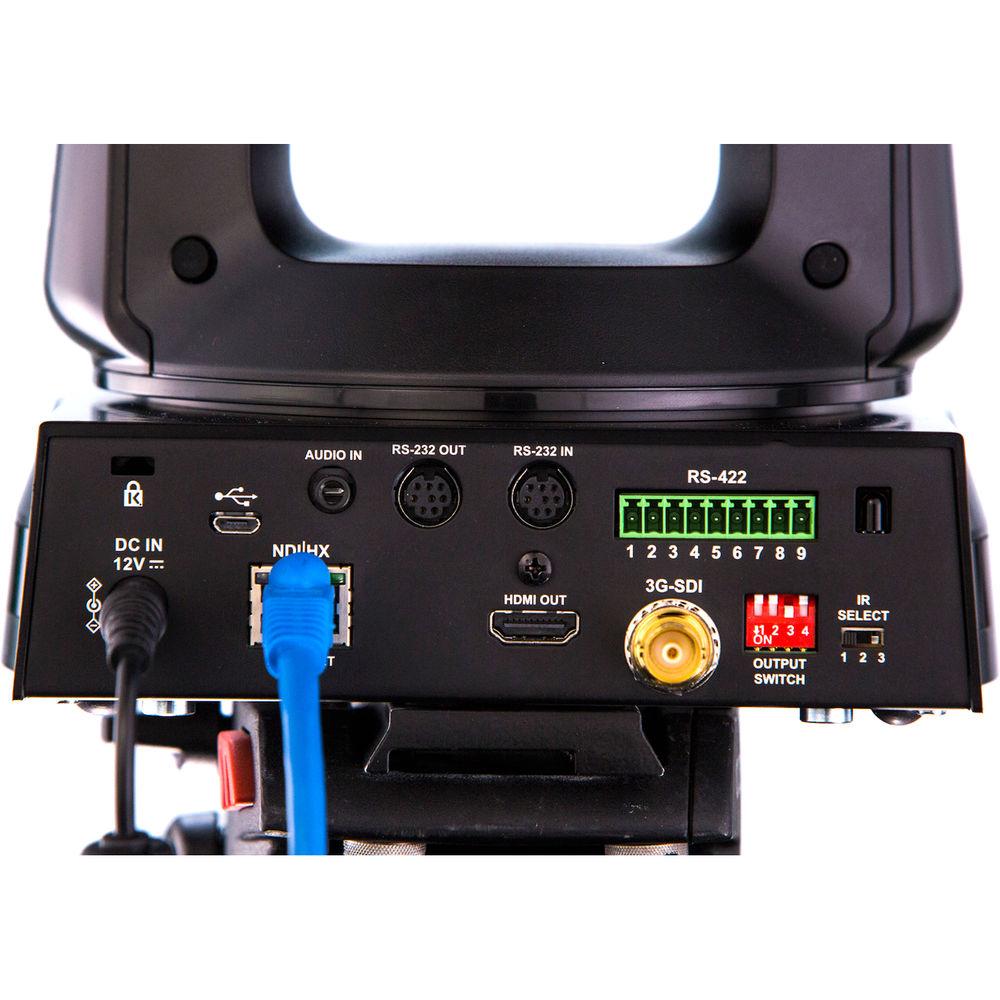

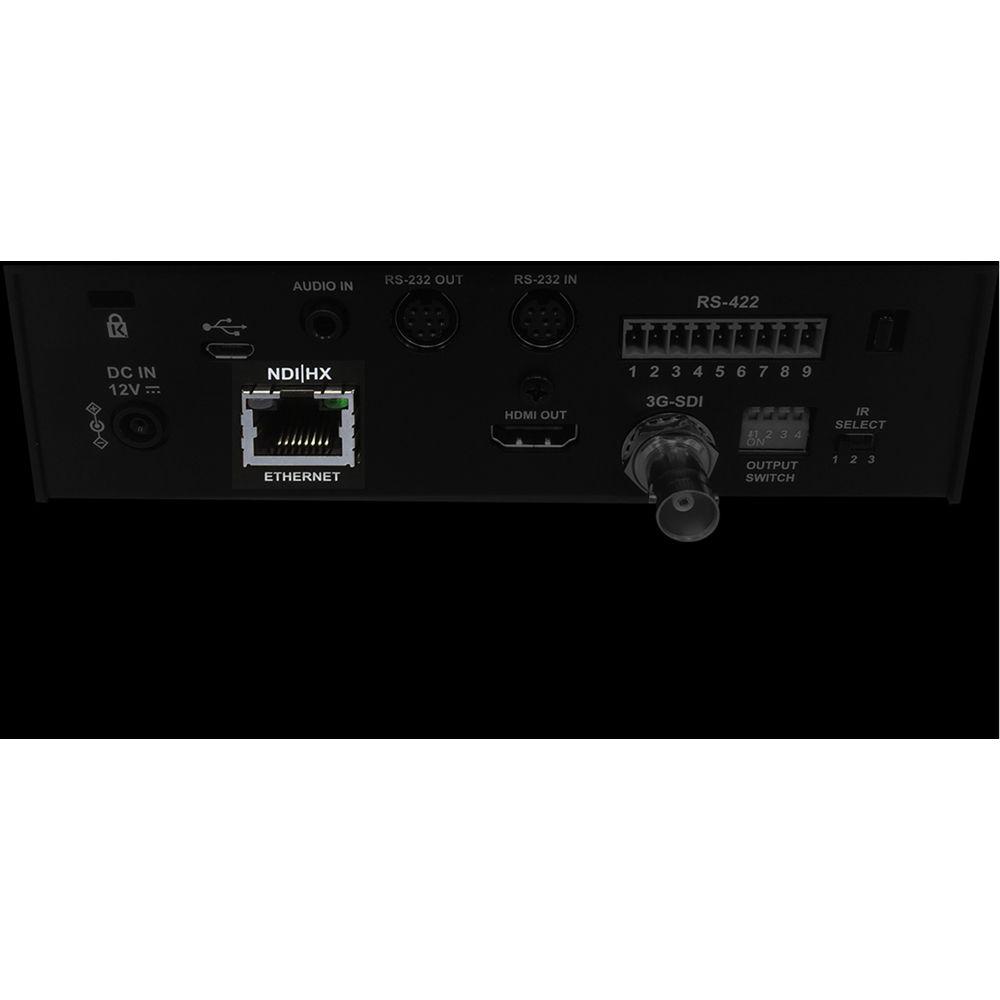

Product description NewTek Introduces the New NDI PTZ Camera Read More wwduausd Designed for modern production facilities and workflows, the NewTek NDIHX-PTZ1 NDI PTZ Camera combines both standard SDI and HDMI connections as well as Ethernet/NDI network connectivity for HD video streaming, recording, and broadcasting. While full functionality can be achieved through the classic SDI and serial connectors, what differentiates this camera is the NDI connectivity. Using the RJ-45 connector at the rear, the NDIHX-PTZ1 can output HD video and audio while receiving control signal and power over a single connection. Pan, tilt, zoom, recording settings, and more can be adjusted remotely over Ethernet. No need for confusing multi-cable setups, simply install the camera and connect it to your existing network infrastructure to use it alongside your other video sources to expand your studio setup with minimal hassle. Use Cases - Corporate
- Turn an office or meeting room into a remote studio for executive communications, video conferencing, or online training
- Education
- Streamline virtual classroom production, lecture capture, and distance learning for live and on-demand teaching
- Entertainment
- Expand event coverage in-venue and behind the scenes for live streaming, recording, and social video
- Gaming
- Capture the action, emotion, and intensity of competitive gaming and sports from every angle
- Government
- Inform and involve citizens with real-time access to live meetings and community programming
- Professional A/V Integration
- Useful in many video applications, from medical and security installations to weddings and graduations
- Sports
- Enhance the fan experience with unique camera angles or outfit facilities for covering practices and club activities
General Features - Native support for HD video formats up to 1080p 60
- Integrated and automatic tally support via NDI
- Motor-driven pan, tilt, and zoom operation with preset positions
- Remote control and monitoring via web-based user interface
- Remote control over IP via NewTek Studio Monitor
- Remote capture & recording via NewTek Studio Monitor
- Power over Ethernet via PoE+ (802.3at) or included 12 VDC 1A external supply
- Mounting bracket included
- Compatible with professional and prosumer production solutions including NewTek live production systems and third-party video switchers, as well as software-based video tools like Livestream Studio, OBS, Streamstar SW, Telestream Gameshow and Wirecast, VidBlaster, vMix, XSplit, and all other NDI-compatible products Note: NDI version 2 or higher required
- Compatible with popular desktop video applications via NDI|HX driver, including Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more
In the Box NewTek NDIHX-PTZ1 NDI PTZ Camera Power Supply Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek NDIHX-PTZ1 NDI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

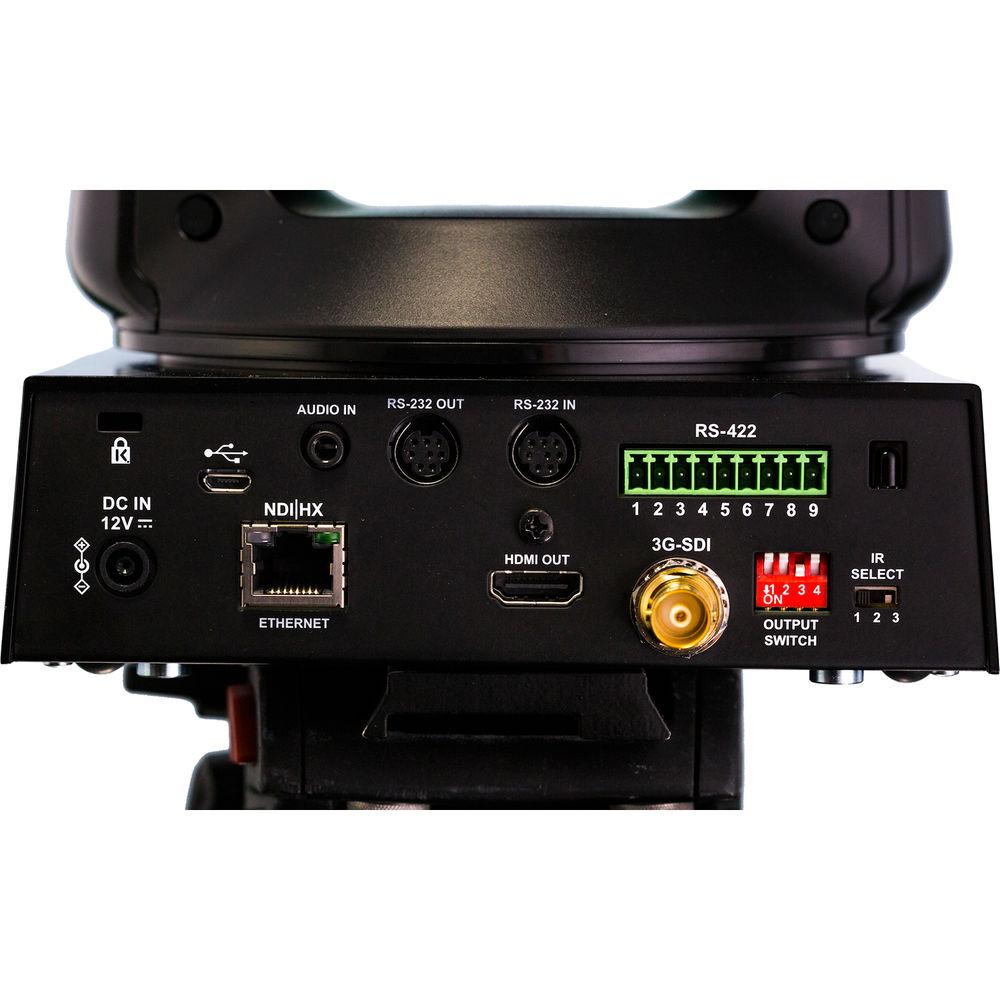

Technical parametersNewTek NDIHX-PTZ1 Specs | Video Output | 1 x RJ-45, NDI|HX, Ethernet
1 x BNC, 3G-SDI
1 x HDMI Type-A | | Video Formats | 1080p 29.97/30/50/59.94/60
1080i 50/59.94
720p 50/59.94/60 | | Lens | Zoom: 20x (optical)
Focal Length: 4.7-94mm
Maximum Aperture: f/1.6-f/3.5 | | Shutter Speed | 1-1/10,000 sec | | Rotation Speed | Maximum: 300°/sec | | Pan Angle | -170 to +170° | | Tilt Angle | -30 to +90° | | Horizontal Viewing Angle | 63° | | Audio Input | 3.5mm stereo line-level | | Tally | Support via NDI|HX | | Focus | Auto, manual | | White Balance | Auto, manual, indoor, outdoor, one-push | | Gain Control | Auto, manual | | Exposure Control | Auto, manual | | Other I/O | 1 x 8-pin DIN, RS-232 input
1 x 8-pin DIN, RS-232 output
1 x 9-pin serial, RS-422
1 x USB micro-B | | Power | Accepts PoE+ (Power over Ethernet 802.3at) or 12 VDC, 1 A from included power supply | | Dimensions | 6.9 x 7.2 x 7.2" / 17.5 x 18.3 x 18.3 cm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 12.4 x 10.7 x 10.5" |
