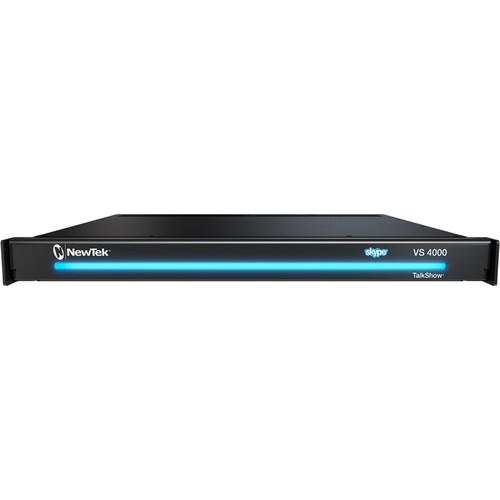

User Manual for NewTek TalkShow VS 4000 Multi-Channel Video Calling System Click to enlarge the picture
Contents of the user manual for the NewTek TalkShow VS 4000 Multi-Channel Video
- Product category: Streaming Media Solutions NewTek
- Brand: NewTek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NewTek Streaming Media Solutions
 |
User manual for the NewTek TalkShow VS 4000 Multi-Channel Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NewTek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NewTek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NewTek product will considerably shorten its lifespan!
|

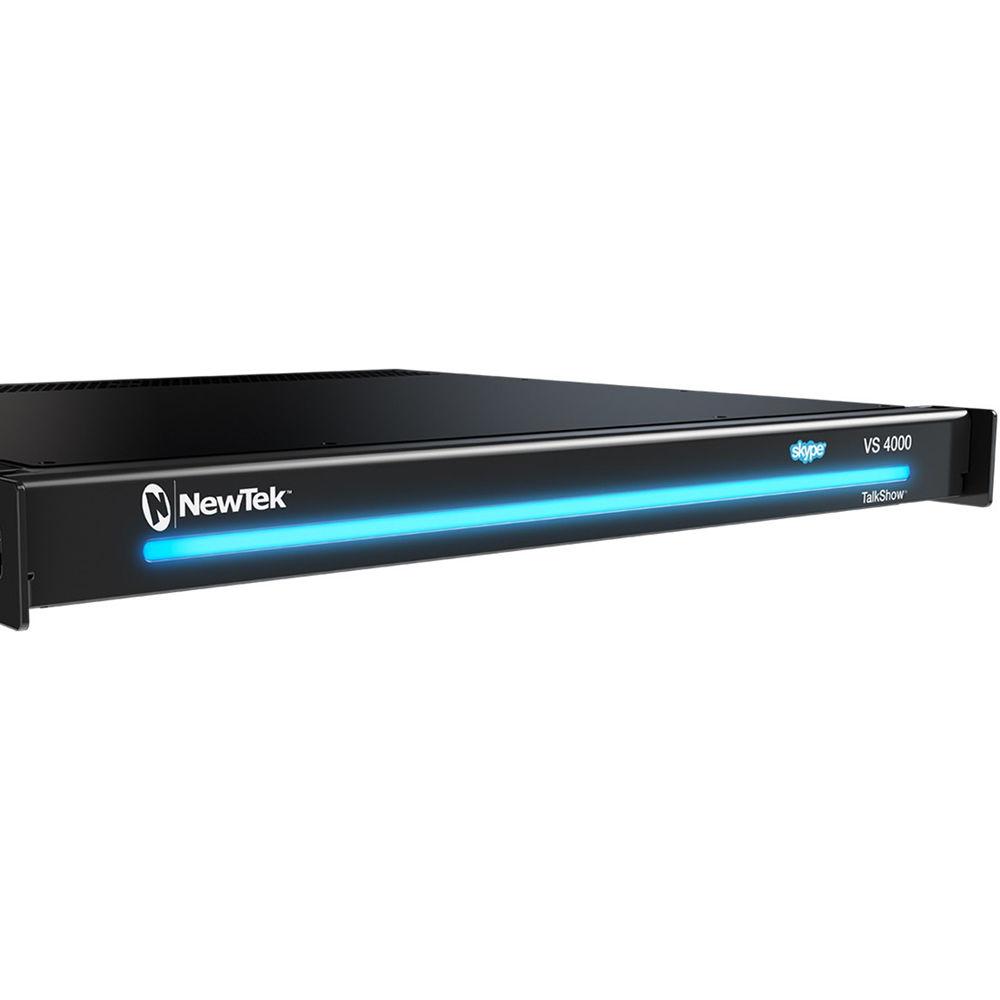

Product description Stretch your talk show studio's footprint to any corner of the earth that has an internet connection with the NewTek TalkShow VS 4000 Multi-Channel Video Calling System. Simultaneously include up to four guests in real time over Skype to include in your show with minimal latency and up to full-HD quality. SDI connectivity can be used to integrate the VS 4000 into a professional broadcast infrastructure, while NDI and Dante compatibility can take advantage of NewTek's video and audio over IP. Each incoming video feed can be adjusted separately, for look and sound, before it's output over SD/HD-SDI or IP to broadcast specification. Return video is also processed to ensure that a clean feed will appear on the participants' Skype-enabled devices. All adjustments to video and audio are done "in the box" and in real time using the internal powerful computing hardware. Despite the powerful hardware, everything is enclosed in a single RU space, including the power supply, for easy mounting in a standard equipment rack. - Independent Control Interfaces
- Easily set up a multi-operator production workflow, with separate interfaces for call and production management. Skype TX Control software can be operated from the TalkShow VS 4000 system or installed on another machine as a standalone call control center, allowing the producer to manage calls and talent, while a production operator handles video and audio.
- Group or Queue Callers
- Connect with any combination of guests from around the world simultaneously or in sequence, for compelling live conversation, expert analysis, real-time commentary, and in-depth discussion.
- IP Networking

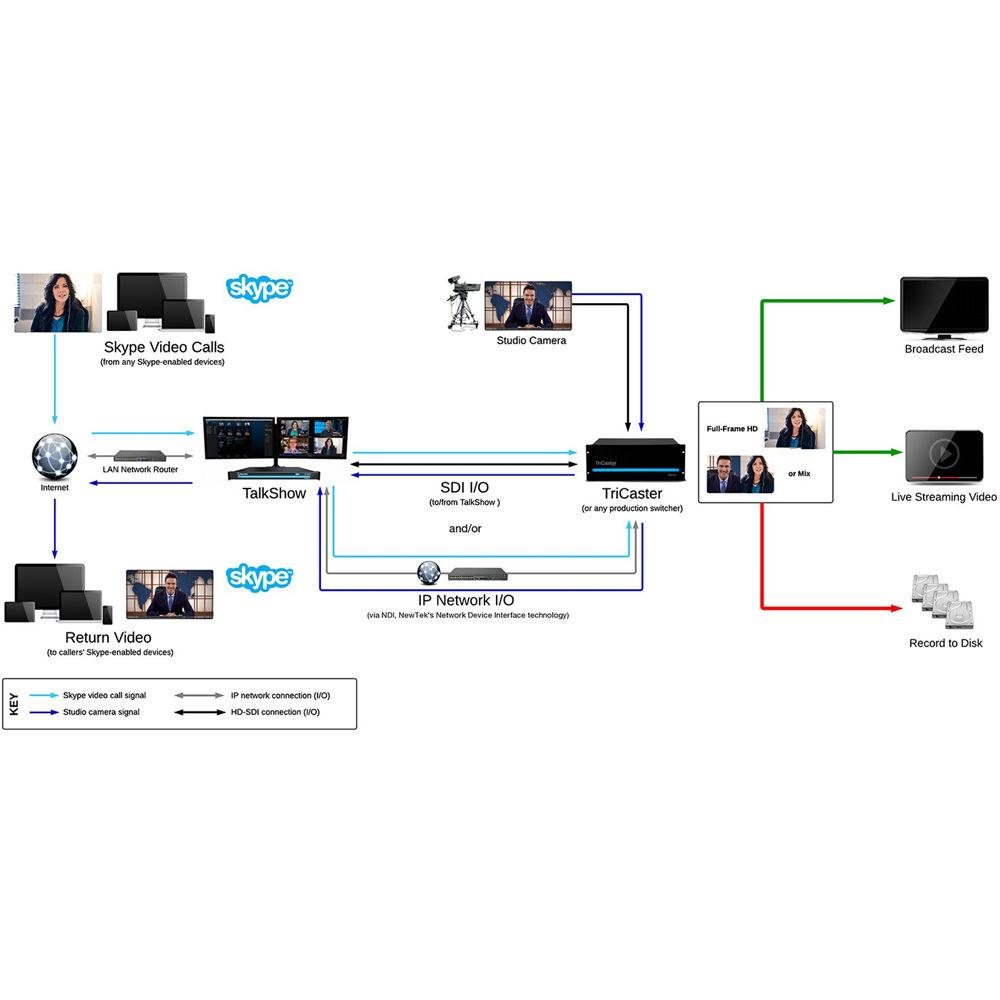

- Receive video calls over IP anywhere on your network. Built-in NewTek NDI technology allows routing of Skype video calls to any compatible NDI receiving device (including TriCaster and 3Play) while enabling selection of any NDI video source for return to caller over the network.
- Advanced Audio Control
- Independently adjust incoming and outgoing audio signals for the highest-quality sound, with the only video calling system that offers built-in gain control, graphic equalizer, compressor/limiter, and noise gate settings.
- High Quality Live Video
- Ensure your guests look as good as they sound, with enhanced real-time image processing and fully configurable correction tools, including proc amp controls, auto-color settings, and white balance. Video going back out to the caller is deinterlaced for a clean return signal.
- Real-Time Call Monitoring

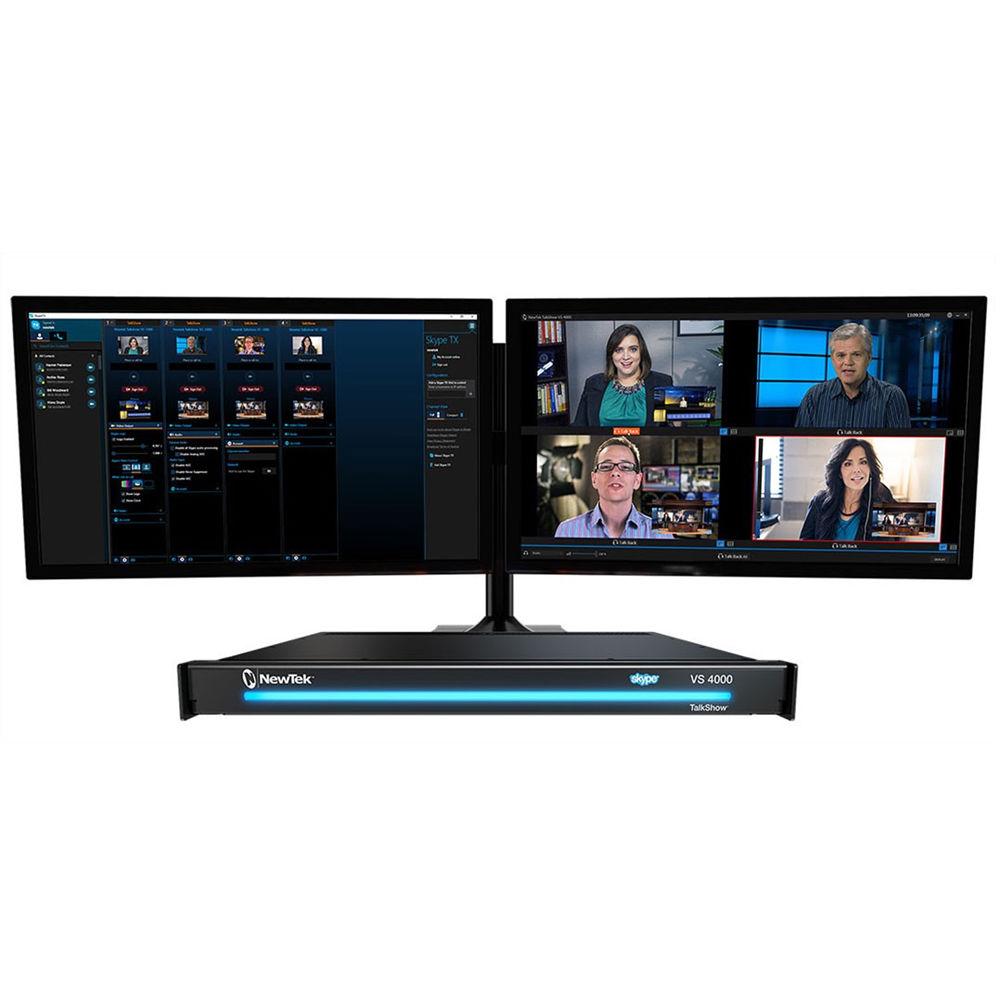

- Conduct every call with confidence, by utilizing high-quality, full-motion video previews, accurate on-screen audio VU meters, and selectable multi-view display layouts with configurable monitor overlays.
- General Features
-
- Call quality monitoring
- Skype watermark overlay (can be turned on or off)
- Automatic failover to customizable still image
- Waveform monitor
- Vectorscope
- Genlock
- Tally
In the Box NewTek TalkShow VS 4000 Multi-Channel Video Calling System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NewTek TalkShow VS 4000 Multi-Channel Video Calling System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNewTek TalkShow Specs | Video Inputs | 4 x SDI | | Video Outputs | 4 x SDI
1 x HDMI direct monitor output | | Audio Inputs | 4 x embedded SDI audio
2 x XLR (line level) | | Audio Outputs | 4 x embedded SDI audio
2 x XLR (line level)
1 x 1/4" stereo headphone jack | | Networking | NDI, Dante | | Resolution Support | SDI Output:
1080p 23.98/24
1080i 25/29.97/30
720p 50/59.94/60
NTSC
PAL
SDI Return:
1080p 24/25/30
1080PsF 24/25/30
1080i 25/29.97
720p 24/25/30
NTSC
PAL | | Tally | Hardware: HD15 GPI
Network: NDI | | Hardware | CPU: 4th gen quad-core Intel Core i7
Graphics: Intel HD4600
Memory: 8 GB
Storage: 120 GB SSD | | Processing | Video: 4:4:4:4, 32-bit floating point
Audio: 4 channels, 32-bit floating point, 96 kHz | | Standards | HD-SDI: SMPTE 292M
SD-SDI: SMPTE 259M | | Network | 2 x Gigabit Ethernet | | Power Supply | 12 VDC, 180 W | | Dimensions | 19 x 16.75 x 1.75" / 483 x 425 x 45 mm (with rack ears)
1 RU | | Weight | 15 lb / 6.8 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 25.0 x 24.5 x 9.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to NewTek TalkShow VS 4000 Multi-Channel Video Calling System
| Subject: question | | Date: 20.04.2022 23:03:22 | Name: Ehab | | when the broadcaster interferes with the skype guest while he is speaking , the guest does not hear the broadcaster intervention | | Post reply |
