User Manual for NextComputing Edge XTi DaVinci Resolve PC Workstation Click to enlarge the picture
Contents of the user manual for the NextComputing Edge XTi DaVinci Resolve PC
- Product category: Video Editing Workstations NextComputing
- Brand: NextComputing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NextComputing Video Editing Workstations
 |
User manual for the NextComputing Edge XTi DaVinci Resolve PC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NextComputing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NextComputing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NextComputing product will considerably shorten its lifespan!
|
Product description Optimized for 4K editing and finishing with DaVinci Resolve, the Edge XTi DaVinci Resolve PC Workstation from NextComputing features an 8-core 3.6 GHz Intel Core i9-9900K processor, 8GB NVIDIA GeForce RTX 2080 graphics card, and 32GB of RAM expandable to up to 64GB. The advanced CPU and video card ensure smooth, real-time 4K playback in Resolve's Edit and Fusion tabs, while the memory allows you to handle large comprehensive projects. The NVIDIA card also provides the GPU power to process real-time effects and transcoding. For even more powerful performance, a second PCIe expansion slot is available in the compact mid-tower case for adding another graphics card.
For storage, the workstation has a 1TB Samsung 970 EVO Plus NVMe M.2 SSD. Additionally, optional 2.5 or 3.5" hard drives can be installed into the internal storage bays. A wide array of connections includes two Thunderbolt 3 ports, which offer a bidirectional 40 Gb/s data rate. The Thunderbolt ports support daisy-chaining and provide a neat and simple way of attaching I/O devices, external storage drives, and various other products.
For network and peripheral connectivity, the Edge XTi is equipped with two GbE Ethernet ports, built-in Wi-Fi, and Bluetooth. The system comes with Windows 10 preinstalled and a Logitech USB keyboard and mouse included, letting you get started right out of the box. - Key Features
-
- Optimized for 4K editing and finishing with Blackmagic DaVinci Resolve
- Compact mid-tower case with silent fans, liquid cooled processor
- 8-core 3.6 GHz Intel Core i9-9900K CPU
- NVIDIA GeForce RTX 2080 8GB GDDR6 graphics
- 32GB DDR4 2666 MHz RAM, expandable to 64GB
- 1TB Samsung NVMe SSD
- Two Thunderbolt 3 40 Gb/s ports
- Two GbE Ethernet ports, built-in Wi-Fi, and Bluetooth
- Windows 10
- USB keyboard and mouse
In the Box NextComputing Edge XTi DaVinci Resolve PC Workstation MK200 Media Combo Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NextComputing Edge XTi DaVinci Resolve PC Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNextComputing NC-EXTI-DVR1 Specs | | | Processor | Intel Core i9-9900K 3.6 GHz 8-Core (16 Threads) | | Base Clock Speed | 3.6 GHz | | Max Boost Speed | 5 GHz | | L3 Cache | 16 MB | | System Bus | 8 GT/s DMI3 | | Chipset | Socket: LGA 1151
Type: Intel Z390 | | Total Installed Memory | 32 GB | | Maximum Memory Capacity | 64 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2666 MHz | | User-Replaceable Memory | 4 x DIMM 288-Pin | | Available Memory Slots | 2 | | Graphics Type | Dedicated | | Graphics Card | NVIDIA GeForce RTX 2080
CUDA Cores: 2944
GPU Memory: 8 GB GDDR6 RAM
Memory Interface: 256-Bit
Output: Up to 4 Concurrent Displays | | | | Hard Drive | Bays:
2 x 3.5"
2 x 2.5"
2 x M.2 SATA/PCIe
Installed: 1 TB Samsung 970 EVO Plus NVMe M.2 SSD | | Optical Drive | None | | Drive Expansion | None | | PCI Expansion | 1 x PCIe 3.0 x16 (x16 or x8)
1 x PCIe 3.0 x16 (x8)
1 x PCIe 3.0 x16 (x4)

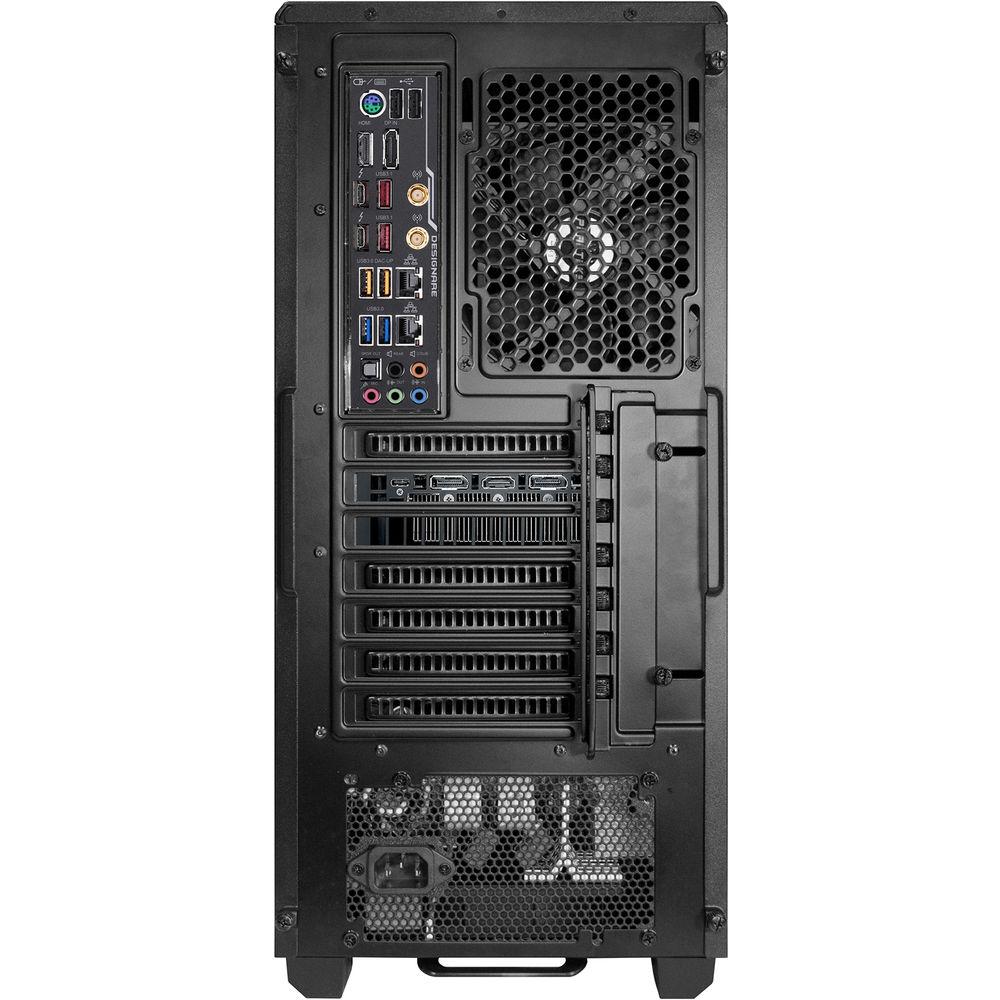

2 x PCIe 3.0 x1 | | | | Ports | Rear I/O:
1 x PS/2 Keyboard/Mouse Port
1 x DisplayPort Input (for Thunderbolt Displays)
1 x HDMI (Integrated Intel Graphics Output Only)
2 x SMA Wi-Fi Antenna Connectors (2T2R)
2 x USB 3.1 Gen 1 Type-A
2 x Thunderbolt 3 (USB Type-C Ports with USB 3.1 Gen 2 Support)
4 x USB 3.0
2 x USB 2.0
2 x RJ-45
1 x Optical S/PDIF Output
5 x Audio Jacks (Center/Sub-Out, Rear-Out, Line-In, Line-Out, Mic-In) | | Display | 2 x HDMI 2.0b
2 x DisplayPort 1.4
1 x USB Type-C | | Audio | Realtek ALC1220-VB 7.1 Channel HD Audio | | Flash Media Slot | None | | | | Network | 2 x 10/100/1000 Mb/s GbE Ethernet (RJ-45) | | Wi-Fi | Intel CNVi Interface 802.11a/b/g/n/ac, Supporting 2.4/5 GHz Dual-Band | | Bluetooth | Bluetooth 5 | | | | Keyboard | Full-Size USB Keyboard with Numeric Keypad | | Mouse | USB Mouse | | | | Operating System | Windows 10 Pro (64-Bit) | | Power Supply | 750 W 80 PLUS Gold, 90% Efficiency | | Dimensions | 18.3 x 8.3 x 18.5" / 46.5 x 21 x 47 cm | | Weight | 25 lb / 11.3 kg | | | | Package Weight | 15.38 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 14.0" |
