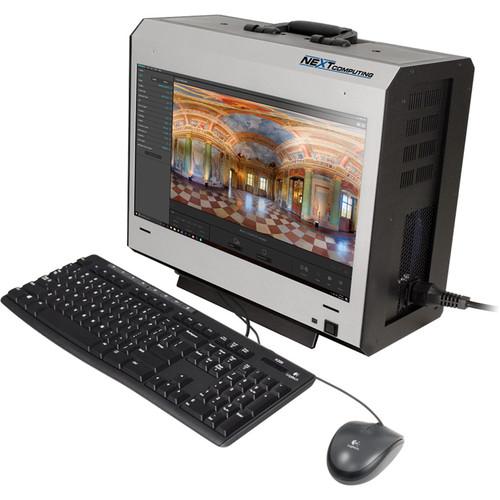

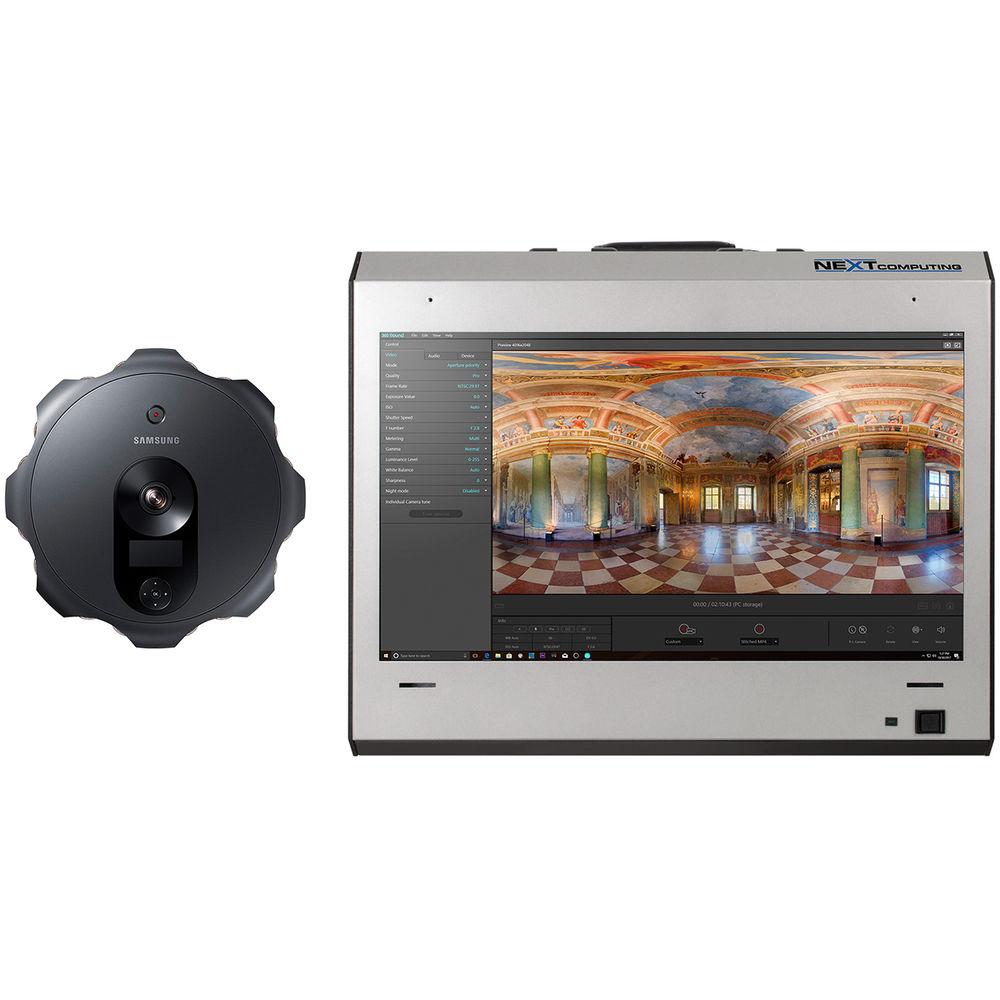

Product description 5 Essential Tips for Cleaning Your Gadgets Read More Designed with support from Samsung, the Radius Live Mobile Live Streaming Workstation from NextComputing will capture, stitch, record, and live stream the 360 Round with minimal latency and no dropped frames. Well suited for traveling and doing location work, the Radius Live comes pre-configured with Samsung 360 Round and 360 Round Viewer software installed.
The Radius Live is powered by a 3.6 GHz Intel Core i7-7820X eight-core processor, which features a maximum boost speed of 4.3 GHz. Other hardware features include 32GB of 2666 MHz DDR4 RAM, an integrated 17.3" 1920 x 1080 display, a 500GB NVMe PCIe M.2 SSD, dual NVIDIA GeForce GTX 1080 Ti graphics cards with 11GB of discrete GDDR5X video memory each, dual Gigabit Ethernet ports for dedicated 360 Round ingesting and streaming output, dual-band 802.11ac Wi-Fi, and Bluetooth 4.1. As an optional extra, the system can be configured with dual 6G-SDI outputs for stereoscopic 3D 4K output at up to 2160p30 per channel.
NextComputing's Radius Live includes a Logitech MK200 USB wired mouse and multimedia keyboard. The installed operating system is Windows 10 Pro (64-bit). Also available as an optional extra is a padded carrying case or ruggedized hard case. - General Features
- The Radius Live comes pre-configured with features you need to be broadcasting in minutes, including:
- Samsung 360 Round and 360 Round Viewer software installed
- Integrated 17.3" Full HD 1920 x 1080 display
- 3.6 GHz Intel Core i7-7820X eight-core processor
- 32GB of 2666 MHz DDR4 memory, which can be upgraded to 128GB
- 500GB NVMe PCIe M.2 SSD
- Dual NVIDIA GeForce GTX 1080 Ti graphics cards for real-time processing, each with 11GB of GDDR5X video memory
- Three DisplayPort 1.4 outputs and one HDMI 2.0b output
- A USB 3.1 Gen 2 Type-C port, four USB 3.1 Gen 2 Type-A ports, four USB 3.1 Gen 1 Type-A ports, and a PS/2 port
- Dual Gigabit Ethernet ports for dedicated 360 Round ingesting and streaming output
- Dual-band 802.11ac Wi-Fi and Bluetooth 4.1
- USB wired keyboard and mouse
- Optional padded carrying case or ruggedized hard case
- Optional dual 6G-SDI outputs for stereoscopic 3D 4K output up to 2160p30 per channel
In the Box NextComputing Radius Live Mobile Live Streaming Workstation for Samsung 360 Round Samsung 360 Round Software Samsung 360 Round Viewer Software MK200 Media Combo Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the NextComputing Radius Live Mobile Live Streaming Workstation for Samsung 360 Round in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

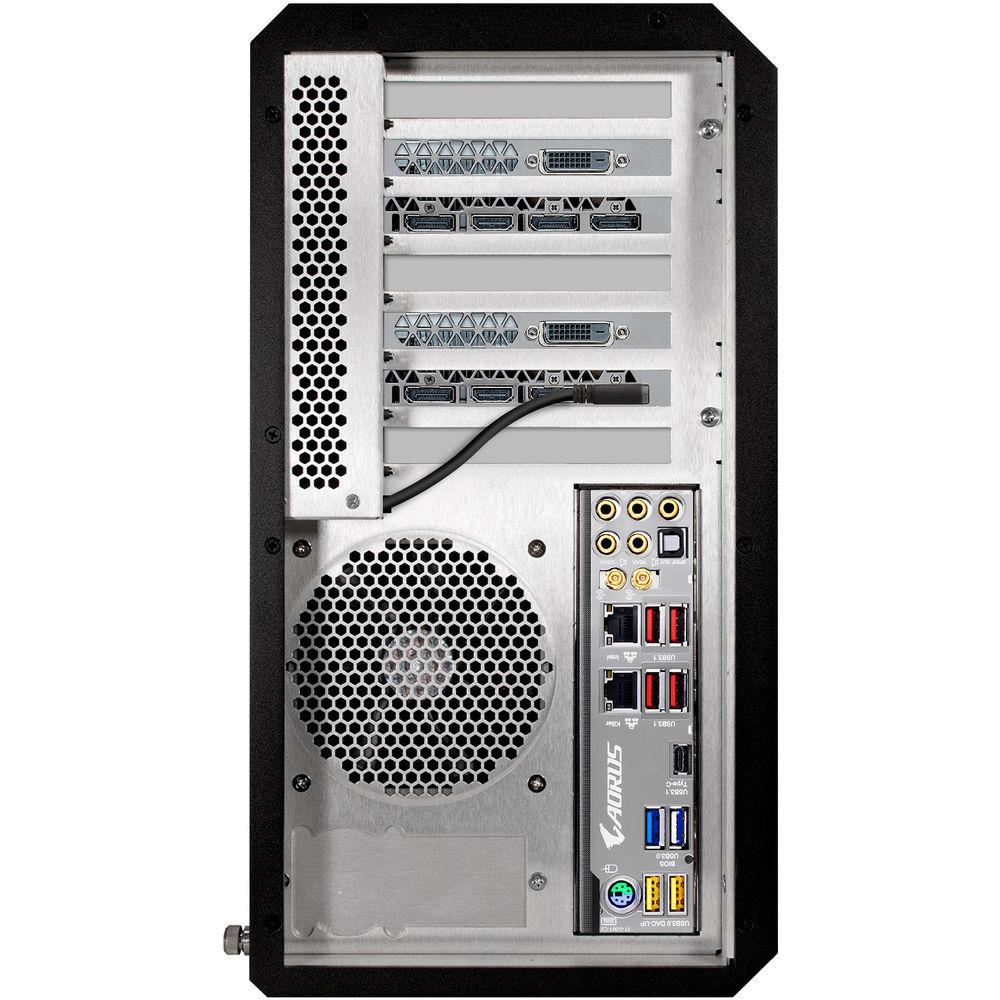

Technical parametersNextComputing Live Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel X299 | | CPU Socket | LGA 2066 | | CPU | 3.6 GHz Intel Core i7-7820X 8-Core | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 11 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 32 GB | | Memory Configuration | 4 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 128 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 4 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | 2 x NVIDIA GeForce GTX 1080 Ti with 11 GB GDDR5X VRAM | | | | Panel Type | Unspecified LCD | | Size | 17.3" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | | | Total Drive Bays | 6 x 2.5" (Internal) | | SSD Slots | 3 x M.2 (Available) | | Solid State Storage | 1 x 500 GB M.2 NVMe PCIe | | PCI Expansion | 3 x PCIe Gen 3 x8 (x16 Mechanical)
2 x PCIe Gen 3 x4 (x16 Mechanical) | | Optical Drive | None | | | | Ports | 1 x PS/2
4 x USB Type-A (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 | | Display | 6 x DisplayPort 1.4
2 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Microphone Input
1 x TOSLINK S/PDIF Output
3 x 1/8" / 3.5 mm Line Output | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.1 | | Webcam | None | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 850 W | | Dimensions | 16.8 x 14.2 x 7.1" / 42.7 x 36.1 x 18 cm | | Weight | 25 lb / 11.3 kg |
